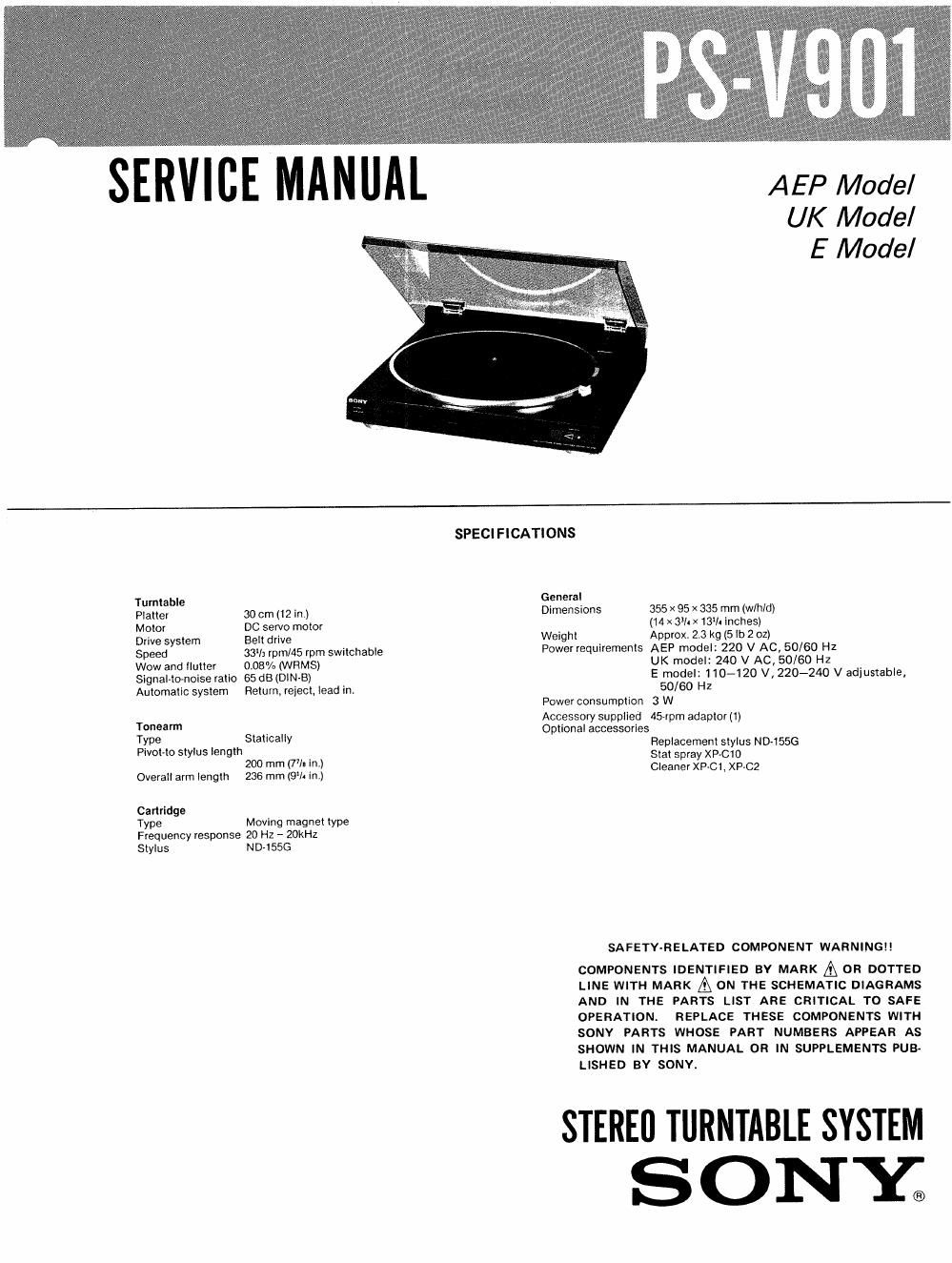

Sony ps v 901 service manual

Page 2

PS-V901

SECTION 1
GENERAL

MODEL IDENTIFICATION LOCATION AND FUNCTION OF CONTROLS
- Specification Label -

SONYo MODEL No. PS-V901
STEREO TURNTABLE SYSTEM

WW

45-rpm Adaptor

AEP model: AC 220 v 50/60 Hz 3 w 2 SPEED "2
UK model: AC 240 V 50/60 Hz 3 W [E Droo pointadjustment hoIe
E} Cuemg Iever(!/!)
E model: AC 110-120/220-240 V 50/60 HZ 3 W E Tonearm
IE Armrest

IE SIZE SELECTOR

IE <(stantlltslop) button
[EB Center spindle

Rubber mat

[E POWER button

IE Cartridge

Drop-point Adjustment

The tonearm drop-point during auto play has been factoryA
adjustedt If necessary, readjust it as tollows.

To move the drop-point toward A, turn the adjustment screw
c|ockwise with a screwdriver.

To move the drop-point toward 8, turn the adjustment screw
countercIockwise with a screwdriver.

- LOOK at arm rest,

SECTION 2
ADJUSTMENT

Speed Adjustment Adjustment Location:

Note: Be sure to perform 45-rpm adjustment before 45-rpmr

1. Put a stroboscope board on the man

24 Set the SPEED switch to 45.
Depress the lifter knob to make a lift-up mode and move
the arm above to the outer most groove of a record
Adjust RVI so that the striped pattern of stroboscope
board is stationary.

3. Set the SPEED switch to 33,
Adjust RV2 in the same way.
