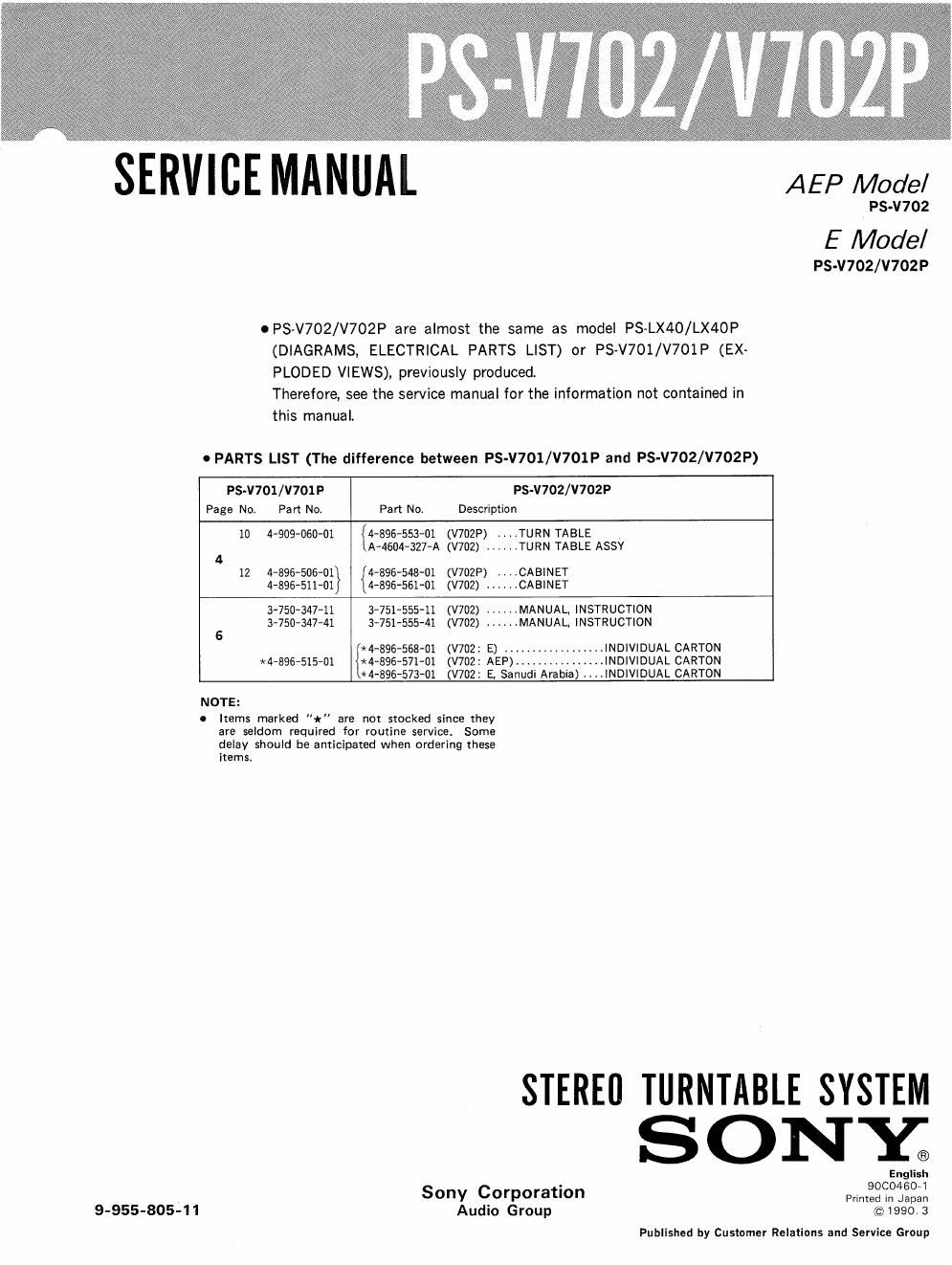

SERVICEMANUAL ' MM

PS-V702

E Model

PS-V702/V702P

OPS-V702/V702P are almost the same as model PS-LX40/LX40P
(DIAGRAMS, ELECTRICAL PARTS LIST) or PS-V701/V701P (EX-
PLODED VIEWS), previously produced.

Therefore, see the service manual for the information not contained in
this manual.

0 PARTS LIST (The difference between PS-V701/V701P and PS-V702/V702P)

PS-V701/V701P PS-V702/V702P
Page No. Part No, Part No Description
10 4-909-060~01 {4~896-553-01 (V702P) ....TURN TABLE
A-4604-327-A (V702) ...... TURN TABLE ASSY
4
12 4-896-506-01 4-896-548-01 (V702P) t. . ICABINET
4-896-511-01 4-896-561~01 (V702) ...... CABINET
3*750-347-11 3-751-555-11 (V702) ...... MANUAL, INSTRUCTION
3-750-347-41 3-751-555-41 (V702) ...... MANUAL, INSTRUCTION
6
*4-896-568-01 (V702: E) ....... HINDIVIDUAL CARTON
*4-896-515-01 *4-896-571-01 (V702: AEP). INDIVIDUAL CARTON
*4-896afi73-01 (V702: E, Sanudi Arabla) ...,INDIV|DUAL CARTON
NOTE:

0 Items marked "~k" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these

Items.
STEREI] TURNTABLE SYSTEM
S ONY;
English
Sony Corporation primggcigiggél
9-955-805-11 Audio Group ©1990,3

Published by Customer Relatlons and Service Group
