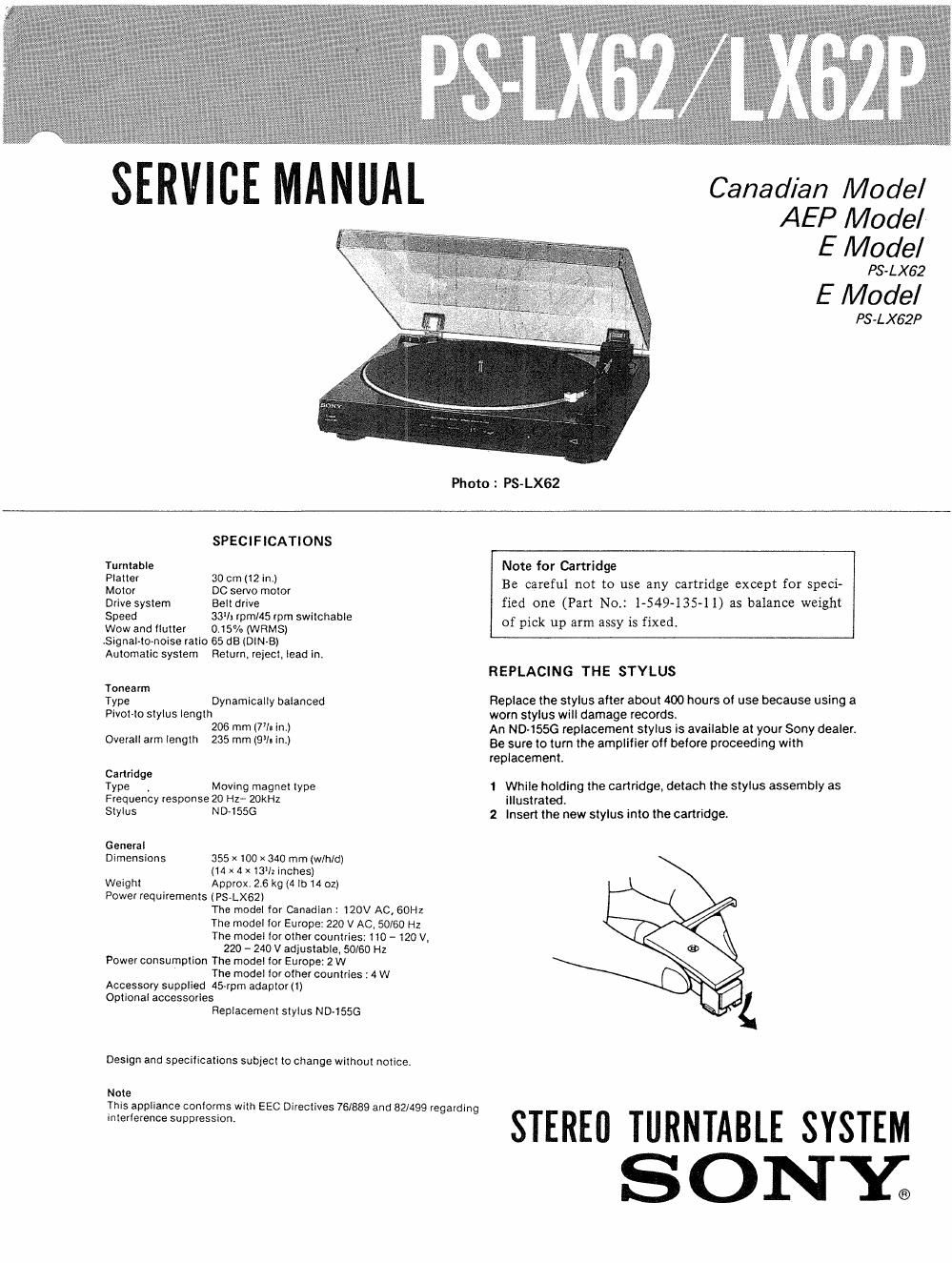

Page 1

SERVICE MANUAL Canadian Model

AEP Model
E Model

PS-LX62

E Model

PS-LXEZP

Photo : PS-LX62

SPECIFICATIONS

Turntable Note for Cartridge

Plalter 30cm(12in.) . e e f e _
Motor DC servo motor Be careful not to use any cartndge xc pt or so c1
Drive system Bell drive fled one (Part No.: 1-549-135-11) as balance weight
Speed 33lirpml45 rpm switchable . 4 .

Wow and llutler 0.15% (WRMS) °fp1°k up arm assy 5 fixad'

.Signal-to-noise ratio 65 dB lDlN~B)
Automatic system Return, reject, lead in.

REPLACING THE STYLUS

Tonearm .
Type Dynamically balanced Replace the stylus after about 400 hours of use because using a
Pivot-to stylus length worn stylus will damage records.

206 mm (771- in.) An ND-lSSG replacement stylus is available at your Sony dealer.
Overall aim lenglh 235 mm (9' "«i Be sure to turn the amplifier oil before proceeding with

replacement.

Cartridge .
Type , Moving magnet type 1 While holding the cartridge, detach the stylus assembly as
Frequency response 20 H2v ZOkHz illustrated.
Stylus ND>1555 2 Insert the new stylus into the cartridge.
General
Dimensions 355 x 100 x 340 mm (win/d)

(14 x 4 x 13% inches)
Weight Approx. 2.6 kg (4 lb 14 oz)

Power requirements (PS-LX62)
The model for Canadian: 120V AC, 60HZ
The model lor Europe: 220 V AC, 50/60 Hz
The model lor other countries: 110 - 120 V,
220 - 240 V adjustable, 50/60 Hz
Power consumption The model tor Europe: 2 W
The model tor other countries : 4 W
Accessory supplied 45mm adaptoru)
Optional accessories
Replacement stylus ND-155G

Design and specifications subject to change without notice.

Note
This appliance conlorrns with EEC Directives 76/889 and 82/499 regarding

STEREO TURNTABLE SYSTEM
SONY;
