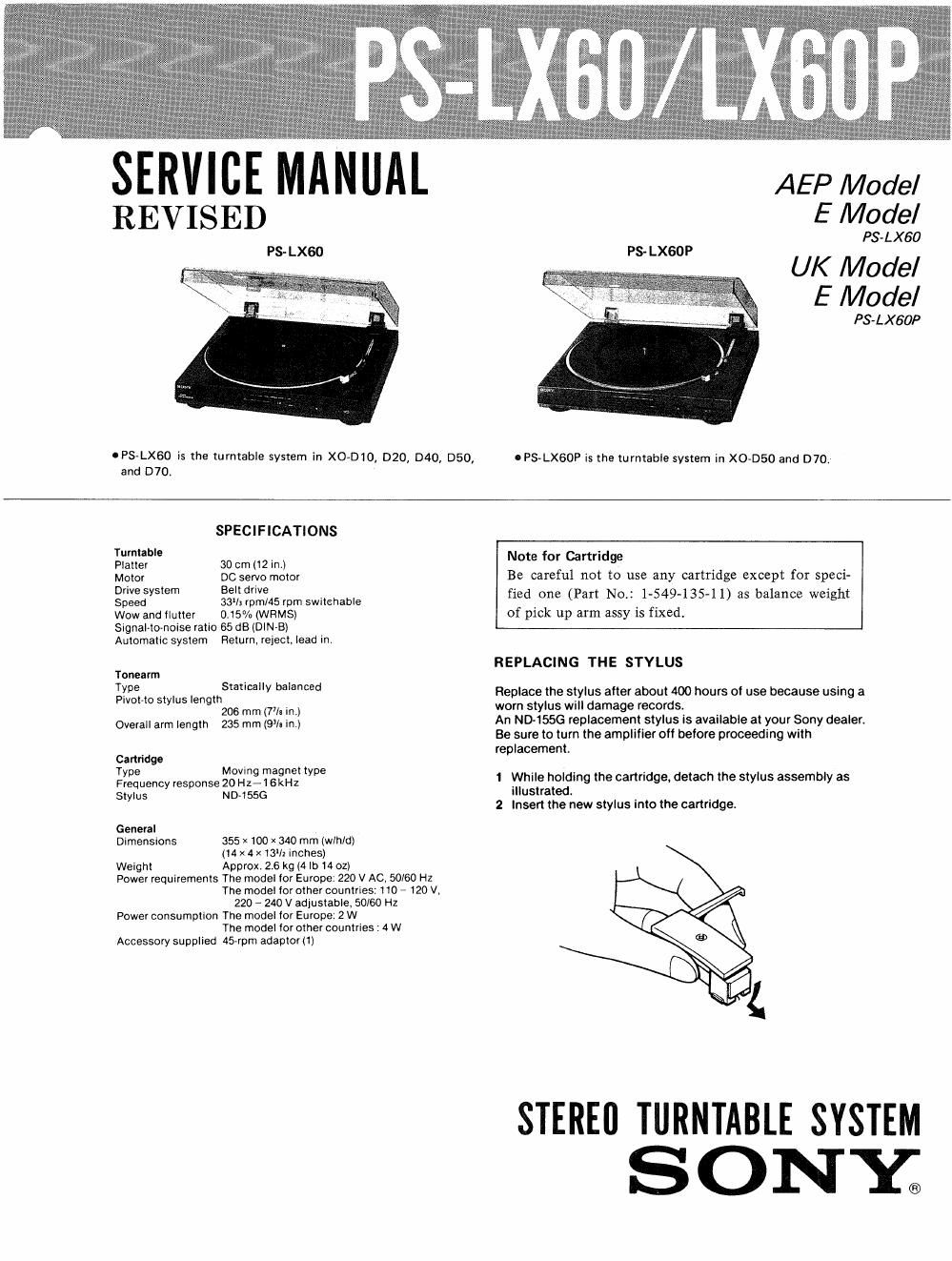

SERVICE MANUAL

REVISED

PS~ LX60

OPS-LXGO is the turntable system in XO-D10, 020, D40, D50,
and D70.

AEP Model
E Model

PS-LXBD

UK Model
E Model

PS-LXbDP

Ps- LX60 P

o PS-LXGOP is the turntable system in XO-D50 and D70

SPECIFICATIONS
Turntable
Platter 30 cm (12 in.)
Motor DC servo motor
Drive system Belt drive
Speed 331/: rpm/45 rpm switchable

Wow and flutter 0.15% (WRMS)
Signal-to-noise ratio 65 dB (DIN-B)
Automatic system Return, reject, lead in,

Tonearm

Type

Pivot-to stylus length
206 mm (77/: in.)

Overall arm length 235 mm (9% in)

Statically balanced

Cartridge

Type Moving magnet type

Frequency response 20 Hz-16kHz

Stylus mouse

General

Dimensions 355 x 100 x 340 mm (w/hld)
(14 x A x 131/: inches)

Weight Approx. 2.6 kg (4 lb 14 02)

Power requirements The model for Europe: 220 V AC, 50/60 Hz
The model for other countries: 110 7120 V,
220 - 240 V adjustable, 50/60 Hz
Power consumption The model for Europe: 2 W
The model tor other countries : 4 W
Accessory supplied 45mm adaptor (1)

Note for Cartridge

Be careful not to use any cartridge except for speci-
fied one (Part No.: 1-549-13541) as balance weight
of pick up arm assy is fixed.

REPLACING THE STYLUS

Replace the stylus after about 400 hours of use because using a
worn stylus will damage records.

An ND-155G replacement stylus is available at your Sony dealer
Be sure to turn the amplifier off before proceeding with
replacement.

1 While holding the cartridge, detach the stylus assembly as
illustrated.
2 Insert the new stylus into the cartridge.

STEREll TURNTABLE SYSTEM
SONY;
