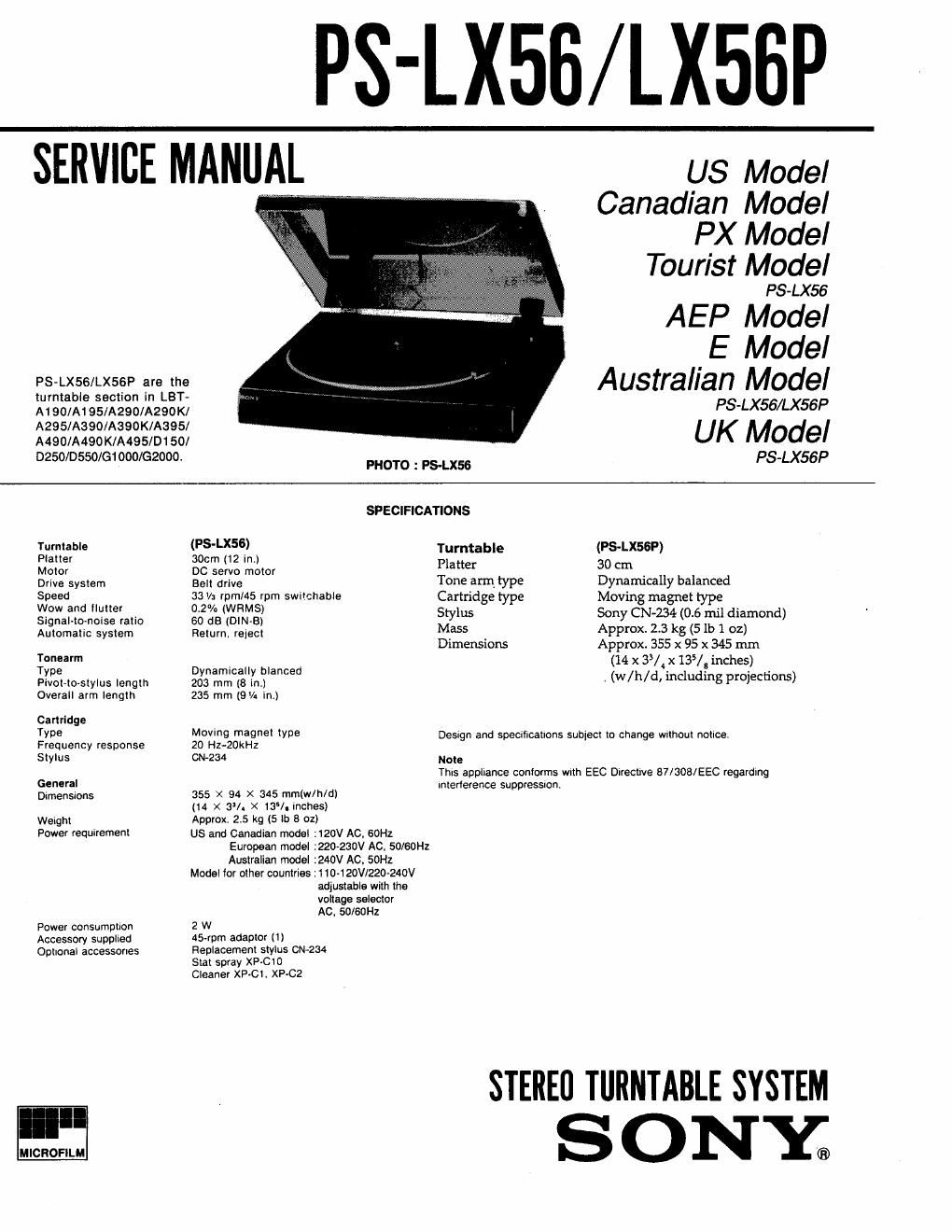

Sony ps lx 56 p service manual

Page 2

Connections

Note
Connect the red plug to the right-channel jack (R),
and the white plug to the left-channel jack (L).

to a wall outlet

a une prise murale

a una toma de la red
para uma tornada da rede

j . ,, (Rear) W (PS-LXSG)
'~ (Arriére)

(Parte posterior) (PSALX56P)

Stereo deck re eiver
Ampll-tuner-magnetocassette
Receptor/deck estéreo
Gravador receptor estéreo

(Parte posterior)

Notes on installation

- Place the turntable on a level surface.

- Avoid placing the unit near electrical appliances
(such as a television, hair dryer, or fluorescent
lamp) which may cause hum or noise.

- Place the turntable where it will not be subieot to
any vibration, such as from speakers, slamming of
doors, etc.

- Keep the unit away from direct sunlight, extremes
of temperature, and excessive dust and moisture.

To remove the dust cover [3

Open the cover fully and pull it up.

Location of Controls

',
a _ J

Nata
Conecte Ia clavija roja a la toma del canal derecho
(R), y la blanca a la del canal izquierdo (L)

Elm-rpm adaptor
IZICentre spindle
EPOWER switch (PS-LX56)
ECueing lever
EITonearm

.Armrest

.Cartridge

.HEJECT button
.Speed selector
