Sony ps lx 55 mk2 service manual

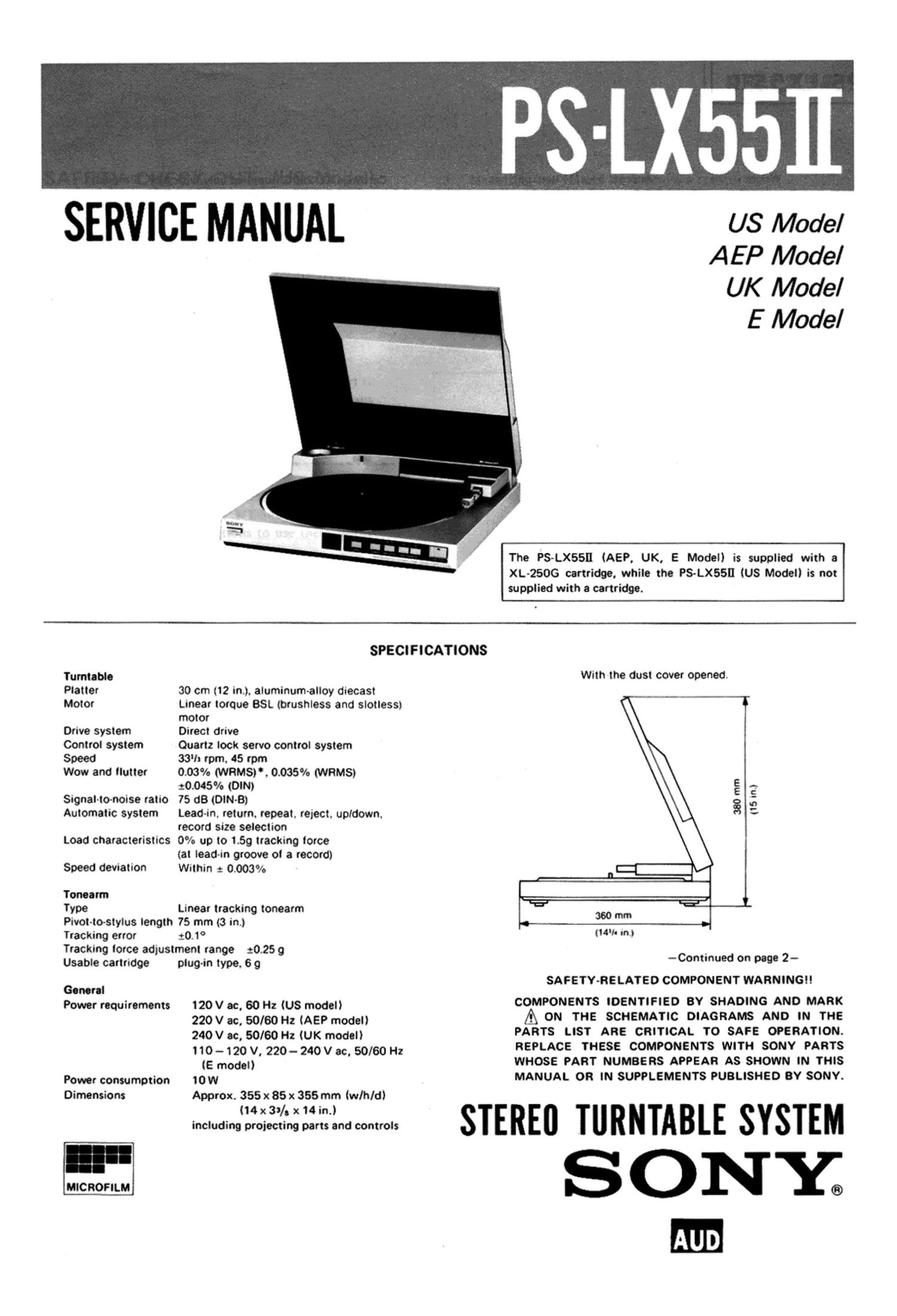

Page 1

1 PS-LX55

SERVICE MANUAL US Model

AEP Model
UK Model
E Model

fit

- m I! - j"
The PS-LXSSII (AEP, UK, E Model) is supplied with a
XL-ZSOG cartridge, while the PS-LXSSII (US Model) is not

supplied with a cartridge.

SPECIFICATIONS

TurntabIe With the dust cover opened.
Platter 30 cm (12 in.). aluminum-alloy diecast
Motor Linear torque BSL (brushless and slotlessl

motor
Drive system Direct drive
Control system Quartz lock servo control system
Speed 33% rpm, 45 rpm
Wow and llutler 0.03% MRMS). 0.035% (WRMS)

20.04504. (om) g ;
Signal-tortoise ratio 75 d8 (DIN-B) § .3
Automatic system Lead-in, return. repeat. reject. upldown. 3

record size selection
Load characteristics 0% up to 1.59 tracking Iorce

(at lead-in groove oI a record)
Speed deviation Within 2 0.003% n
Tonearrn
Type Linear tracking tonearm " 360 mm i-J
Pivot-tostylus length 75 mm (3 in.) a: a
Tracking error :0.1° (wr- '"

Tracking Iorce adjustment range 20.25 g

Usable cartridge plug-in type. 6 9 -Continued ° page 2

SAFETY-RE LATED COMPONENT WARNING

Ge rel
p03; requirements 120v, so; (us mode.) COMPONENTS IDENTIFIED ev SHADING ANO MARK
220Vac.50l60HzIAEP mode A ON THE SCHEMATIC DIAGRAMS AND IN THE
240v3c,5o/50H,(UK mode.) PARTS LIST ARE CRITICAL TO SAFE OPERATION.
110420 v.220-24OVac,so/eo Hz REPLACE THESE COMPONENTS WITH SONY PARTS
(5 mode.) WHOSE PART NUMBERS APPEAR As SHOWN iN THIS
Power consumption 10w MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Dimensions Approx. 355x85x 355 mm lehld)

meldingltotzzé';:3:an.m SIEREII TURNTABLE SYSTEM

"' SONY;
In!

Page 2

Weight Approx. 5 kg (11 lbs 002). net
Approx. 6.1 kg (13 lbs 7 oz), in shipping
carton

Design and specifications Subject to change without notice.

This new meaSuring method concerns only the turntable assembly. in-
cluding the platter. It excludes wow and llutter caused by the tonearm. the
cartridge. or the record Measured by obtaining signal irom magnetic pick-up
head.

Cartridge XL-2EOG (supplied only with AEP, E model)
Type: Moving magnet

Frequency Response: 10 Hz -- 20 kHz

Channel Separation: 23 dB at 1 kHz

Output Voltage: 5 mV at 1 kHz, 5cm/sec., 45°
Load Impedance: 50 kt? - 100 kg

Tracking Force: 1.0 -1.Sg (1.259 recommended)
Stylus: Sony ND-2SOG

Weight: 6 g

COCO-v.DOOOOOOOOO.OOOOOnoooooooooo-OOOOOOOOOO05-0-0-0-tocorO-OOOO*OOo-oO-OO-O-OO-O-OOO-DO

FEATURES

Linear tracking tonearm

Compared with a pivoted tonearm. a linear tracking arm has a very
small tracking error (which means greatly reduced harmonic distor-
tion) and almost no pressure on the inside wall of the groove (which
means improved tracking ability and channel separation).

Front panel operation with the dust cover closed

The ARM TRANSPORT buttons allow you to move the tonearm easi-
ly over the desired point of the record with the dust caver closed.
Startlstop oi the record play and tonearm upidown can also be con-
trolled using the buttons on the lront panel.

Fully automatic system

The movement of the turntable and the tonearm is controlled by a
microcomputer and is activated by the "leather-touch" function
buttons on the tront panel.

Automatic record size selection

The record size is automatically set by a photo sensor system. it no
record is on the turntable. the tonearm will not descend but will
automatically return to the arm rest.

Muting system

A muting system activates when the tonearm is lifted and is deac-
tivated after the tonearm lowers onto a record so there is no need
to turn the amplifier volume down every time a stylus is placed on a
record.

Quartz lock servo system
The turntable maintains an accurate and drill-tree speed by refer-
ring to a frequency generated by a very stable quartz oscillator.

Linear torque BSL motor

Direct drive system with Sony's unique BSL (brushless and
slotless) motor which has an extremely low noise level and whose
smoothness virtually eliminates wow and flutter. Its high torque
assures a quick start to 33 'h rpm after only a halt revolution.

Synchronized operation with the Sony cassette decks

When the tonearm lowers onto the lead-in groove of a record. the
cassette deck stand-by mode is released and the record mode
assumed. This synchronized operation is possible with Sony
cassette decks equipped with a tour-pin remote control jack which
is connected with the Sony FtM-65 synchro remote control unit.
