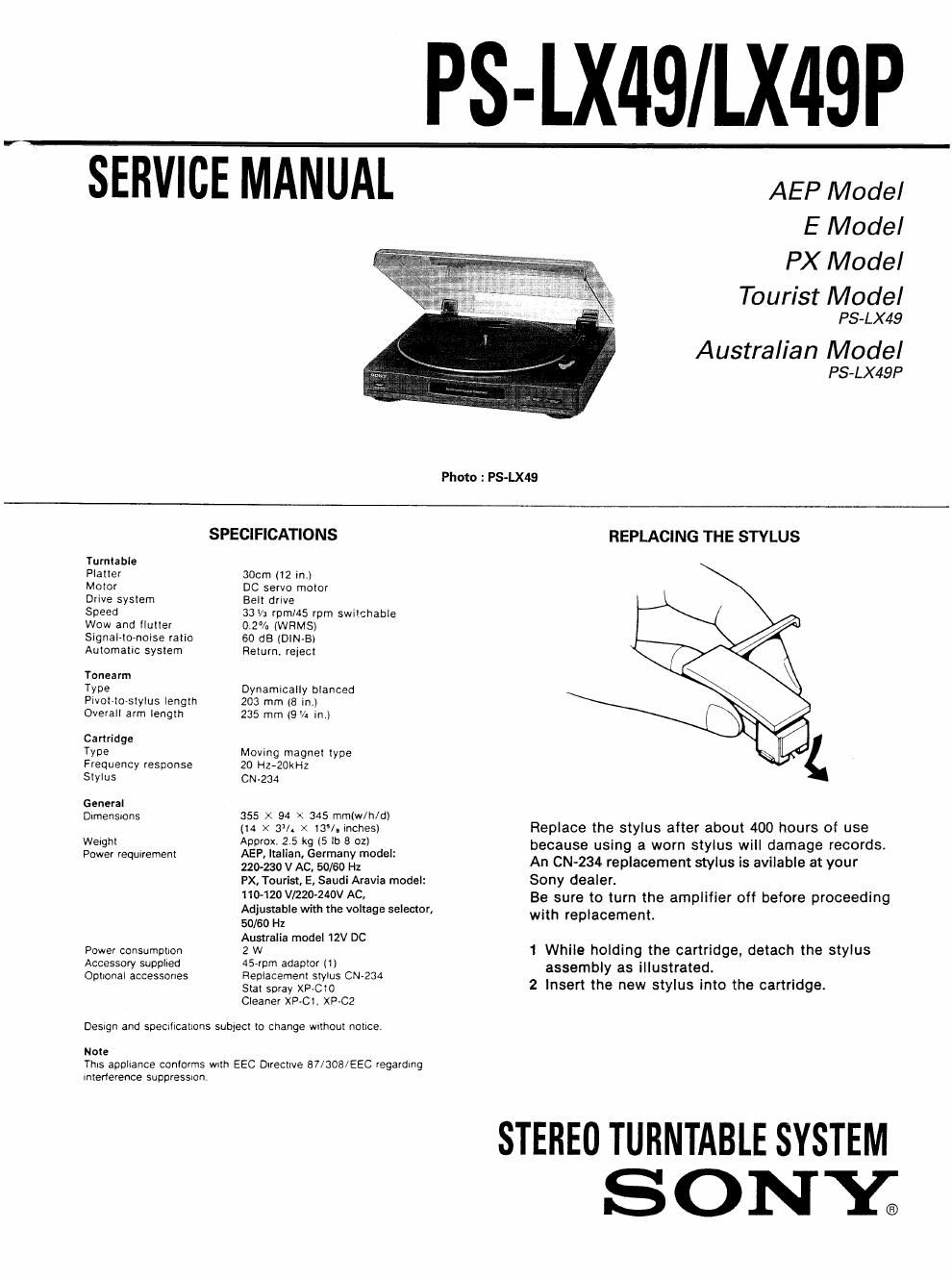

PS-LX49/LX49P
SERVICE MANUAL
AEP Model
E Model
PX Model
Tourist Model
PS-LX49
Australian Model
PS-LX49P
Photo : PS-LX49
SPECIFICATIONS
Turntable
Platter 300m (12 in.)
Motor DC servo motor
Drive system Belt drive
Speed 33 V: rpm/45 rpm switchable
Wow and flutter 0.2% (WRMS)
Signal-tonoise ratio 60 dB (DIN~B)
Automatlc system Return, reject
Tonearm
Type Dynamically blanced
Plvol~lo-stylus length 203 mm l8 in,)
Overall arm length 235 mm (9% In.)
Cartridge
Type Moving magnet type
Frequency response 20 Hz-ZOkHz
Stylus (ZN-234
General
Dlmenswns 355 X 94 X 345 mmlw/h/d)
(14 X 31/. x T351. lnchesl
Weight Approx, 2.5 kg (5 lb 8 oz)
Power requirement AEP, Italian, Germany model:
220-230 V AC, 50/60 Hz
PX. Tourist. E. Saudi Aravla model:
110-120 V/220-240V AC.
Adjustable with the voltage selector,
50/60 Hz
Australia model 12V DC
Power consumptlon 2 W
Accessory supplied AS-rpm adaptor (1)
Optional accessories Replacement srylus (ZN-234
Stat spray XP-Cto
Cleaner XP-Cl. XP-CZ
DeSIgn and specrflcatlons subect to change Without notice.
Note
This appliance conlorms wtth EEC Direcllve 67/308/EEC regardmg
lnterlerence suppressmn.
REPLACING THE STYLUS
Replace the stylus after about 400 hours of use
because using a worn stylus will damage records.
An CN-234 replacement stylus is avilable at your
Sony dealer.
Be sure to turn the amplifier off before proceeding
with replacement.
1 While holding the cartridge, detach the stylus
assembly as illustrated.
2 Insert the new stylus into the cartridge.
STEREO TURNTABLE SYSTEM
SONYS
Page 2
PS-LX49/ LX49P
REPAIRING PRECAUTION (PS-LX49P only)
[To supply B+voltagel
The power of this unit is fed from HST model. Because of this,
connect (he regulated power supply as illustrated right when this unit
alone operates
with while line
CU! corner
regulaled DC
paws! supply
3F 00me
DC!
LOCATION OF CONTROLS
E] 45-rpm adaptor
E] Center spindle
E] POWER switch (PS-LX49 only)
[El Cueing lever
Cartridge
REJECT button
E Speed selector
