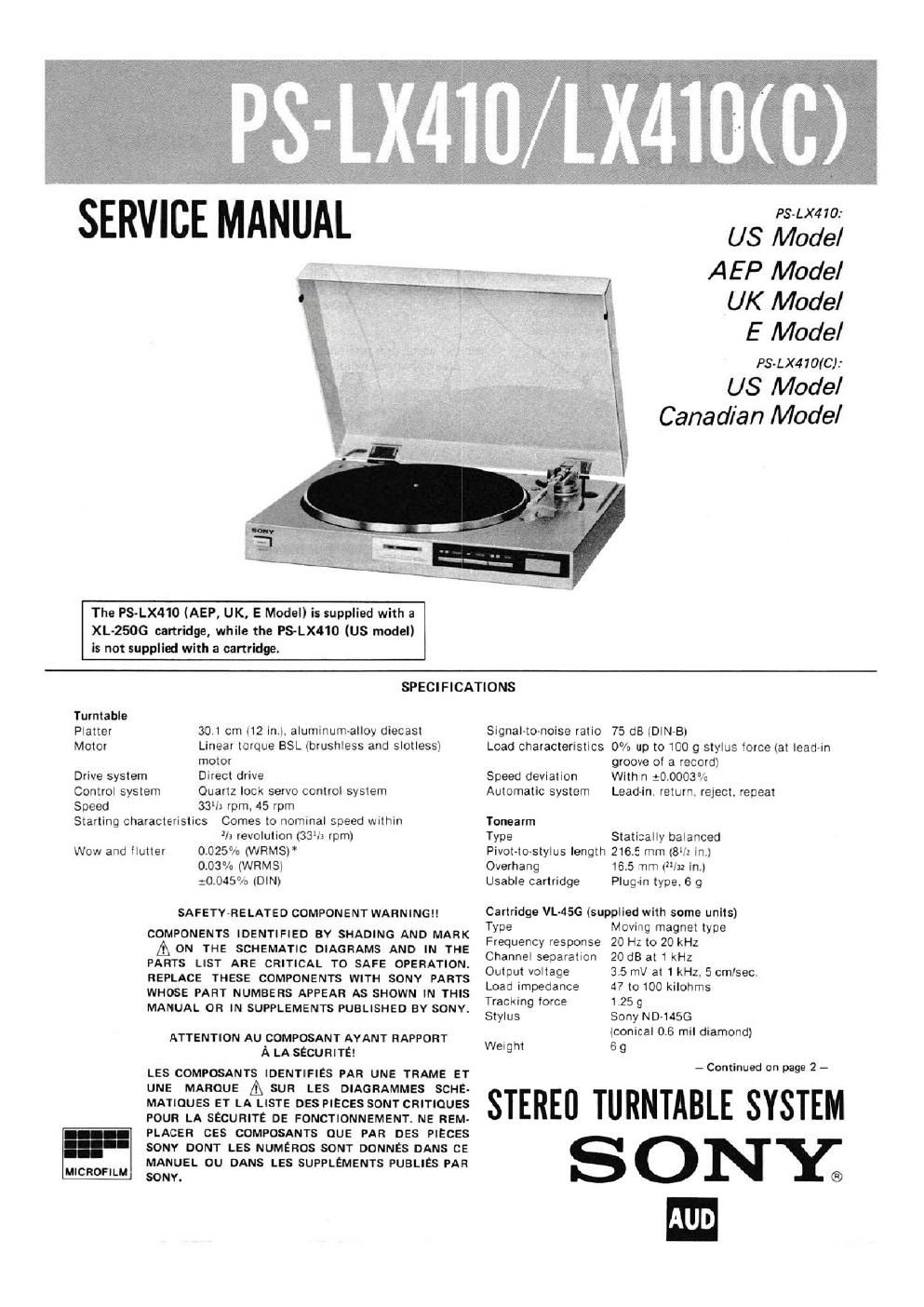

The PS-LX410 (AEP, UK, E Model) is supplied with a
XL-250G cartridge, while the PS-LX410 (US model)
is not supplied with a cartridge.

PS-LX4 70:

US Model
AEP Model
UK Model
E Model

PS-LX410/C):

US Model
Canadian Model

SPECIFICATIONS

Turntable

Platter 30,1 cm (12 in), aluminum-alloy diecast

Motor Linear torque BSL (brushless and slotless)
motor

Drive system Direct drive

Control system Quartz lock servo control system

Speed 33V: rpm, 45 rpm

Starting characteristics Comes to nominal speed within
ll: revolution 1331:: rpm]

0025% (WRMSI

0.03% (WFIMS)

:0.045°/o (DIN)

WOW and flutter

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BV SHADING AND MARK

A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BV SONV.

ATTENTION Au COMPOSANT AVANT RAPPORT
A LA SECURITEI

LEs COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A sun LEs DIAGRAMMES SCHE-
MATIQUES ET LA LISTE DEs PIECES SONT CRITIQUES
POUR LA sEcumrE DE FONCTIONNEMENT. NE REM-
PLACEn CES COMPOSANTS QUE PAR 03 PIECES
SONY DONT LES NUMEHOS SONT DONNES DANS CE
MANUEL ou DANs LEs SUPPLEMENTS Pusués PAR

SONV.

Signal-tonoise ratio 75 dB (DIN-Bl

Load characteristics 0% up to 100 g stylus lorce lat lead~in
groove at a record)

Within 30.000315

Lead-in. return. reject. repeat

Speed deviation
Automatic system

Tonearm

Type statically balanced
Pivot-tostylus length 2165 mm (81/2 in.)
Overhang 16.5 mm ("In in.)
Usable cartridge Plug-in type. 6 g

Cartridge VL-JSG (supplied with some unlts)
Type Moving magnet type
Frequency response 20 Hz to 20 kHz

Channel separation 20 dB at 1 kHz

Output voltage 3.5 mV at 1 kHz, 5 cmlsec.
Load impedance 47 to 100 kilohms

Tracking force 1.25 g
Stylus Sony ND~145G

(conical 0.6 mil diamond)
Weight 6 g

- Continued on page 2 -
