Extracted text from sony ps lx 40 p service manual (Ocr-read)

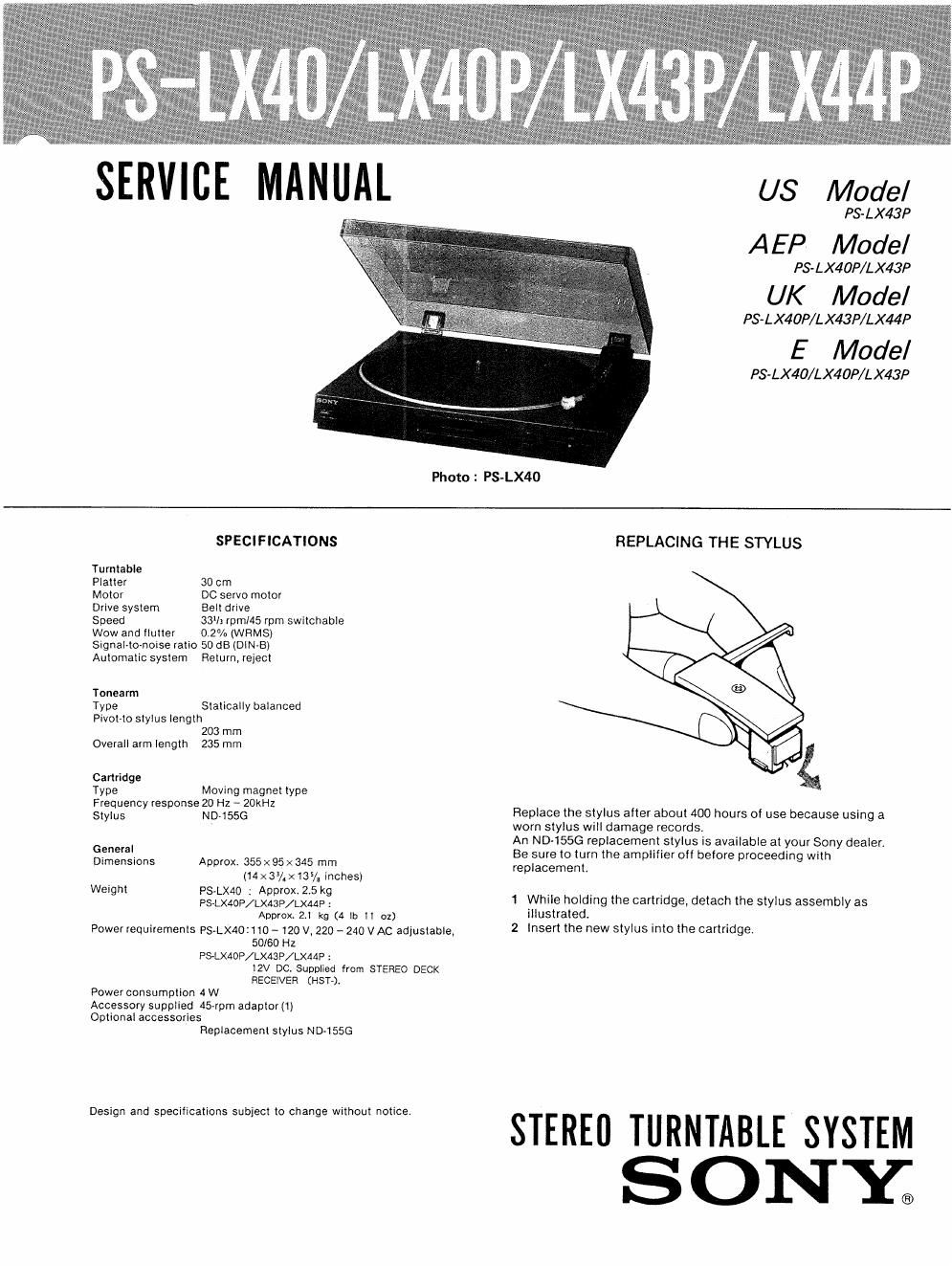

Page 1
U8 Model
PS-LX43P
AEP Model
FS-LX40P/LX43P
UK Model
PS-LX40P/LX43P/LX44P
E Model
PS-LX40/LX40P/LX43P
Photo : PS-LX40
SPECIFICATIONS
Yurntable
Platter 30 cm
Motor DC servo motor
Drive system Belt drive
Speed 33]: rpm/45 rpm switchable
Wow and flutter 0.2% (WRMS)
Signal~to~noise ratio 50 dB (DIN-B)
Automatic system Return, reject
Tortearm
Type statically balanced
Pivot-to stylus length
203 mm
Overall arm length 235 mm
Cartridge
Type Moving magnet type
Frequency response 20 Hz ~ ZOkHz
Stylus ND~1SSG
General
Dimensions Approx. 355x95><345 mm
(14 X 3/. X135/ inches)
Weight PS-LX40 : Approx 2.5 kg
PS-LX40P/LX43P/LX44P :
Approxr 2A kg (4 lb ll 01)
Power requirements PS-LXdOt t 10 - 120 V, 220 - 240 V AC adjustable,
50/60 Hz
PS-LXdOP/LXASP/LX44P :
12V DC. Supplied from STEREO DECK
RECEIVER (HST-).
Power consumption 4 W
Accessory supplied 45-rpm adaptor (1)
Optional accessories
Replacement stylus ND~1556
Design and specifications subject to change without notice.
REPLACING THE STYLUS
Replace the stylus after about 400 hours ol use because using a
worn stylus will damage records,
An ND-1SSG replacement stylus is available at your Sony dealer.
Be sure to turn the amplifier oft before proceeding with
replacemenL
1 While holding the cartridge, detach the stylus assembly as
illustrated
2 Insert the new stylus into the cartridge.
STEREU TURNTABLE SYSTEM
ONY;
Page 2
PS-LX40/LX4OP/LX43P/LX44P
REPAIRING PRECAUTION (PS-LX40P/LX43P/LX44P only)
[To spply B+ voltage]
The power of this unit is fed from HST-D201, D301,
D301CD or DSOICD. Because of this, connect the
regulated power supply as illustrated right when this
unit alone operates.
3 cars cord
{ELK}
with white line
regulated DC
3P connector paws! supply
/
Cl
DC
--0+
-0-
v0
;
LOCATION AND FUNCTION OF CONTROLS
E! Center spindle
Ill Rubber mat
B] Turntable platter
E] POWER switch (PS-LX40 only)
3 Cueing lever(!l!)
E} Tonearm
Arm rest
Cartridge
E REJECT button
SPEED select button
Allows selection of 45 rpm or 33 rpm turntable speedl
