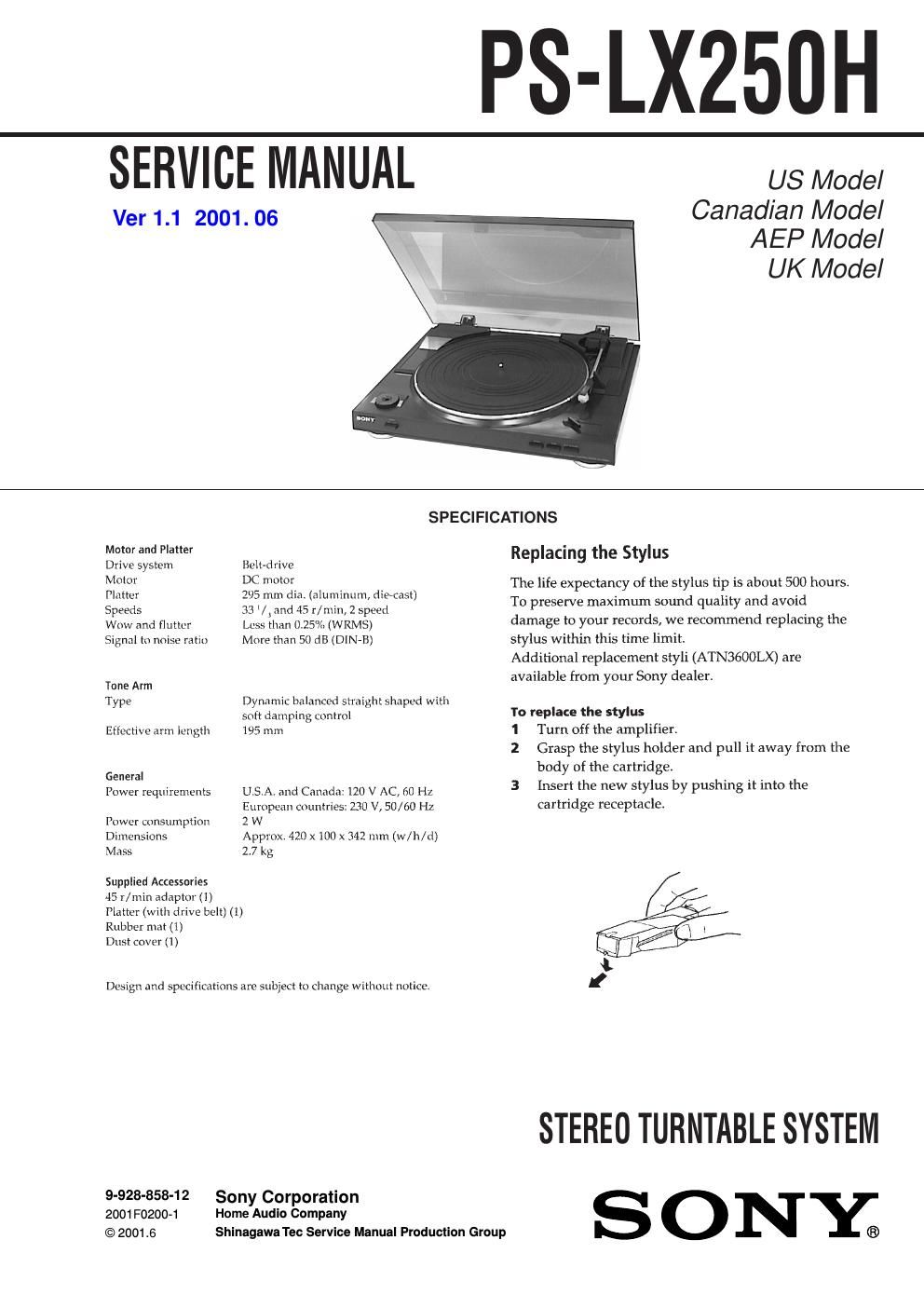

Sony ps lx 250 h service manual

Page 2

Ð 3 Ð SECTION 2 EXPLODED VIEWS 2-1. STEREO TURNTABLE SYSTEM-1 NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ The mechanical parts with no reference number in the exploded views are not supplied.¥ Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. ¥ Abbreviation CND : Canadian The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 1 2 3 4 56 7 8 9 10 1015 10 11 12 1313 13 14 141416171819 20 2021 21 22 22 23 23 242526 44 not supplied not supplied(AEP) (UK) (US/CND ) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 4-215-488-01 PLATTER MAT 2 4-215-491-01 PLATTER 3 4-215-492-01 BELT 4 4-215-531-01 SCREW 5 4-215-494-01 PLATTER SHAFT SET ASSY 6 4-215-489-01 45 PRM ADAPTAR !7 1-433-956-11 TRANSFORMER, POWER (US/CND) !7 1-433-957-11 TRANSFORMER, POWER (AEP/UK) 8 4-215-551-01 INSULATOR *9 A-4405-712-A POWER BOARD, COMPLETE 10 4-215-534-01 SCREW 11 4-220-775-01 PLATE, ORNAMENTAL 12 4-215-552-01 FOOT RING 13 4-215-560-01 RUBBER FOOT 14 4-215-536-01 SCREW15 4-215-519-01 BOTTOM PLATE 16 4-215-533-01 SCREW 17 4-215-508-01 PRESS SET 18 1-790-382-11 CORD, CONNECTION !19 1-575-975-11 CORD, POWER (CND) !19 1-783-531-51 CORD, POWER (US) !19 1-575-651-61 CORD, POWER (AEP) !19 1-696-572-21 CORD, POWER (UK) 20 4-215-574-01 SPRING 21 4-215-573-01 PIN 22 4-215-571-01 HINGE 23 4-215-572-01 INSER SLIDER 24 4-215-518-01 PANEL 25 4-215-559-01 RUBBER FOOT FOR DUST COVER 26 4-215-517-01 DUST COVER
