Extracted text from sony ps lx 200 h service manual (Ocr-read)

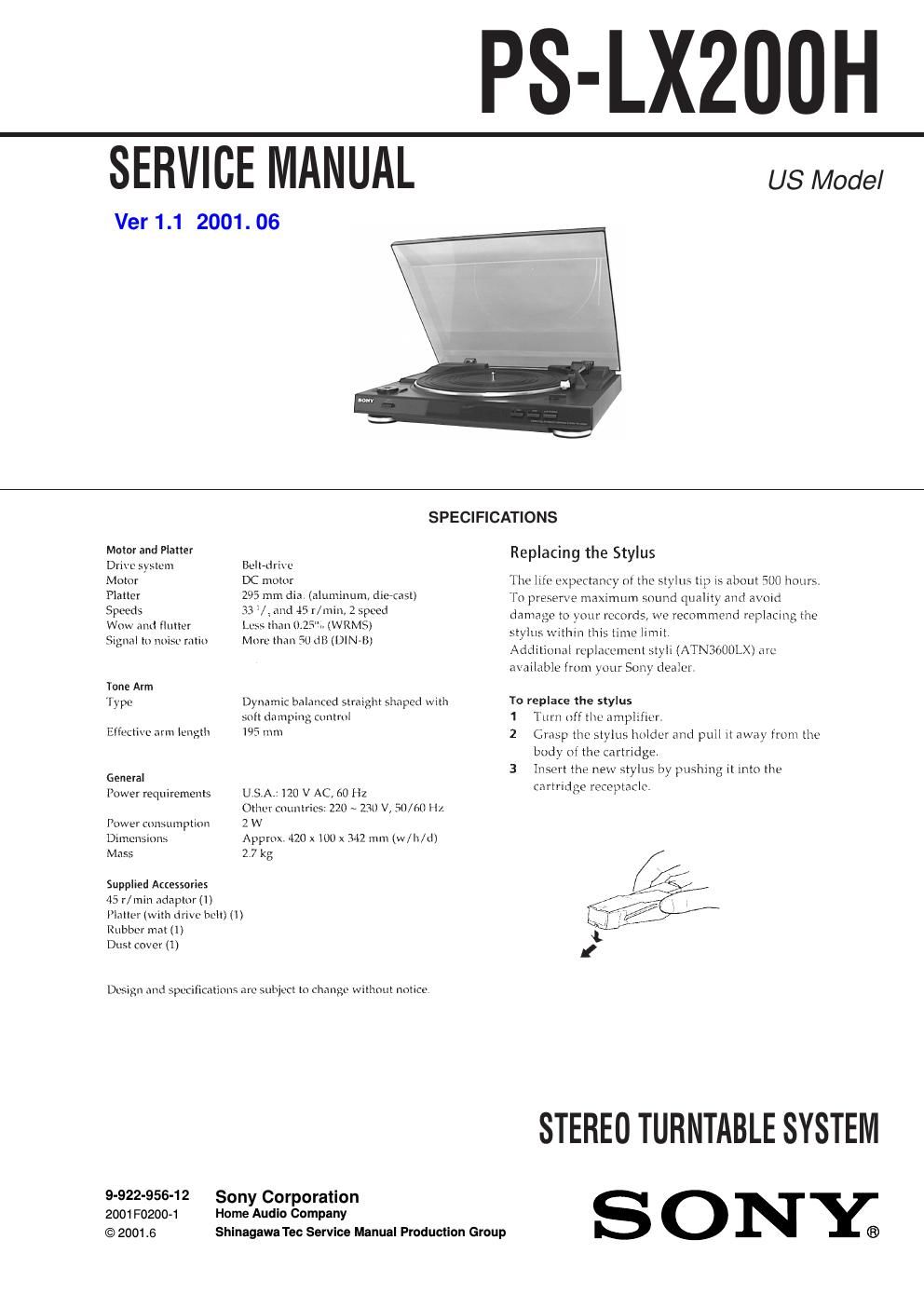

Page 1
Ð 2 Ð SECTION 1 GENERAL This section is extracted from instruction manual. SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Page 2
Ð 3 Ð SECTION 2 EXPLODED VIEWS 2-1. STEREO TURNTABLE SYSTEM-1 NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ The mechanical parts with no reference number in the exploded views are not supplied.¥ Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 1 2 3 4 56 7 8 9 10 1015 10 11 12 1313 13 14 141416171819 20 2021 21 22 22 23 23 242526 44 not supplied not supplied 1 4-215-488-01 PLATTER MAT 2 4-215-491-01 PLATTER 3 4-215-492-01 BELT 4 4-215-531-01 SCREW 5 4-215-494-01 PLATTER SHAFT SET ASSY 6 4-215-489-01 45 PRM ADAPTAR 7 1-433-642-11 TRANSFORMER, POWER 8 4-215-551-01 INSULATOR *9 A-4405-712-A POWER BOARD, COMPLETE 10 4-215-534-01 SCREW 11 4-215-554-01 DECORATIVE PLATE 12 4-215-552-01 FOOT RING 13 4-215-560-01 RUBBER FOOT14 4-215-536-01 SCREW 15 4-215-519-01 BOTTOM PLATE 16 4-215-533-01 SCREW 17 4-215-508-01 PRESS SET 18 1-790-382-11 CORD, CONNECTION !19 1-575-975-11 CORD, POWER 20 4-215-574-01 SPRING 21 4-215-573-01 PIN 22 4-215-571-01 HINGE 23 4-215-572-01 INSER SLIDER 24 4-215-518-01 PANEL 25 4-215-559-01 RUBBER FOOT FOR DUST COVER 26 4-215-517-01 DUST COVER
