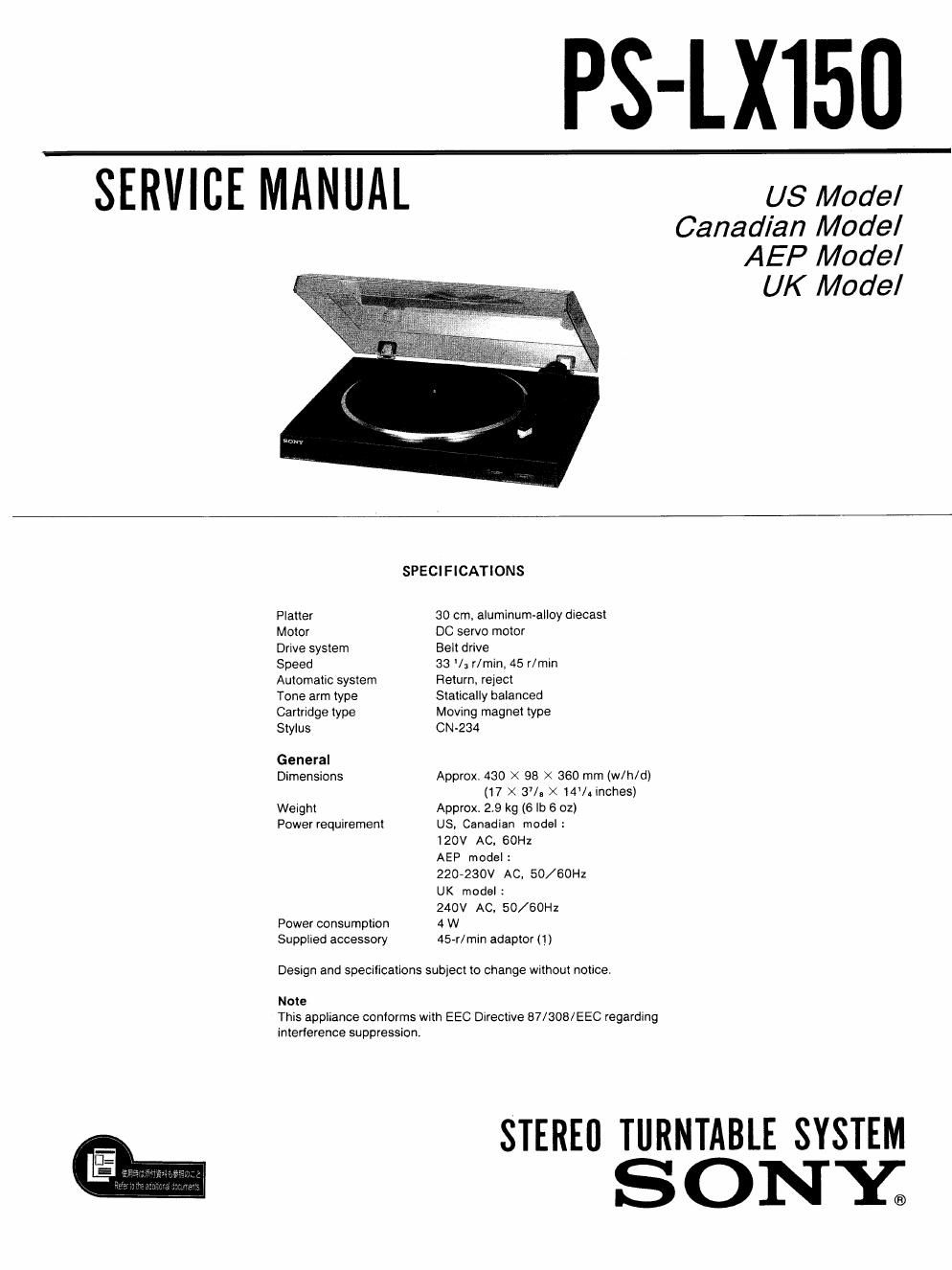

Page 1

PS-LX150_

SERVICE MANUAL us Model

Canadian Model
AEP Model
UK Model

SPECIFICATIONS

Platter 30 cm, aluminum~alloy diecast
Motor DC servo motor
Drive system Bell drive
Speed 33 I: r/min 45 r/min
Automatic system Return. reject
Tone arm type Statically balanced
Cartridge type Moving magnet type
Stylus CN-234
General
Dimensions Approx. 430 X 98 X 360 mm (w/h/d)
(17 X 3/. X 14/.Inches)
Weight Approx, 2.9 kg (6 lb 6 02)
Power requirement US, Canadian model:
120V AC, 60H:
AEP model :
220»230V AC. 50/60Hz
UK model:
240V AC, 50/60Hz
Power consumption 4 W
Supplied accessory 45-r/min adaptor (1)

Design and specifications subject to change without notice.

Note
This appliance contorms with EEC Directive 87/308/EEC regarding
interference suppression,

STEREO TURNTABLE SYSTEM
SONE

Page 2

PS-LX150

SAFETY CHECK-OUT (US, Canadian Model)

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals,metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.

1, A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers instructions to use these instru-
ments.

2. A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job,

3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The limit" indication is 0.75 V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2 V AC range are
suitable. (See Fig. A)

To Exposed Metal
Part: on Set

A C
/ voltmeter

0.15"; I gum
(0.751
'.__J

.3 Earth Ground

F lg. A. Using an AC voltmeter to check AC leakage.
