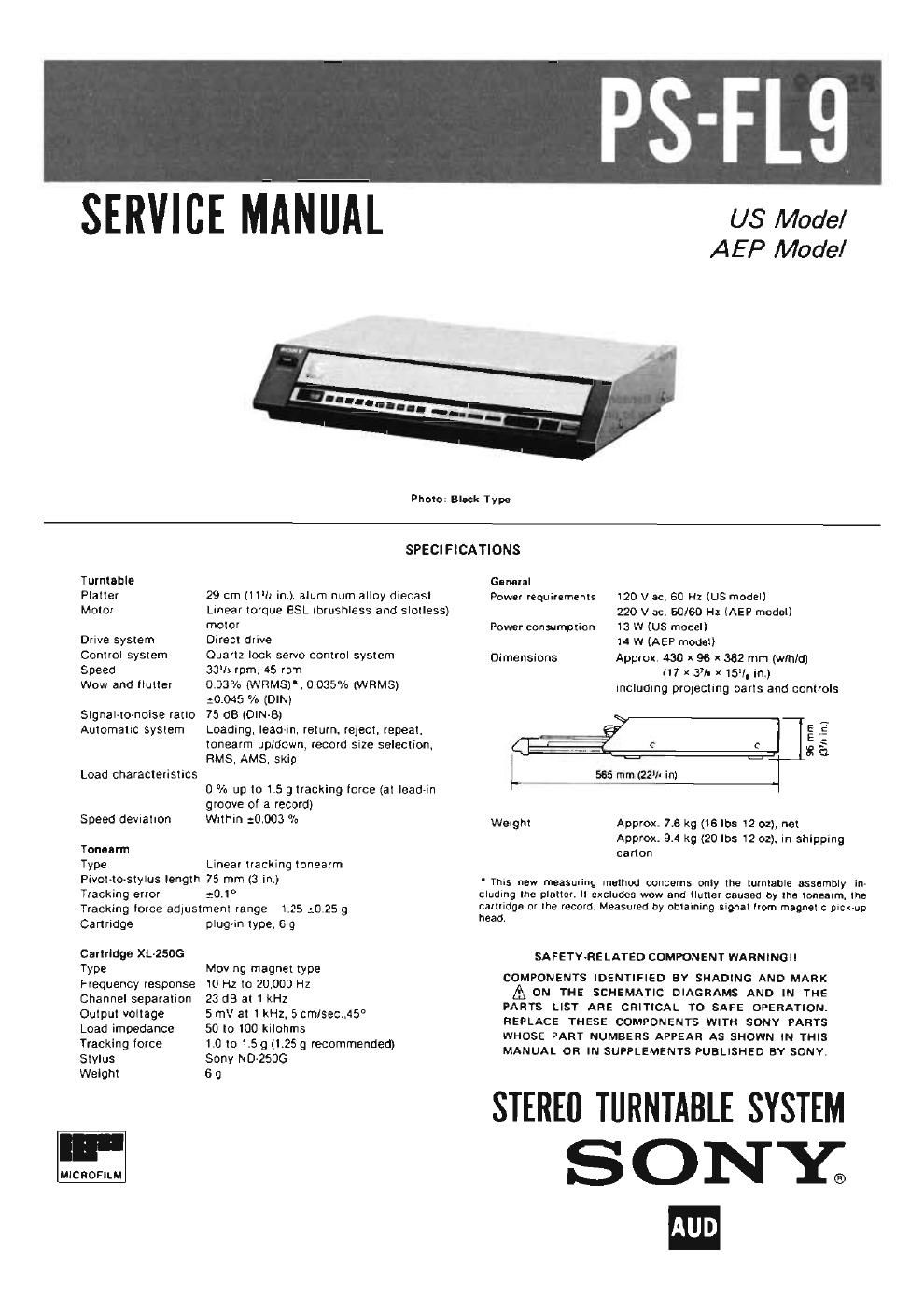

Page 1

US Model
AE P Model

Photo: Block Type

SPECIFICATIONS

Turntable

Platter 29 cm (11'lr in.). aluminum-alloy diecasl

Motor Linear torque BSL lbrushless and slotless)
motor

Drive system Direct drive

Quartz lock servo control system

33'!) rpm. 45 rpm

0.03% MRMS). 0.035% (VVRMSI

20.045 "/0 (DIN)

Signal-to-noise ratio 75 dB (DIN-B)

Automatic system Loading. leadin. return. reject. repeat.
ronearm upldown, record size selection,
RMS, AMS. skip

Load characteristics

0 /0 up to 1.5 g tracking lorce (at lead-in

groove of a record)

Within :0.003 lo

Control system
Speed
Wow and llulter

Speed devratron

Tonearm

Type Linear tracking tonearm
PivoHo-stylus length 75 mm (3 in.)

Tracking error 201°

Tracking lorce adjustment range 1.25 :025 g
Cartridge plug-in type. 6 g

Cartridge XL-2soo
Type Movlng magnet type

Frequency response 10 Hz to 20.000 Hz

Channel separation 23 dB at 1 kHz

Output voltage 5 mV at 1 kHz, 5 cm/sec..45°
Load impedance 50 to 100 kilohms

Tracking force 1.0 to 1.5 g (1.25 9 recommended)
Stylus Sony ND-ZSOG

Weight 6 g

MICROFILM

General
Power requirements 120 V ac. 60 Hz (US model)
220 V ac. 50/60 Hz (AEP model)
13 W (US model)
14 W (AEP model)
Approx. 430 x 96 x 382 mm (wIn/d]
(17 x 3m x 151/. in.)
including projecting parts and controls

Power consumption

Dimensions

(arr. in.)

565 mm (22: in)

Weight Approx. 7.6 kg (16 lbs 12 02). net
Approx. 9.4 kg (20 lbs 12 oz). in shipping

canon

' This new measuring method concerns only the turntable assembly. in
cludrng the platter. l1 excludes wow and lluller caused by the tonearm. the
cartridge or the record Measured by obtaining signal lrorn magnetic pick-up
head.

SAFETV~RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY SHADING AND MARK

& ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONV.

STEREO TURNTABLE SYSTEM
ONY.

Page 2

FEATURES

Unique modular turntable system

When you touch the OPEN/CLOSE button the turntable module will
smoothly slide out. Other audio components can be positioned on
top of the turntable cabinet.

Servo-controlled linear tracking tonean'n

Compared with a pivoted tonearm, a linear tracking arm has a very
small tracking error (which means greatly reduced harmonic distor-
tion) and almost no pressure on the inside wall of the groove (which
means improved tracking ability and channel separation).

Programmed play

The RMS (Random Music Sensor), AMS (Automatic Music Sensor)
and skip functions allow you to program record play as you like.
HMS: tor playing the selections on one side at the record In a
desired sequence.

AMS: for starting record play from the desired selection.

Skip iunction: tor skipping selections to the desired selection.

A microcomputer controls lour motors

The movement of the turntable, the tonearm and the turntable
module is controlled by a microcomputer. When you press the
START/STOP button, the module will close. the turntable will rotate
and the tonearm will lower onto the record. The tonearm up/down is
controlled by its own linear motor to obtain quiet movement.

Fully automatic system

With the module closed, automatic record play and tonearm
up/down are operated by the "leather-touch" tunction buttons on
the lront panel. The record size is automatically set by a photo
sensor system.

Mutlng system

A muting system activates when the tonearm is lilted and deac-
tivates alter the tonearm lowers onto a record so there is no need to
turn the amplifier volume down every time a stylus is placed on a
record.

Quartz lock servo system
The turntable maintains accurate and driit-iree speed by referring
to a irequency generated by a very stable quartz oscillator.

Linear torque BSL motor

Direct drive system with Sony's unique BSL (brushless and slot-
less) motor which has an extremely low noise Ievei and whose
smoothness virtually eliminates wow and tlutter. Its high torque
assures a quick start to 331/: rpm after only a hall revolution.

Synchronized operation with the Sony cassette decks

When the tonearm lowers onto the lead-in groove of a record, the
cassette deck stand-by mode is released and the record mode
assumed. This synchronized operation is possible with Sony
cassette decks equipped with a remote control jack which is con-
nected with the Sony RM-65 synchro remote control unit.
