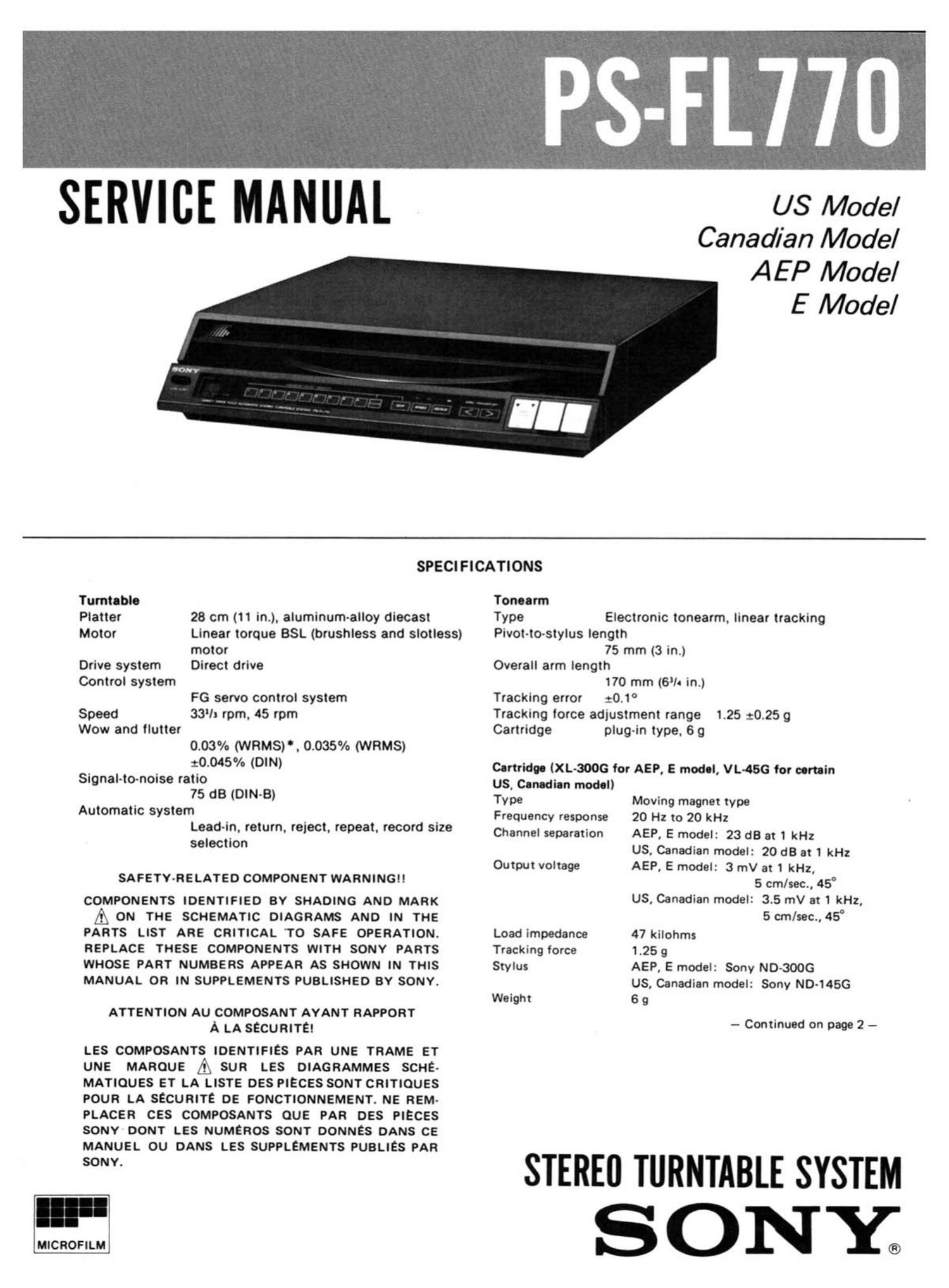

Page 1
PS-FLTT
SERVICE MANUAL
US Model
Canadian Model
A E P Model
E Modal
SPECIFICATIONS
Tumtabla Tonaarm
Platter 28 cm (11 in.). aluminum-alloy diecast Type Electronic tonearm, linear tracking
Motor Linear torque BSL (brushless and slotless) Pivot-tostylus length
motor 75 mm (3 in.)
Drive system Direct drive Overall arm length
Control system
FG servo control system
Speed 33V: rpm, 45 rpm
Wow and flutter
0.03% MRMS), 0.035% (WRMS)
:0.045°/o (DIN)
Signal-tO-noise ratio
75 d8 (DIN-B)
Automatic system
Lead-in. return. reject. repeat. record size
selection
SAFETY-RELATED COMPONENT WARNINGI!
COMPONENTS IDENTIFIED BY SHADING AND MARK
& ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A SUR LES DIAGRAMMES SOHE.
MATIOUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE OE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS OUE PAR OES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU OANS LES SUPPLEMENTS PUBLIES PAR
SONY.
170 mm (6% in.)
Tracking error :0.1°
Tracking force adjustment range
Cartridge plug~in type. 6 g
1.25 20.25 g
Cartridoa (XL-3006 for AEP, E modal, VL-4SG for certain
US, Canadian modal)
Type Moving magnet type
Frequency response 20 Hz to 20 kHz
Channel separation AEP, E model: 23 dB at 1 kHz
US, Canadian model: 20 dB at 1 kHz
AEP, E model: 3 mV at 1 kHz,
5 cm/sec., 45°
US. Canadian model: 3.5 mV at 1 kHz,
5 crn/sec., 45°
Output voltage
Load impedance
Tracking force
47 kilohms
1.25 g
Stylus AEP, E model: Sony ND-3OOG
US. Canadian model: Sony ND~14SG
Weight 6 g
- Continued on page 2 -
STEREII TURNTABLE SYSTEM
MICROFILM
SONY.
Page 2
General
Power requirements AEP model: 220 V ac, 50/60 Hz
US, Canadian model: 120 V ac, 60 Hz
E model: 110 - 120 or 220 - 240 V ac ad-
justable 50/60 Hz
Power consumption 15 W
Dimensions Approx. 355(w) x 90(h) x 400(d) mm
(14 x 3%): 15% in.)
including projecting parts and controls
(For the dimensions with the module open-
ed, see illustration below.)
6%.; an
570 mm (22 lit in)
90 mm (3 Its in)
Weight Approx. 7.0 kg (15 lbs 7 02), net
Approx. 8.2 kg (18 lbs 2 oz), in shipping
canon
Note
This appliance conforms with EEC Directives 76/889 and 82/499
regarding interference suppression.
This new measuring method concerns only the turntable assembly, in-
cluding the platter. It excludes wow and flutter caused by the tonearm.
the cartridge. or the record. Measured by obtaining signal from magnetic
pick-up head.
FEATURES
eUnique modular turntable system
Other audio components (max. 35 kg) can be positioned
on top of the turntable cabinet.
eRMS (Random Music Sensor)
The RMS allows you to play the selections on one side
of the record in a desired sequence.
eSynchronized operation with the Sony tape decks
The synchronized operation is possible with Sony cas-
sette decks equipped with a synchro remote control
connector.
eWireless remote control operation
With the optional ST-V77IV77L system control tuner, the
total audio system can be remotely controlled.
e Direct lunction
eServo-controlled linear tracking tonearm
eA microprocessor which controls lour motors
eFully automatic system
e Muting system
eLiner torque BSL motor
