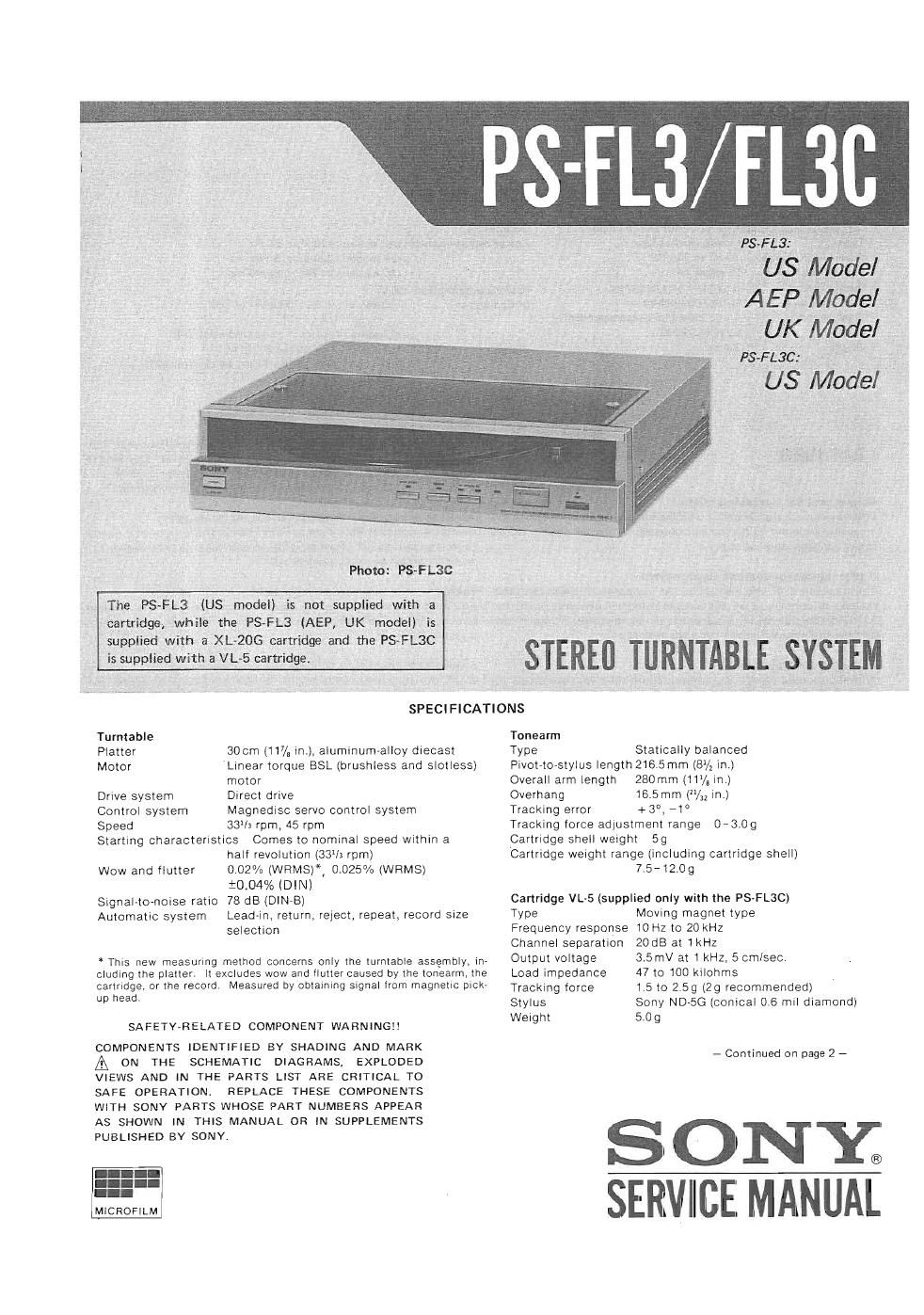

Sony ps fl3

Page 1

Photo: PS-FL3C

The PSAFL3 (US model) is not supplied with a
cartridge, while the PS-FL3 (AEP, UK model) is
supplied with a XL72OG cartridge and the PSsFLSC
is supplied with a VL-S cartridges

Per-13: .
US Model

AEP Model
UK Model

PSvFL3C:

US Model

STEREI] TURNTABLE SYSTEM

SPECIFICATIONS

Turntable

Platter 30 cm (117/n in.), aluminum-alloy diecast

Motor Linear torque BSL (brushless and slotiess)
motor

Drive system Direct drive

Control system Magnedisc servo control system

Speed 33: rpm, 45 rpm

Starting characteristics Comes to nominal speed within a
half revolution (33% rpm)

Wow and flutter 0.02% (WRMS)*, 0,025% (WRMS)
:0.04% (DIN)

Signairto-noise ratio 78 dB (DIN-B)

Automatic system Lead-in, return, reject, repeat, record size
selection

* This new measuring method concerns only the turntable assembly, in
cluding the platter It excludes wow and flutter caused by the tonearm, the
cartridge, or Ihe record. Measured by obtaining Slgnal lrom magnetic pick
up head.

SAFETY~RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY SHADING AND MARK
& ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL T0
SAFE OPERATION REPLACE THESE COMPONENTS
WITH SONV PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

MlCROFILM

Tonearm

Type Statically balanced

PIVOl'tO'StleS length 2165 mm (8V2 in)

Overall arm length 280 mm (11% in.)

Overhang 165 mm (/31 In.)

Tracking error +3°, -1°

Tracking force adjustment range 0~3V0g

Cartridge shell weight 5g

Cartridge weight range (including cartridge shell)
7.5-12.0g

Cartridge VL-5 (supplied only with the PS-FL3C)
Type Moving magnet type
Frequency response 10 Hz to 20 kHz

Channel separation 20 dB at 1kHz

Output voltage 3.5 mV at 1 kHz, 5 cm/sec.

Load impedance 47 to 100 kiiohms

Tracking force 1.5 to 269 (2g recommended)

Stylus Sony ND-SG (conical 0.8 mil diamond)
Weight 5.09

7 Continued on page 2 -

SERVITJE MANUAL

Page 2

S-FL3/FL3C

Cartridge XL-ZOG (Supplied with AEP, UK model.)
Type Moving magnet type
Frequency response 10 Hz to 30 kHz

Channel separation 25 dB at 1 kHz

Output voltage 3 mV at 1 kHz, 5 cm/sec.

General
Power requirements US model:

I20 V ac, 60 Hz
AEP model: 220 V ac, 50/60 Hz
UK model: 240 V ac, 50/60 Hz

Power consumption 10 W

Load impedance 50 to 100 kilohms Dimensions Appyox_ 430 x110x 390 mm (w/hld)
Tracking force 10 to 2.0 g (1.5 9 recommended) (17 x 42/. x 151/. in.)
Stvlus 50W ND-ZOOG including projecting parts and controls
Waiaht 3-4 9 Weight Approx. 10.2 kg (22 lbs 8 02), net
Approx. 12.1 kg (26lbs 11 oz), in shipping
carton
Linear torque BSL motor
Direct drive system With Sonys unique BSL (brushless and slot~
FEATURES less) motor which has an extremely low noise level, and whose

Unique modular turntable system

When you touch the OPEN/CLOSE button the turntable module will
smoothly slide out. Other audio components can be positioned on
top of the turntable cabinet.

A microprocessor controls three motors

The movement of the turntable, the tonearm and the turntable
module is controlled by a microprocessor. When you press the
START/STOP button, the module will close, thetumtable will rotate
and the tonearm will lower onto the record.

Fully automatic system

With the module closed. automatic record play, repeat and stylus
upldown are operated by the feather-touch" iunction button on
the front panel. The record size is automatically set by a photo sen-
sor system. If no record Is on the turntable the tonearm will not
descend but Will automatically return to the arm rest. A muting
system activates when the tonearm is lifted and deactivates after
the tonearm lowers onto a record so there is no need to turn the
amplifier volume down every time a stylus is placed on a record.

smoothness virtually eliminates wow and flutter. Its high torque
assures a quick start to 33/, rpm after only a hall revolutionr

Wireless remote control operation lUS, FLSC model)

Using the optional RM-44 system remote controller, various opera-
tions-power onloff. start/stop of record play and tonearm upl
down-can be remotely controlled.

Tonearm return mechanism triggered by optical sensor

An optical sensor detects the record return point. No mechanical
pressure is applied to the stylus so the tonearm can use a very light
tracking force.

Synchronized operation with the Sony cassette decks

When the tonearrn lowers to the leadrin groove of a record. the
cassette deck stand-by mode is released and the record mode
assumed.

When play finishes. the cassette deck is automatically set first in
the record muting mode, then in the pause mode. This synchror
nized operation is possible with Sony cassette decks equipped with
a four-pin remote control lack which is connected With a Sony
RM-55 synchro remote control unit.

MODEL IDENTIFICATION

Specification Label

SONYé

MODEL NO. PS-F L3

STEREO TURNTABLE SYSTEM

SERIAL N0.
MADE IN JAPAN

US model: AC 120V BOHZ
AEP model: AC 220V
UK model: AC 240V

10W
~ 50/60Hz 10W
~ 50/60Hz 10W
