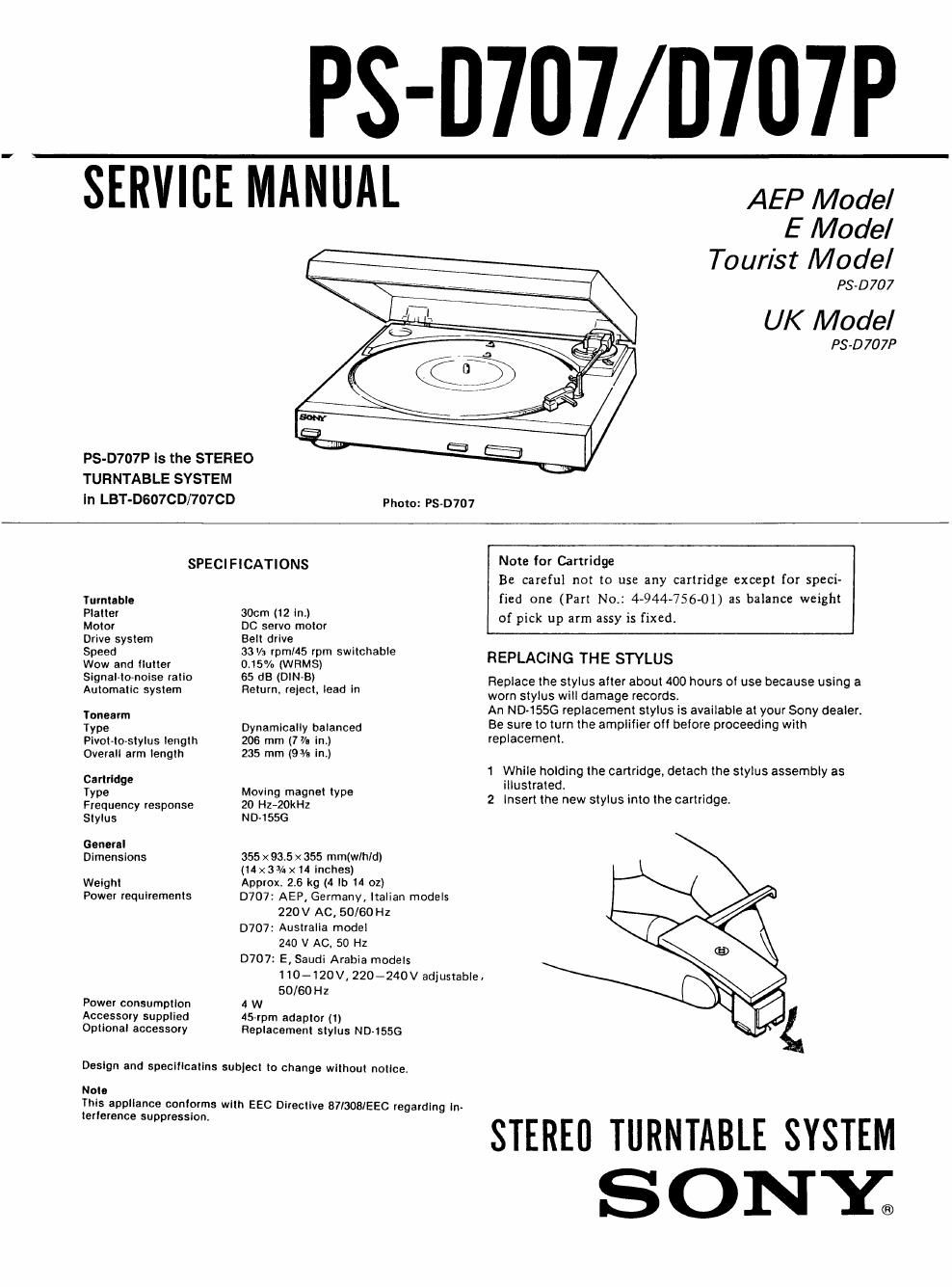

Page 1

PS-0707/0707P

SERVICE MANUAL AEPMode/

E Model
Tourist Model

PS-D707
UK Model
PS-D707P
PS-D707P is the STEREO
TURNTABLE SYSTEM
In LBT-DGO7CD/707CD photo: [3343707
SPECIFICATIONS Note for Cartridge
Be careful not to use any cartridge except for speci-
Turnlahle ficd one (Part No.: 4-944-756-01) as balance weight
Platter 30cm (12 In.) ~ ,
Motor DC servo motor of pIck up arm assy Is ftxed.
Drive system Belt drive
Speed 33 Va rpm/45 rpm switchable
Wow and flutter 0.15% (WRMS) REPLACING THE STYLUS
5'9"a"°."°'5e 'a"° 65 13 (D'N'B) . Replace the stylus after about 400 hours of use because using a
Automatic system Returnr reject, lead In worn stylus will damage records
mum. An ND-ISSG replacement stylus is available at your Sony dealer.
Type Dynamically balanced Be sure to turn the amplifier oil beiore proceeding with
Pivot-lo-slylus lenglh 206 mm (7 7/- in,) replacement.
Overall arm length 285 mm (9% in.)
1 While holding the cartridge, detach the stylus assembly as
$;r;efldge Moving magnet type illustrated,
Frequency response 20 Hz~20kHz 2 Insert the new stylus Into the cartrldge.
Stylus ND-15SG
General
Dimensions 355 x 93.5 x 355 mm(wlhld)
(14 x3% x 14 inches)
Weighl Approx. 2.6 kg (4 lb 14 02)
Power requiremenls D707: AEP, Germany, ltalian models

220 V AC. 50/60 Hz

D707: Australia model
240 V AC, 50 Hz

D707: E, Saudi Arabia models
110-120V, 220-240 V adjustable .

50/60Hz
Power consumption 4 W
Accessory supplied 45~rpm adaptor (I)
Optional accessory Replacement stylus ND-15SG

Design and speclllcatins sublecl to change without nollce.

Nola
This appliance coniorms with EEC Directive 87/3081EEC regarding In-

STEREO TURNTABLE SYSTEM
ONYS

Page 2

PS-D707/D707P
SECTION 1

GENERAL

1-1. LOCATION OF CONTROLS

45-rpm adaplor---fi (-----Record size sensor

\l

START/STOP button

/----Drop point adlustment hole

REPAIRING PRECAUTION (PS-D707P only)

[To supply B+ voltage]

The power of this unit is fed from LBT-D607CD or
LBT-D707CD. Because of this, connect the regulated
power supply as illustrated right when this unit alone

operates.
mil/nod DC
3P connector WW" WW
3 can and
{BLKI
12 V D
DC
-0 4
. lo-
/ / |-

with white line
