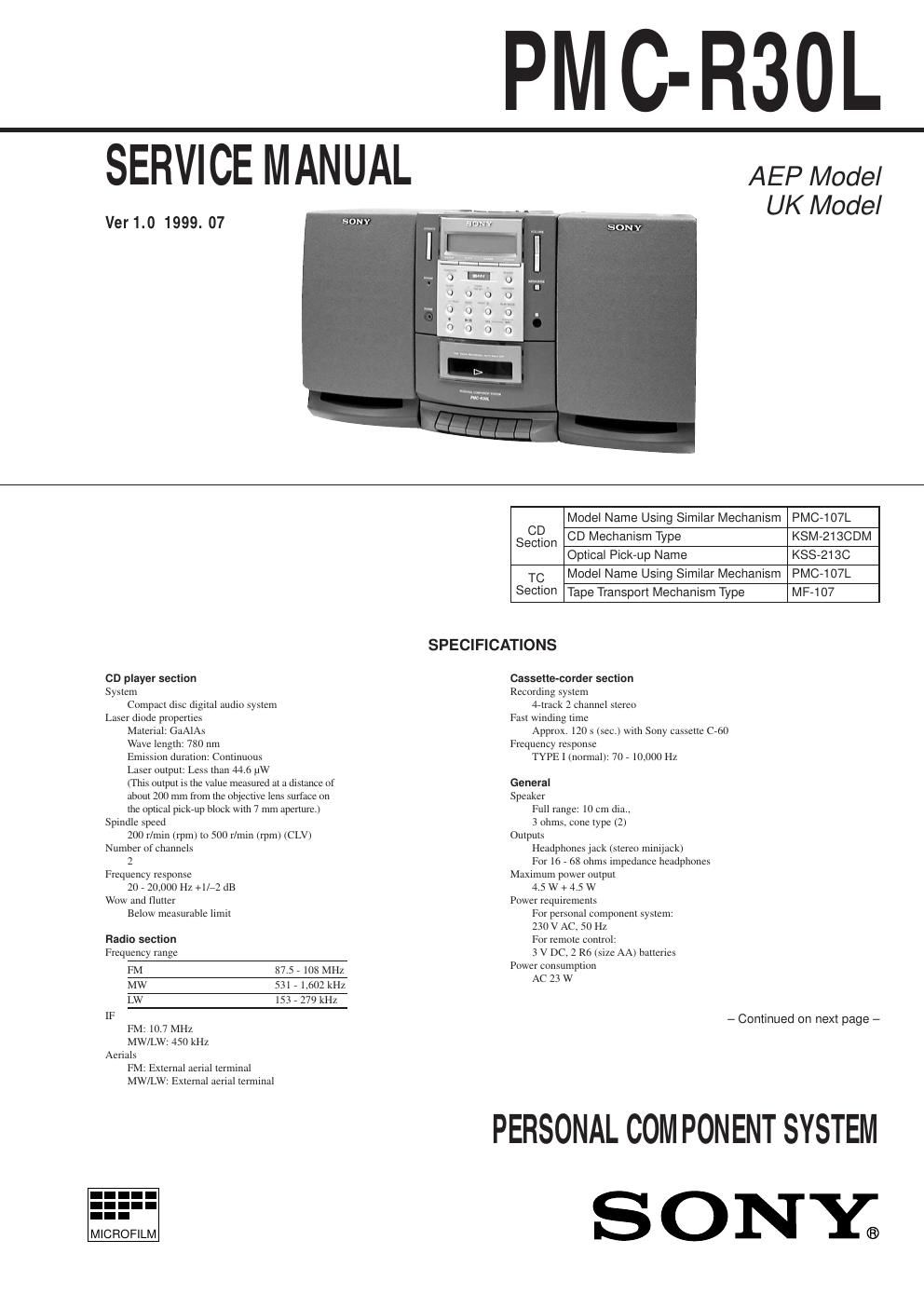

PM C-R30L
SERVICE MANUAL
Ver 1.0 1999. 07
AEP Model
UK Model
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser olllplll: Less than 44.5 (M
(This output is the value measured at a distance of
about 200 mm from the objeeLive lens surface on
the optical pickrup block with 7 mm aperture.)
spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 , 20,000 Hz +l/72 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM 87.5 . 108 MHZ
M
LW . 279 kHz
IF
FM: 10.7 MHz
MW/LW: 450 kHz
Aerials
FM: External aerial terminal
MW/LW: Extemal aerial terminal
MICROFILM
CD
Section
Model Name Using Similar Mechanism
PMC-107L
CD Mechanism Type
KSM-213CDM
Optical Pick-up Name
KSS-21SC
TC
Section
Model Name Using Similar Mechanism
PMC-107L
Tape Transport Mechanism Type
MF-107
SPECIFICATIONS
Cassette-carrier section
Recording system
4etrack 2 channel stereo
Fast Winding nme
Approx. 120 s (sec.) with Sony cassette C760
Frequency response
TYPE I (normal): 70 , 10000 Hz
General
Speaker
Full range: 10 cm dial
3 ohms cone type (2)
Olllpllls
Headphones jack (stereo minijack)
For 16 . 68 ohms impedance headphones
Maximum power output
4.5 W + 4.5 W
Power requirements
For pemonal component system:
230 V AC , 50 Hz
For remote control:
3 V DC, 2 R6 (size AA) batteries
Power consumption
AC 23 W
- Continued on next page -
PERSONAL COMPONENT SYSTEM
SONY;
