Sony pmc dr 50 service manual
This is the 54 pages manual for sony pmc dr 50 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony pmc dr 50 service manual (Ocr-read)

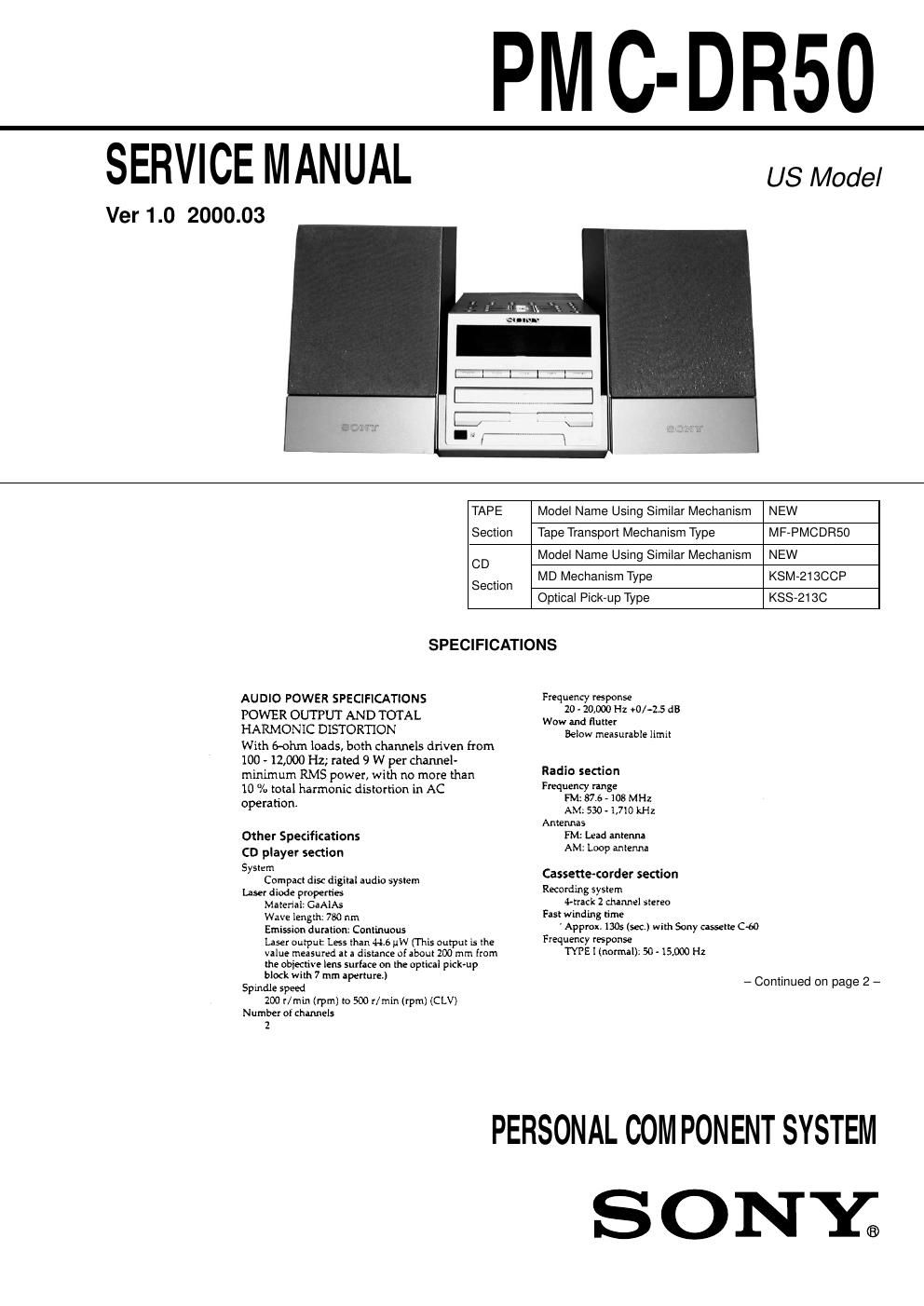

Page 1
– 2 – Specifications ........................................................................... 1 1. SERVICE NOTE ........................................................... 3 2. GENERAL ...................................................................... 4 3. DISASSEMBLY 3-1. Case(bottom), Cover ASSY, Top .......................... 6 3-2. CD ASSY .................................................................. 7 3-3. Main Board, Jack Board ........................................... 7 3-4. Tray ........................................................................... 8 3-5. ASP Board ................................................................ 8 3-6. Belt ........................................................................... 9 3-7. Motor Board, Loading Motor (M651) ...................... 9 3-8. Optical Pick-up Block ............................................ 10 3-9. Mechanism Deck .................................................... 10 3-10. TC RF Board, Head Relay Board, Capstan/Reel Motor (M160) ................................... 11 3-11. Control Board .......................................................... 11 3-12. Display Board ......................................................... 12 3-13. DSP Board, CPU board .......................................... 12 3-14. VOL Board ............................................................. 13 3-15. Cabinet, Wood, Cabinet (R) Bottom ............... 13 3-16. Speaker (R-CH) (SP101) ........................................ 14 3-17. Power Board ........................................................... 14 3-18. AMP Board, AMP IC Board ................................... 15 3-19. Speaker Board ........................................................ 15 4. ADJUSTMENTS 4-1. Mechanical Adjustments ........................................... 16 4-2. Electrical Adjustments .............................................. 16 5. DIAGRAMS 5-1. Explanation of IC Terminals ................................... 19 5-2. Block Diagrams – CD, Tuner Section – ................. 22 5-3. Block Diagrams – Tape, Main Section– ................. 25 5-4. Printed Wiring Boards – Main Section– ................. 29 5-5. Schematic Diagram – Main Section (1/3) – ........... 33 5-6. Schematic Diagram – Main Section (2/3) – ........... 36 5-7. Schematic Diagram – Main Section (3/3) – ........... 39 5-8. Printed Wiring Boards – CD Section – ................... 42 5-9. Schematic Diagram – CD Section – ....................... 45 5-10. Schematic Diagram – Control Section – ................ 49 5-11. Printed Wiring Boards – Control Section – ............ 53 5-12. Printed Wiring Boards – AMP Section – ................ 57 5-13. Schematic Diagram – AMP Section – .................... 59 6. EXPLODED VIEWS 6-1. Case Section ........................................................... 65 6-2. Control Section ....................................................... 66 6-3. CD Mechanism Section .......................................... 67 6-4. Mechanism Deck Section -1 ................................... 68 6-5. Mechanism Deck Section -2 ................................... 69 6-6. CD Optical Pick-up Section ................................... 70 6-7. Speaker (R-CH) Section ......................................... 71 6-8. Speaker (L-CH) Section ......................................... 72 7. ELECTRICAL PARTS LIST ................................... 73 TABLE OF CONTENTS
Page 2
– 3 – NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Close the Tray for CD. 2. Press CD ^ button. 3. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down once for the focus search. ABOUT THE EXTENSION CABLE JIG Extention cable jigs (1-792-164-11, 1-792-165-11, 1-792-223-11 and 1-792-224-11) are necessary when repair this unit. SECTION 1 SERVICE NOTE SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270°C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Jig (20 core) (1-792-164-11)Jig (19 core)(1-792-165-11) ASP board (CN702) Main boardTC RF board (CN691) CN804 CN305 CN302 Jig (9 core) (1-792-224-11 ) Jig (6 pin)(1-792-223-11) CAUTION The use of optical instruments with this product will increase eye hazard.
