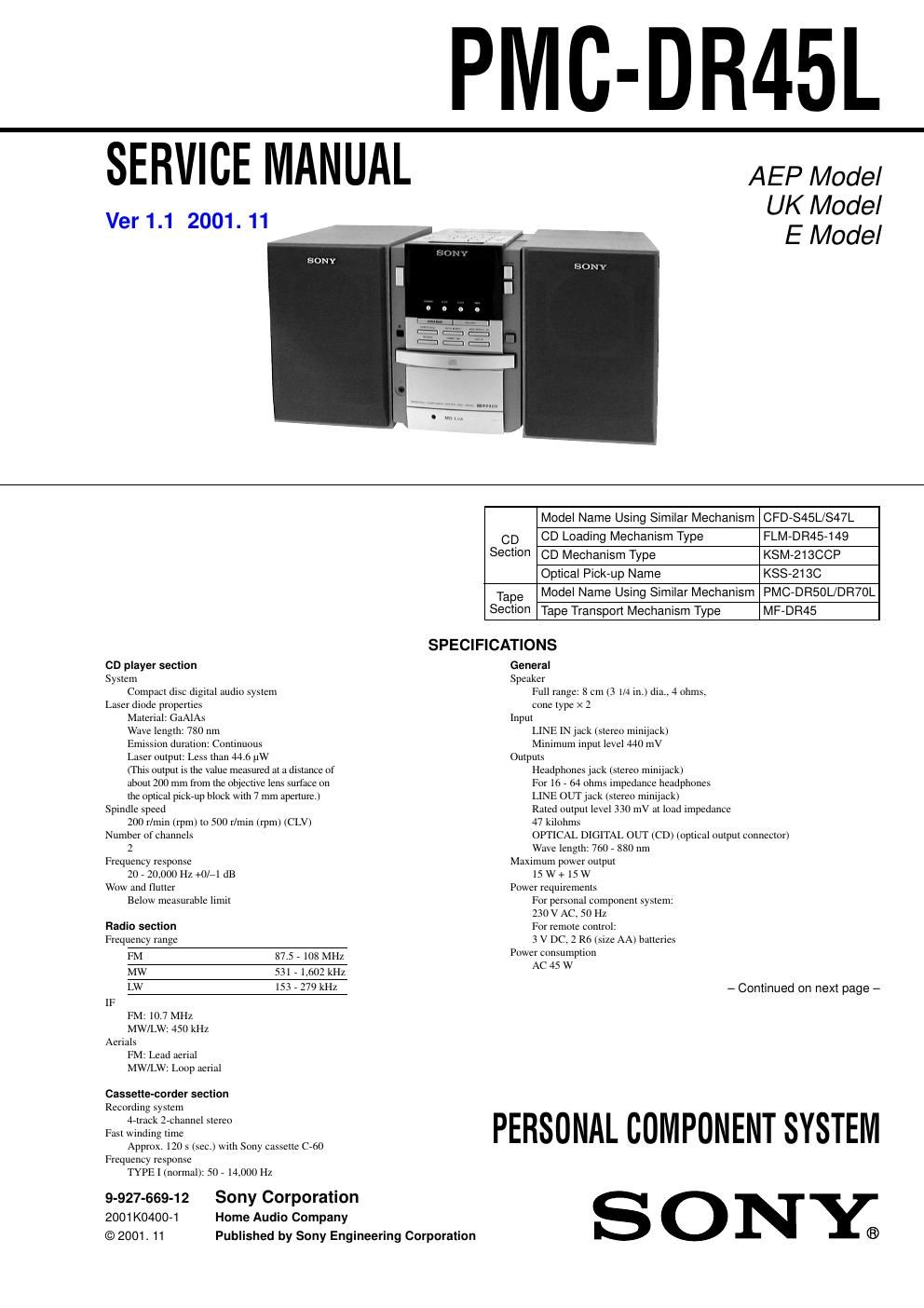

Sony pmc dr 45l
This is the 72 pages manual for sony pmc dr 45l.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony pmc dr 45l (Ocr-read)
Page 1
– 2 – Dimensions (incl. projecting parts) Player: approx. 137 × 212 × 202 mm (w/h/d) (5 1/2 × 8 3/8 × 8 inches) Left speaker: approx. 137 × 212 × 202 mm (w/h/d) (5 1/2 × 8 3/8 × 8 inches) Right speaker: approx. 137 × 180 × 202 mm (w/h/d) (5 1/2 × 7 1/8 × 8 inches) Mass Player: approx. 1.8 kg (3 lb. 15 oz.) Left speaker: approx. 3 kg (6 lb. 10 oz.) Right speaker: approx. 1.5 kg (3 lb. 5 oz.) Supplied accessories Remote control (1) FM lead aerial (1) MW/LW loop aerial (1) Audio connecting cord (1) Design and specifications are subject to change without notice. TABLE OF CONTENTS 1. SERVICING NOTES ......................................................... 3 2. GENERAL Playing a CD ........................................................................... 4 Listening to the radio ............................................................... 4 Playing a tape .......................................................................... 5 Recording on a tape ................................................................. 5 3. DISASSEMBLY 3-1. Cabinet (Front) Assy ........................................................... 7 3-2. Cabinet (Rear) ..................................................................... 8 3-3. Front Board ......................................................................... 8 3-4. Control Board ...................................................................... 9 3-5. Line Board ........................................................................... 9 3-6. Tuner Board ....................................................................... 10 3-7. Holder, Cassette ................................................................ 10 3-8. Top Block Assy ................................................................. 11 3-9. CD Mechanism Block ....................................................... 11 3-10. H/P Board .......................................................................... 12 3-11. Main Board ....................................................................... 12 3-12. Tape Mechanism Block ..................................................... 13 3-13. Top Board .......................................................................... 13 3-14. Plate Assy, Chuck .............................................................. 14 3-15. Tray ................................................................................... 14 3-16. Loading Board ................................................................... 15 3-17. CD Board .......................................................................... 15 3-18. CD Mechanism Block ....................................................... 16 3-19. Power Board ...................................................................... 16 4. MECHANICAL ADJUSTMENTS ............................... 17 5. ELECTRICAL ADJUSTMENTS 5-1. Tape Section ...................................................................... 17 5-2. Tuner Section .................................................................... 19 5-3. CD Section ........................................................................ 21 6. DIAGRAMS 6-1. IC Pin Descriptions ........................................................... 24 6-2. Circuit Boards Location .................................................... 26 6-3. Block Diagram –Tuner Section– ....................................... 27 6-4. Block Diagram –CD Section– ........................................... 29 6-5. Block Diagram –Tape Section– ........................................ 31 6-6. Block Diagram –System Control, Power Section– ........... 33 6-7. Printed Wiring Board –Tuner Section– ............................. 35 6-8. Schematic Diagram –Tuner Section– ................................ 37 6-9. Printed Wiring Boards –CD Section– ............................... 39 6-10. Schematic Diagram –CD Section– .................................... 41 6-11. Printed Wiring Board –TC Section– ................................. 43 6-12. Schematic Diagram –TC Section– .................................... 45 6-13. Printed Wiring Board –Main Section– .............................. 47 6-14. Schematic Diagram –Main Section– ................................. 49 6-15. Printed Wiring Board –Control Section– .......................... 51 6-16. Schematic Diagram –Control Section– ............................. 55 6-17. Printed Wiring Board –Front Section– .............................. 57 6-18. Schematic Diagram –Front Section– ................................ 58 6-19. Printed Wiring Board –Top Section– ................................ 59 6-20. Schematic Diagram –Top Section– ................................... 60 6-21. Printed Wiring Board –Line Section– ............................... 61 6-22. Schematic Diagram –Line Section– .................................. 61 6-23. Printed Wiring Boards –Power Section– ........................... 63 6-24. Schematic Diagram –Power Section– ............................... 65 6-25. IC Block Diagrams ............................................................ 67 7. EXPLODED VIEWS 7-1. Cabinet Section ................................................................. 72 7-2. Cabinet (Top) Section ....................................................... 73 7-3. CD Chassis Section ........................................................... 74 7-4. Mechanism Deck Section (1) ............................................ 75 7-5. Mechanism Deck Section (2) ............................................ 76 7-6. Optical Pick-up Section .................................................... 77 7-7. Speaker (L) Section ........................................................... 78 7-8. Speaker (R) Section ........................................................... 79 8. ELECTRICAL PARTS LIST ......................................... 80
Page 2
– 3 – This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT lable is located on the bottom exterior. SECTION 1 SERVICING NOTES SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.
