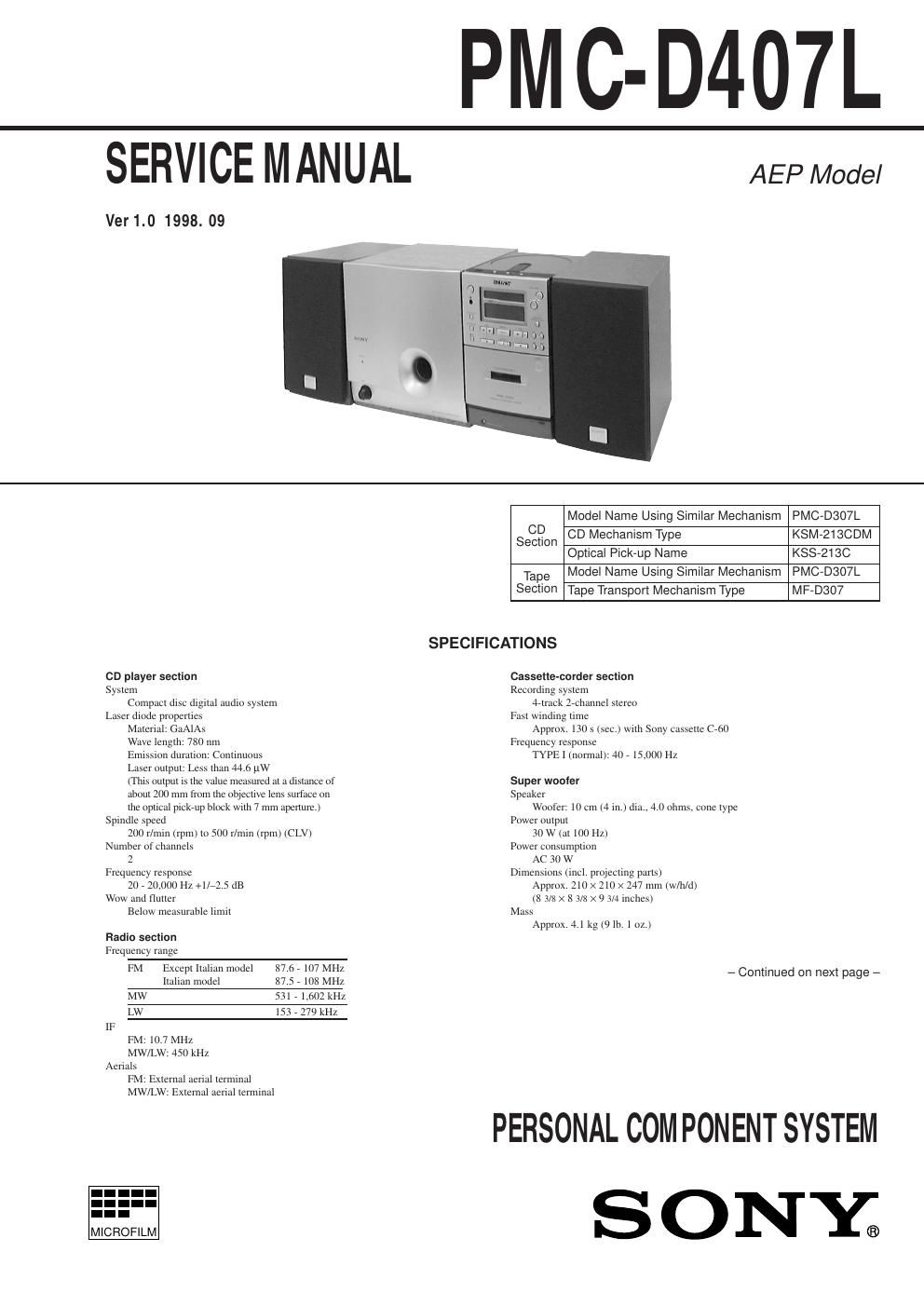

Sony pmc d 407 l service manual
This is the 136 pages manual for sony pmc d 407 l service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony pmc d 407 l service manual (Ocr-read)
Page 1
Ð 2 Ð SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. General Speaker Full range: 8 cm (3 1/4 in.) dia., 6.0 ohms, cone type ´ 2 Input LINE IN jack (stereo minijack) Minimum input level 250 mV Outputs Headphones jack (stereo minijack) For 16 - 68 ohms impedance headphones LINE OUT jack (stereo minijack) Rated output level 440 mV at load impedance 47 kilohms Optical digital output (optical output connector) Wave length: 630 - 690 nm Maximum power output 10 W + 10 W Power requirements For personal component system: 230 V AC, 50 Hz For remote commander: 3 V DC, 2 R6 (size AA) batteries Power consumption AC 35 W Dimensions (incl. projecting parts) Player: approx. 130 ´ 211 ´ 200 mm (w/h/d) (5 1/8 ´ 8 3/8 ´ 7 7/8 inches) Left speaker: approx. 130 ´ 210 ´ 235 mm (w/h/d) (5 1/8 ´ 8 3/8 ´ 9 3/8 inches) Right speaker: approx. 130 ´ 210 ´ 200 mm (w/h/d) (5 1/8 ´ 8 3/8 ´ 7 7/8 inches) Mass Player: approx. 1.7 kg (3 lb. 12 oz.) Left speaker: approx. 3.2 kg (7 lb. 1 oz.) Right speaker: approx. 1.6 kg (3 lb. 9 oz.) Supplied accessories Remote commander RMT-C305AD (1) FM lead aerial (1) MW/LW loop aerial (1) Audio connecting cord (2) Design and specifications are subject to change without notice. TABLE OF CONTENTS 1. SERVICING NOTES ......................................................... 3 2. GENERAL 2-1. Location of Controls ........................................................... 4 3. DISASSEMBLY 3-1. Cabinet (Rear) Section ........................................................ 5 3-2. Case (Lower) Section .......................................................... 6 3-3. Tape Mechanism Deck, Line Board .................................... 6 3-4. Cabinet (CD) Section .......................................................... 7 3-5. CD, System Board ............................................................... 7 3-6. RDS Board, LCD Section ................................................... 8 3-7. Optical Pick-up Section ....................................................... 8 3-8. Rear Chassis (Speaker) Assy ............................................... 9 3-9. Power Amp, Terminal, Jack Board ...................................... 9 3-10. Power Board ...................................................................... 10 3-11. Rear Chassis (Woofer Speaker) Assy ................................ 10 3-12. S/Woofer Amp Board ........................................................ 11 3-13. Woofer Power Board ......................................................... 11 4. MECHANICAL ADJUSTMENTS ............................... 12 5. ELECTRICAL ADJUSTMENTS Tape Section .......................................................................... 12 Tuner Section ......................................................................... 14 CD Section ............................................................................ 16 6. DIAGRAMS 6-1. IC Pin Description ............................................................. 20 6-2. Circuit Boards Location .................................................... 21 6-3. Block Diagram ÐTuner SectionÐ ....................................... 23 6-4. Block Diagram ÐCD SectionÐ ........................................... 25 6-5. Block Diagram ÐTape SectionÐ ........................................ 27 6-6. Printed Wiring Board ÐTuner SectionÐ ............................. 29 6-7. Schematic Diagram ÐTuner SectionÐ ................................ 31 6-8. Printed Wiring Boards ÐRDS SectionÐ ............................. 33 6-9. Schematic Diagram ÐRDS SectionÐ ................................. 35 6-10. Printed Wiring Boards ÐCD SectionÐ ............................... 37 6-11. Schematic Diagram ÐCD SectionÐ .................................... 39 6-12. Printed Wiring Boards ÐMain SectionÐ ............................ 42 6-13. Schematic Diagram ÐMain SectionÐ ................................. 45 6-14. Printed Wiring Boards ÐControl SectionÐ ......................... 48 6-15. Schematic Diagram ÐControl SectionÐ ............................. 51 6-16. Printed Wiring Boards ÐWoofer Speaker SectionÐ ........... 55 6-17. Schematic Diagram ÐWoofer Speaker SectionÐ ............... 57 6-18. Printed Wiring Boards ÐPower Amplifier SectionÐ .......... 59 6-19. Schematic Diagram ÐPower Amplifier SectionÐ .............. 61 7. EXPLODED VIEWS 7-1. Case Section ...................................................................... 68 7-2. Cabinet (Front) Section ..................................................... 69 7-3. Cabinet (CD) Section ........................................................ 70 7-4. Optical Pick-up Section ..................................................... 71 7-5. Tape Mechanism Deck Section-1 ...................................... 72 7-6. Tape Mechanism Deck Section-2 ...................................... 73 7-7. Speaker (L) Section ........................................................... 74 7-8. Speaker (R) Section ........................................................... 75 7-9. Woofer Speaker Section .................................................... 76 8. ELECTRICAL PARTS LIST ........................................ 77
Page 2
Ð 3 Ð CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT CHUCK PLATE JIG ON REPAIRING On repairing CD section, playing a disc without the lid (CD), use Chuck Plate Jig. ¥ Code number of Chuck Plate Jig: X-4918-255-1 The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT table is location on the rear exterior. SECTION 1 SERVICING NOTES LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Turn OPERATE switch on with to disc inserted and press FUNCTION button to CD position. 2. Open the lid (CD). 3. Turn on S801 as following figure. 4. Press the ( (CD) button. 5. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down three times for focus search. S801
