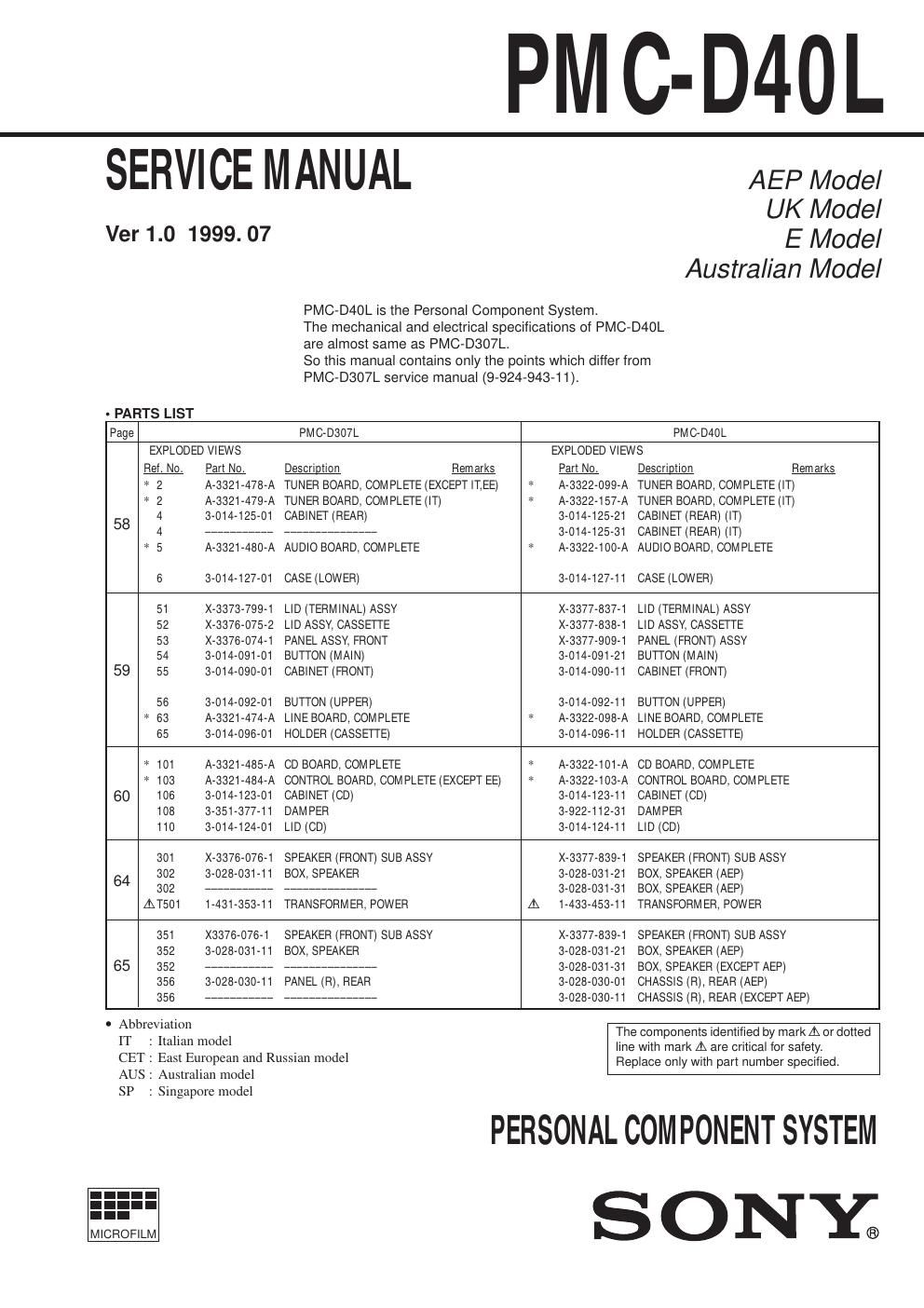

Ñ 2 Ñ Sony Corporation Personal Audio Company 99G1674-1 Printed in Japan ©1999.7 Published by General Engineering Dept. 9-927-151-11 ¥ PARTS LIST PMC-D307L PMC-D40L ELECTRICAL PARTS LIST ELECTRICAL PARTS LIST Page 70 73 Ref. No. Part No. Description Remarks Part No. Description Remarks *A-3321-480-A AUDIO BOARD, COMPLETE *A-3321-485-A CD BOARD, COMPLETE *A-3321-484-A CONTROL BOARD, COMPLETE (EXCEPT EE) *A-3321-474-A LINE BOARD, COMPLETE *A-3321-478-A TUNER BOARD, COMPLETE (EXCEPT IT,EE) *A-3321-479-A TUNER BOARD, COMPLETE (IT) MISCELLANEOUS ************** !T501 1-431-353-11 TRANSFORMER, POWER ACCESSORIES & PACKING MATERIALS ******************************* 3-860-142-11 MANUAL, INSTRUCTION (ENGLISH,GERMAN)(AEP,UK,SP,EE) 3-860-142-21 MANUAL, INSTRUCTION (FRENCH,SPANISHI)(AEP,SP) 3-860-142-31 MANUAL, INSTRUCTION (DUTCH,SWEDISH,PORTUGUESE)(AEP) 3-860-142-41 MANUAL, INSTRUCTION (ITALIAN)(IT) 3-860-142-81 MANUAL, INSTRUCTION (POLISH,CZECH,HUNGALIAN)(CET) 3-860-142-91 MANUAL, INSTRUCTION (RUSSIAN)(EE) 3-864-758-11 MANUAL, INSTRUCTION (SWEDISH,FINNISH)(CET)*A-3322-100-A AUDIO BOARD, COMPLETE *A-3322-101-A CD BOARD, COMPLETE *A-3322-103-A CONTROL BOARD, COMPLETE *A-3322-098-A LINE BOARD, COMPLETE *A-3322-099-A TUNER BOARD, COMPLETE (EXCEPT IT) A-3322-157-A TUNER BOARD, COMPLETE (IT) MISCELLANEOUS ************** !1-433-453-11 TRANSFORMER, POWER ACCESSORIES & PACKING MATERIALS ******************************* 3-867-143-11 MANUAL, INSTRUCTION (ENGLISH,GERMAN)(AEP,UK,AUS,SP) 3-867-143-21 MANUAL, INSTRUCTION (FRENCH,SPANISHI)(AEP,SP) 3-867-143-31 MANUAL, INSTRUCTION (DUTCH,SWEDISH,SPANISH)(AEP) 3-867-143-41 MANUAL, INSTRUCTION (ITALIAN)(IT) 3-867-143-51 MANUAL, INSTRUCTION (POLISH,CZECH,HUNGALIAN)(CET) 3-867-143-61 MANUAL, INSTRUCTION (SWEDISH,FINNISH)(CET) 75 77 66 69 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.
