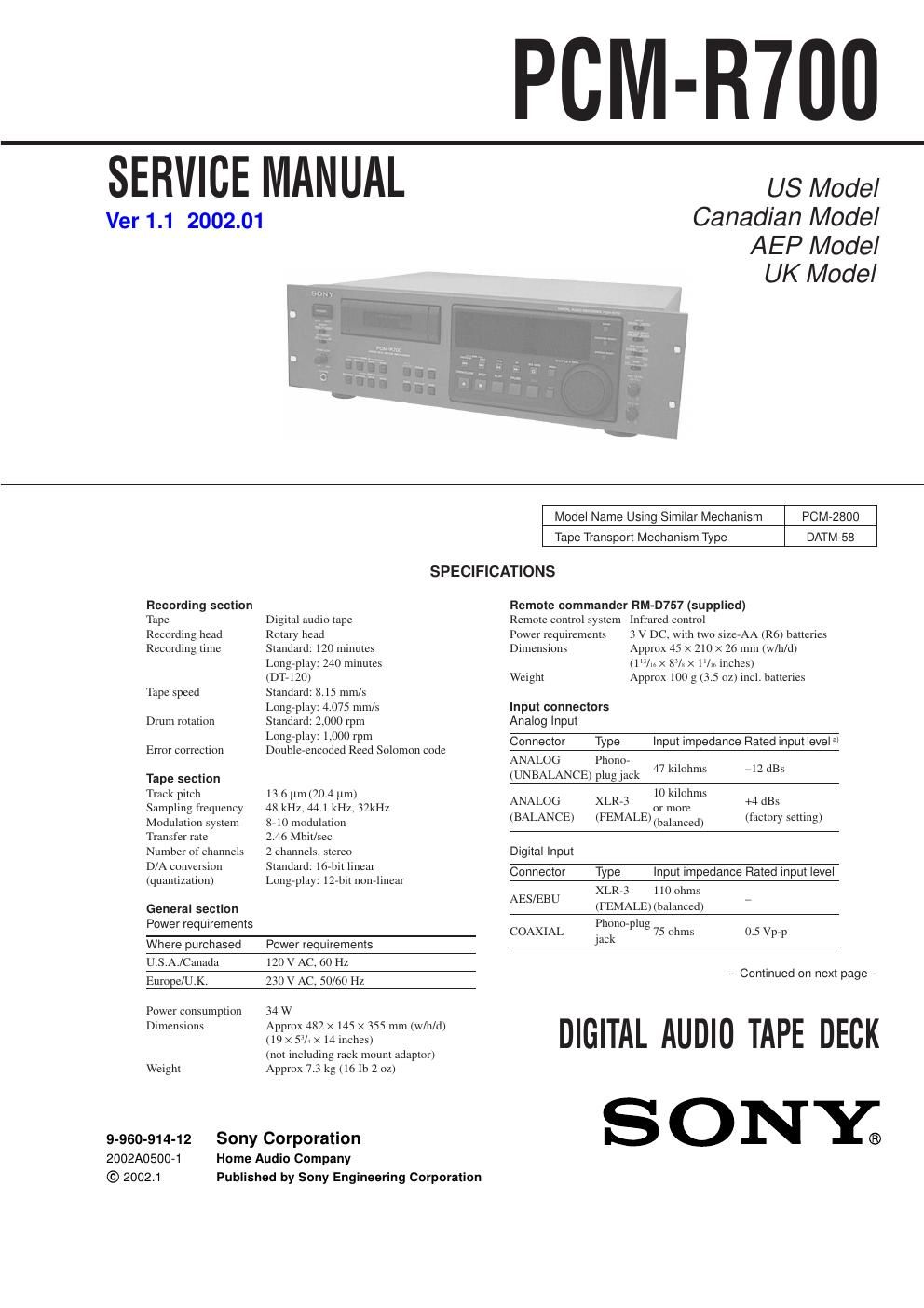

Sony pcm r 700 service manual
This is the 85 pages manual for sony pcm r 700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony pcm r 700 service manual (Ocr-read)
Page 1
Ð 2 Ð Output connectorsAnalog Output OutputRated Load Connector Type impedanceoutput impedance level a) ANALOG Phono-plug 1 kilohm Ð12 dBs 47 kilohms (UNBALANCE) jack ANALOG XLR-3 100 ohms+4 dBs 10 kilohms (BALANCE) (MALE) (balanced)(factory or more setting) PHONESStereo phone- 100 ohms 0.36 mW 32 ohms plug jack Digital Output OutputRated Load Connector Type impedanceoutput impedance level AES/EBUXLR-3 35 ohms Ð 110 ohms (MALE) (balanced) COAXIALPhono-plug 75 ohms 0.5V p-p 75 ohms jack Variable range of analog (BALANCE) input/output reference level a) +4 dBs to Ð12 dBs Maximum analog (BALANCE) output level +24 dBs Remote switch connectors DIN connector (8-pin, parallel) Monaural minijack (serial) Audio characteristics Frequency response b) Standard: 20-20,000 Hz (±0.5 dB) Long-play: 20-14,500 Hz (±0.5 dB) Signal-to-noise ratio b) 90 dB or more (20 kHz LPF, A-weight filter ON) Totalharmonic distortion b)Standard: 0.05% or less Long-play: 0.3% or less (1 kHz, Reference level a) 20 kHz LPF ON) Wow and flutter Below measurable limit (± 0.001 % W. PEAK) a) The reference lebel corresponds to Ð20 dB on the peak level meters. b) During analog input sith the SBM function off Supplied accessories AC power cord (1) Remote commander (remote) RM-D757 (1) Size-AA (R6) batteries (2) Screws (M5 ´ 12) (4) Decorative washers (4) Operating instructions (1) Warranty card (U.S.A. and Canadian models only) (1) Design and specifications are subject to change without notice. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturerÕs instructions. ADVARSEL! Lithiumbatteri-Eksplosionsfare ved fejlagtig hŒndtering. Udskiftning mŒ kun ske med batteri af samme fabrikat og type. LevŽr det brugte batteri tilbage til leverand¿ren. ADVARSEL Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. VARNING Explosionsfara vid felaktigt batteribyte. AnvŠnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvŠnt batteri enligt fabrikantens instruktion. VAROITUS Paristo voi rŠjŠhtŠŠ, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. HŠvitŠ kŠytetty paristo valmistajan ohjeiden mukaisesti. Flexible Circuit Board Repairing ·Keep the temperature of the soldering iron around 270 û C during repairing. ·Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ·Be careful not to apply force on the conductor when soldering or unsoldering . Notes on chip component replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SERVICING NOTES MODEL IDENTIFICATION Ð Model Number label (Printed in Back Panel) Ð MODEL NO. PCM-R700 DIGITAL AUDIO RECORDER US, Canadian model : AC 120 V 60 Hz 34 W AEP, UK Model : AC 230 V Ú 50/60Hz 34 W
Page 2
Ð 3 Ð 1.5 k W 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. TABLE OF CONTENTS 1. GENERAL ..................................................................... 4 2. DISASSEMBLY ............................................................ 18 3. ADJUSTMENTS .......................................................... 22 4. DIAGRAMS 4-1. Block Diagrams Ð Digital Audio Section Ð .................................................. 29 Ð Analog Audio Section Ð .................................................. 31 Ð System Control Section Ð ............................................... 33 Ð Power Section Ð .............................................................. 35 4-2. Printed Wiring Board Ð RF Section Ð ................................ 40 4-3. Schematic Diagram Ð RF Section Ð ................................... 43 4-4. Printed Wiring Boards Ð MD Section Ð ............................. 46 4-5. Schematic Diagram Ð MD Section Ð ................................. 49 4-6. Printed Wiring Boards Ð DIGITAL Section Ð ................... 53 4-7. Schematic Diagram Ð DIGITAL Section Ð ........................ 57 4-8. Schematic Diagram Ð AUDIO Section Ð ........................... 61 4-9. Printed Wiring Boards Ð AUDIO Section Ð ....................... 65 4-10. Printed Wiring Boards Ð DISPLAY Section Ð ................... 69 4-11. Schematic Diagram Ð DISPLAY Section Ð ....................... 73 4-12. IC Pin Function Description .............................................. 76 5. EXPLODED VIEWS ................................................... 88 6. ELECTRICAL PARTS LIST .................................... 96 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.
