Sony pcm 701 es service manual

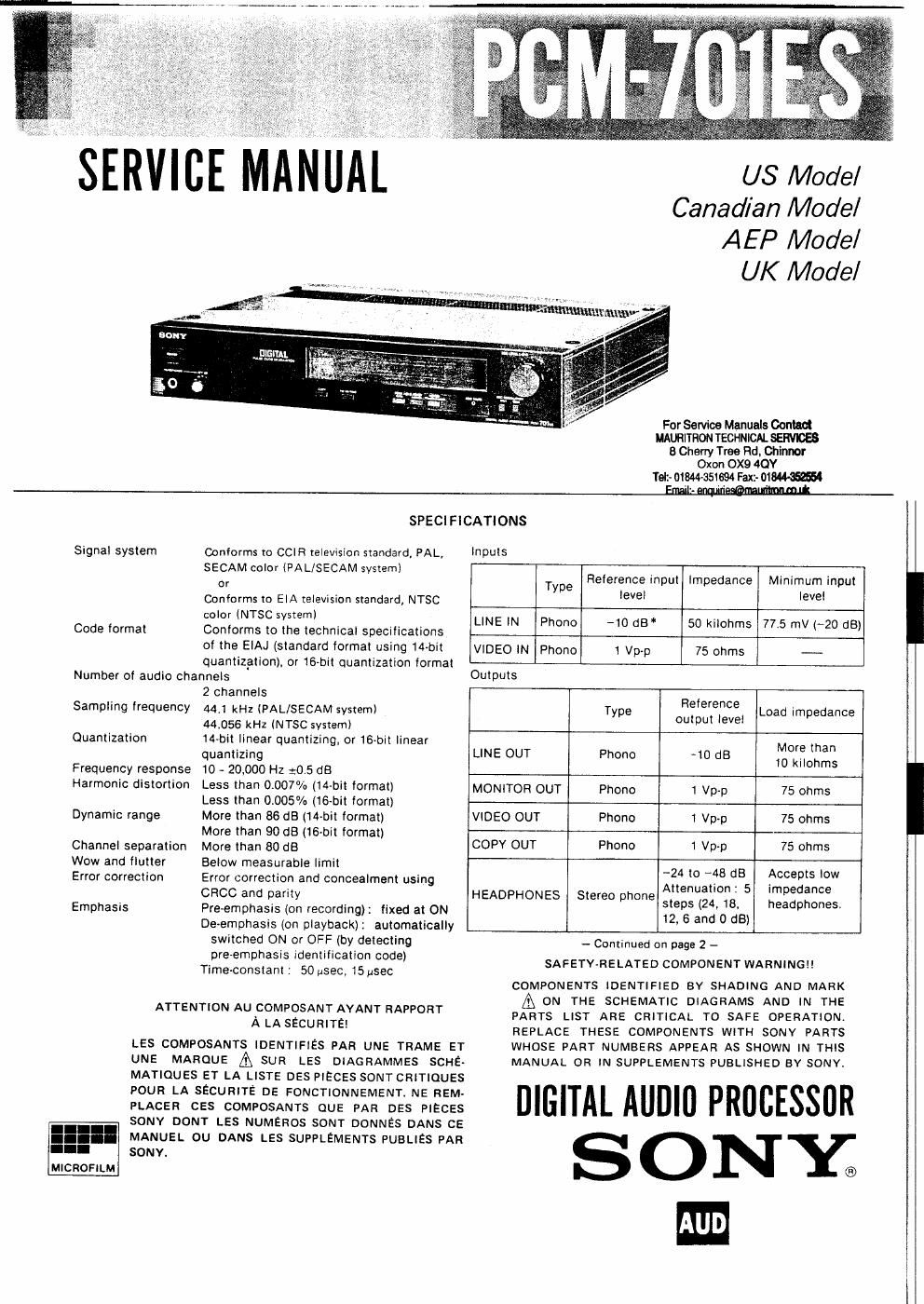

Page 1

US Model
Canadian Model

AEP Model
UK Model

For Service Manuals Cantata

MAURITRON TECHNICAL m

8 Cherry Tree Rd, Chinnor
Oxon 0X9 40V
Tel:- 01844-351894 Falc- 01m
E i__ , . .

MICROFILM

Signal system

Code format

SPECIFICATIONS

Conforms to CCIR television standard, PAL,
SECAM color (PAL/SECAM system)

or
Conforms to EIA television standard, NTSC
color (NTSC system)
Conforms to the technical specifications
of the SIM (standard format using 14-bit
quantization), or 16bit quantization format

Number of audio channels

Sampling

Quantization

Frequency response

Harmonic

Dynamic range

Channel separation
Wow and flutter
Error correction

Emphasis

2 channels

44,1 kHz IPAL/SECAM system)

44,056 kHz INTSC system)

14bit linear quantizing, or 16-bit linear

quantizing

10 - 20,000 Hz :05 dB

Less than 0.007% (14-bit format)

Less than 0,005% (16bit format)

More than 86 dB (14-bit format)

More than 90 dB (16-bit format)

More than 80 :18

Below measurable limit

Error correction and concealment using

CRCC and parity

Pre-emphasis (on recording): fixed at ON

De-emphasis (on playback): automatically
switched ON or OFF (by detecting
ore-emphasis identification code)

Time-constant : 50 usec, Isusec

frequency

distortion

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A SUR LES DIAGRAMMES SCHE-
MATIOUES ET LA LISTS DES PIECES SONTCRITIOUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY.

Inputs
Type Referegfl; input impedance Minirrltgginput
LINE iN Phono -10 [19* 50 kllohms 77.5 NW (-20 :13)
VIDEO IN Phono 1 Vp-p 75 ohms -
Outputs
Type Reference Load impedance
output level
LINE our Phono 10 as m°;fi;::;
MONITOR OUT Phono 1 Vp-p 75 ohms
VIDEO OUT Phono 1 Vp-p 75 ohms
COPY OUT Phono 1 Vp-p 75 ohms
-24 to ~48 dB Accepts low
HEADPHONES Stereo phone :Jéggizjfa 5 33:23:25.
12, 6 and 0 dB)

- Continued on page 2 -
SAFETVARELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY SHADING AND MARK

& ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

DIGITAL AUDIO PROCESSOR

SONY;
IE

Page 2

PCM-701 ES

General

Power requirements AEP modal: 220 V ac (240 V ac adjustable by

authorized Sony personnel, 50/80 Hzl

240 V as (220 V ac adjustable by
authorized Sony personnel, 50 Hz)
US, Canadian model: 120 V ac, 60 Hz

40 W

U K model :

Power consumption

Dimensions Approx. 430 x 80 x 375 mm (w/h/d)
(17 x 3l4 x 147/: inches)
including projecting parts and controls
FEATURES

In conventional analog recording systems, the quality of sound
reproduction depends upon the properties of magnetic tape and
heads. Even with the latest metal tape it is virtually impossible to
bypass the inherent limitations oI conventional analog recording,
including its limited dynamic range and frequency response and
its associated distortion.

The Pulse Code Modulation (PCM) system ushers in a new era of
sound reproduction and otters performance and Iidetity far
superior to analog systems. In the PCM system, sound levels are
converted to a series of binary codes. This information is recorded
as digital pulses of equal amplitude. In playback, all that has to be
done is to discriminate between the presence and absence 01 a
pulse. The quality of recording and playback is thus not dependent
on the characteristics of tape and heads.

The PCM-701ES is the latest and most sophisticated Sony PCM
digital audio processor for general audio use. it offers its own built-
in power source for convenient operation and the host 01 other
features outlined below for the ultimate in audio listening pleasure.
The PCM- 701 ES gives you stereo sound reproduction with a wide
dynamic range, minimal distortion low wow and flutter (even lower
than the measurable limit), and a flat frequency response. Listen-
ing to digital audio sound tapes on your PCM-701ES is just like be-
ing in a concert hall.

Compact PCM digital audio processor with modern component
design

While several hundred ICs are employed In the digital processing
Circmtry ol conventional digital audio processors. 3 new LSIs help
make the PCM-701ES as compact and modern In design as your
other audio equipment, The unit also incorporates A/D (analog-to-
digital) and DIA (digital-toanalog) converters which are newly
developed monolithics. All function to make the PCM~701ES unex-
celled in performance and reliability.

Resolution selector for recording and playback with wider dynamic
range and less distortion

The PCM-701ES was developed In accordance with the technical
specifications of the Electronic Industries Association of Japan
(ElAJ). which has adopted the 14-bit linear quantization format. In
addition. the unit has the capability of recording and playback in
accordance With the 16bit linear quantization format which ollers
a Wider dynamic range and less distortion than the i4- bit lormat.
The 14-bit and 16 bit lormals can be selected with the REC
RESOLUTION (record resolution) selector

SIGNAL SYSTEM IDENTIFICATION

Front panel

Weight 8.5 kg. (net)
(18 lb. 12 oz.)
9.5 kg. (in shipping corton)

(21 lb.)

0 (43 = 0.775 V

Easy tracking adjustment tor tracking ol video heads

The R (right) channel of the peak program meters converts to a
tracking meter allowing lor easy and correct tracking adjustment
of the Video heads.

PB MUTING (playback muting) button provides option at con-
tinuous listening

The PCMJOiES leatures a playback muting system that gives you
the option ol having dropouts cut out automatically when the
muting circuit is switched on Or. you can simply set the button to
OFF for continuous, uninterrupted listening. Muting also functions
at double and triple tape speed,

Extremely accurate error-detection and correction circuits
These keep dropout errors from effecting the quality of sound
reproduction.

Convenient record muting lunction

A highly convenient record muting function allows you to create
blank spacmg between selections to cut out unwanted talk and
commercials.

COPY OUT jack tor perlect tape copies

Multi-generalion, digital-to-digital tape copy can be performed us-
ing the COPY OUT jack on the back of the unit with absolutely no
deterioration in signal quality.

Bright, easytoread peak program meters
Fluoresent peak program meters provide two types of sound level
indication for precision setting of recording and playback levels.

Stable power supply
Two separate CliCUIIS. one for the digital circuitry and one for the
analog circuitry, assure stable power supply.

Separate MONITOR OUTPUT jack allows connection with the Sony
Proteel series and other video monitors

Thers's no need to disconnect your digtal audio processor to
monitor video tapes and T.V. The MONITOR OUTPUT jack on the
back of the PCM-701ES allows transmission of video signals
whether the PCM unit is switched on or off.

For Service Manuals Coolant
MAURITRON TECHNICAL SERVES
8 Cherry Tree Rd. Chinnor
Oxon OX9 40Y
Tet:- 01m35l894 Faxz- 01844-3550
Email:- mmmaurimmm

Q '0 $ 13 Elicia

{NTSC System: Inc lettering)
PAL/SECAM System: PAUSECAM
