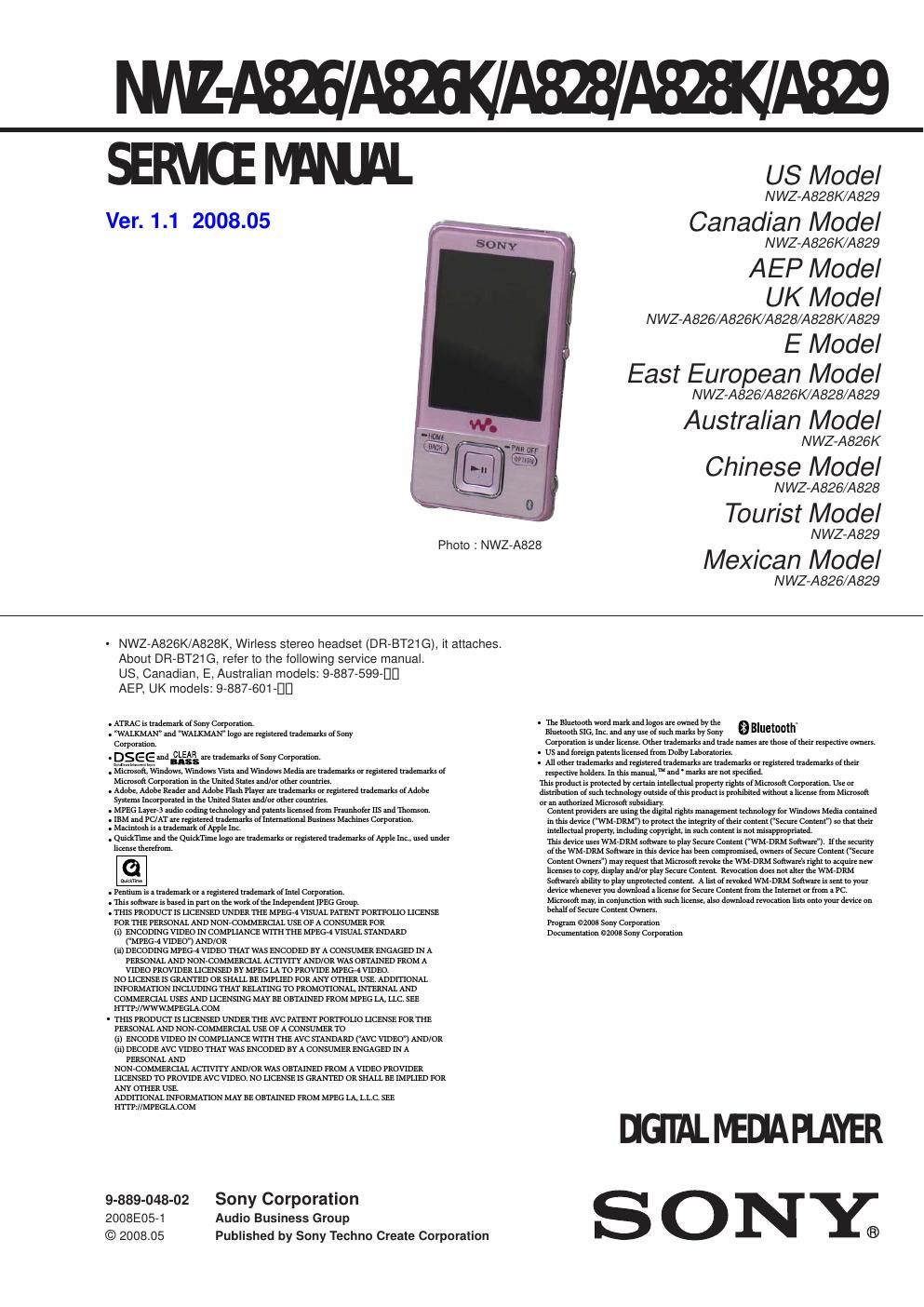

Sony nwz a 826 service manual
This is the 54 pages manual for sony nwz a 826 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony nwz a 826 service manual (Ocr-read)
Page 1
NWZ-A826/A826K/A828/A828K/A829 2 Maximum recordable number of songs and time (Approx.)The approximate times are based on the case in which you transfer or record only 4 minutes songs (not including videos and photos) in the MP3 format. Other playable audio file format song numbers and times may differ from MP3 format. NWZ-A826/A826KNWZ-A828/A828K Bit rateSongs Time Songs Time 48 kbps 2,450 163 hr. 20 min. 5,050 336 hr. 40 min. 64 kbps 1,850 123 hr. 20 min. 3,750 250 hr. 00 min. 128 kbps 92561 hr. 40 min. 1,850 123 hr. 20 min. 256 kbps 46030 hr. 40 min. 94563 hr. 00 min. 320 kbps 37024 hr. 40 min. 75550 hr. 20 min. NWZ-A829 Bit rate Songs Time 48 kbps 10,200 680 hr. 00 min. 64 kbps 7,650 510 hr. 00 min. 128 kbps 3,800 253 hr. 20 min. 256 kbps 1,900 126 hr. 40 min. 320 kbps 1,500 100 hr. 00 min. Maximum recordable time of videos (Approx.)The approximate recordable times are estimated in the case where only videos are transferred. The time may differ, depending on the conditions under which the player is used. NWZ-A826/A826K NWZ-A828/A828K NWZ-A829 Bit rate TimeTimeTime Video Format: 384 kbps 15 hr. 00 min. 30 hr. 40 min. 62 hr. 00 min. Audio Format: 128 kbps Video Format: 768 kbps 8 hr. 30 min. 17 hr. 30 min. 35 hr. 30 min. Audio Format: 128 kbps Maximum recordable number of photos that can be transferred (Approx.)Max. 10,000 Recordable number of photos may be less depending on file sizes. Capacity (User available capacity) * 1 NWZ-A826/A826K: 4 GB (Approx. 3.57 GB = 3,840,638,976 bytes) NWZ-A828/A828K: 8 GB (Approx. 7.30 GB = 7,840,956,416 bytes) NWZ-A829: 16 GB (Approx. 14.7 GB = 15,841,820,672 bytes) * 1Available storage capacity of the player may vary. Aportionofthememoryisusedfordatamanagementfunctions. Output (headphones)Frequency response 20 to 20,000 Hz (when playing data file, single signal measurement) Bluetooth Specifications v Communication system: Bluetooth specification version 2.0 Supplied AccessoriesHeadphones (1) USB cable (1) Earbuds (Size S, L) (1) Attachment (1) * Do not attempt to play this CD-ROM in an audio CD player. * Depending on the country/region in which you have purchased the player, the bundled software may be different. Stand (1) CD-ROM* * (1) Use when connectiong the player to the optical cradle, etc. v Output: Bluetooth specification Power Class 2 v Maximum communication range: Line of sight approx. 10 meters (30 feet)* 1 v Frequency band: 2.4 GHz band (2.4000 GHz – 2.4835 GHz) v Modulation method: FHSS v Compatible Bluetooth profiles* 2 −A2DP (Advanced Audio Distribution Profile) −MP3 Conversion Tool Quick Start Guide (1) Design and specifications are subject to change without notice. −Media Manager for WALKMAN −Windows Media Player 11 −Operation Guide (PDF file) −A VRCP (Audio Video Remote Control Profile) 2 1 1 2 Display2.4-inch, TFT color display with white LED-backlight, QVGA (240 × 320 pixels), 262,144 colors Dimensions (w/h/d, projecting parts not included)50.2 × 93.6 × 9.3 mm (2 × 3 3/4 × 3/8 inches) Dimension (w/h/d)51.0 × 93.9 × 9.3 mm (2 1/8 × 3 3/4 × 3/8 inches) MassApprox. 58 g (Approx. 2.1 oz) SPECIFICATIONS Supported file formatMusicFile format MP3(MPEG-1 Layer3) file format, ASF file format, MP4 file format, Wave-Riff file format File extension MP3 (.mp3), WMA* 1 (.wma), AAC-LC* 2 (.mp4, .m4a, .3gp), Linear PCM (.wav) Codec MP3 Bit rate: 32 to 320 kbps (Supports variable bit rate (VBR)) Sampling frequency* 3: 32, 44.1, 48 kHz WMA* 1 Bit rate: 32 to 192 kbps (Supports variable bit rate (VBR)) Sampling frequency* 3: 44.1 kHz AAC-LC* 2 Bit rate: 16 to 320 kbps (Supports variable bit rate (VBR))* 4 Sampling frequency* 3: 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz Linear PCM Bit rate: 1,411 kbps Sampling frequency* 3: 44.1 kHz VideoFile format MP4 file format, Memory Stick video format File extension .mp4, .m4v Codec Video AVC (H.264/AVC) Profile: Baseline Profile Level: Max. 1.3 Bit rate: Max. 768 kbps MPEG-4 Profile: Simple Profile Bit rate: Max. 2,500 kbps Frame rate: Max. 30 fps Resolution: Max. QVGA (320 × 240) Audio AAC-LC Channel number: Max. 2 channels Sampling frequency* 3: 24, 32, 44.1, 48 kHz Bit rate: Max. 288 kbps per 1 channel File size Max. 2 GB The number of files Max. 1,000 Photo* 5 File format Compatible with DCF 2.0/Exif 2.21file format File extension .jpg Codec Profile: Baseline Profile Number of pixels: Max. 4,000 × 4,000 pixels (16,000,000 pixels) The number of files Max. 10,000 *1WM-DRM 10 files are compatible. *2Copyright protected AAC-LC files cannot be played back. *3Sampling frequency may not correspond to all encoders. *4Non-standard bit rates or non-guaranteed bit rates are included depending on the sampling frequency. * 5Some photo files cannot be played back, depending on their file formats. InterfaceHeadphone: Stereo mini-jack WM-PORT (multiple connecting terminal): 22 pins Hi-Speed USB (USB 2.0 compliant) Operating temperature5 °C to 35 °C (41 °F to 95 °F) Power sourceBuilt-in rechargeable lithium-ion battery US B power (from a computer via the supplied USB cable) Charging timeUSB-based charging Approx. 3 hours (full charge), Approx.1.5 hours (approx. 80 %) Battery life (continuous playback)By setting as follows, a longer battery life can be expected. The times below are approximated when New Song Pop Up, Clear Stereo , DSEE (Sound Enhancer), Dynamic Normalizer, Equalizer and VPT(Surround) are deactivated, and Screensaver is set to Blank. Furthermore, for videos, the time approximated when the brightness of the screen is set to 3, or when Sound Quality Mode is set to Normal Mode. The time below may differ depending on ambient temperature or the status of use. Battery life may be shortened by the radio waves generated by ambient Bluetooth devices or wireless LAN devices, or by the communication distance between the player and the communicating device. NWZ-A826/A826K/A828/A828K/A829 (Bluetooth function is on) NWZ-A826/A826K/A828/A828K/A829 (Bluetooth function is off) Music Playback at MP3 128 kbps Approximately 15 hours Approximately 36 hours Playback at WMA 128 kbps Approximately 15 hours Approximately 35.5 hours Playback at AAC-LC 128 kbps Approximately 15 hours Approximately 33.5 hours Playback at Linear PCM 1411 kbps Approximately 15 hours Approximately 34.5 hours Video (Only sound in Bluetooth communication) Playback at MPEG-4 384 kbps Approximately 7 hours Approximately 10 hours Playback at MPEG-4 768 kbps Approximately 7 hours Approximately 9 hours Playback at AVC 384 kbps Approximately 6 hours Approximately 8 hours Playback at AVC 768 kbps Approximately 6 hours Approximately 8 hours
Page 2
NWZ-A826/A826K/A828/A828K/A829 3 UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to fl ow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing - Keep the temperature of soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. 1. SERVICING NOTES ............................................. 3 2. GENERAL .................................................................. 5 3. DISASSEMBLY 3-1. Disassembly Flow .......................................................... 6 3-2. Cover (Rear), Rear Assy ................................................. 6 3-3. Battery ........................................................................\ ..... 7 3-4. MAIN Board ................................................................... 7 3-5. LCD Assy ........................................................................\ 8 4. TEST MODE ............................................................ 9 5. DIAGRAMS 5-1. Block Diagram - MAIN Section - ................................... 17 5-2. Block Diagram - PANEL, POWER SUPPLY Section - ........................... 18 5-3. Printed Wiring Board - MAIN Board (Side A) - ............ 20 5-4. Printed Wiring Board - MAIN Board (Side B) - ............ 21 5-5. Schematic Diagram - MAIN Board (1/7) - ..................... 22 5-6. Schematic Diagram - MAIN Board (2/7) - ..................... 23 5-7. Schematic Diagram - MAIN Board (3/7) - ..................... 24 5-8. Schematic Diagram - MAIN Board (4/7) - ..................... 25 5-9. Schematic Diagram - MAIN Board (5/7) - ..................... 26 5-10. Schematic Diagram - MAIN Board (6/7) - ..................... 27 5-11. Schematic Diagram - MAIN Board (7/7) - ..................... 28 5-12. Printed Wiring Board - SW Board - ................................ 29 5-13. Schematic Diagram - SW Board (1/2) - .......................... 30 5-14. Schematic Diagram - SW Board (2/2) - .......................... 31 6. EXPLODED VIEWS 6-1. Cover (Rear) Section ...................................................... 43 6-2. Rear Assy Section ........................................................... 44 6-3. MAIN Board Section ...................................................... 45 6-4. Front Section ................................................................... 46 7. ELECTRICAL PARTS LIST .............................. 47 TABLE OF CONTENTS CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. SECTION 1 SERVICING NOTES NOTE THE CN601, CN602, IC301, IC302, IC305, IC453, IC501, IC503, IC508, IC509, IC601, IC602, IC701, IC751, IC752, IC901, IC902 AND IC903 ON THE MAIN BOARD REPLACING CN601, CN602, IC301, IC302, IC305, IC453, IC501, IC503, IC508, IC509, IC601, IC602, IC701, IC751, IC752, IC901, IC902 and IC903 on the MAIN board cannot exchange with single. When CN601, CN602, IC301, IC302, IC305, IC453, IC501, IC503, IC508, IC509, IC601, IC602, IC701, IC751, IC752, IC901, IC902 and IC903 on the MAIN board are damaged, exchange the entire mounted board. NOTE THE CN801, CN881 AND IC801 ON THE SW BOARD REPLACING CN801, CN881 and IC801 on the SW board cannot exchange with single. When CN801, CN881 and IC801 on the SW board are dam- aged, exchange the entire mounted board. Bluet ooth Specifications (continued)Supported Codecs* 3: SBC (Subband Codec) Transmission range (A2DP): 20 - 20,000Hz (Sampling frequency 44.1kHz) *1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields, static electricity, reception sensitivity, antenna (aerial) performance, operating system, software application, etc. * 2 Bluetooth profiles are standardized according to the purpose of the Bluetooth device. *3 Codec indicates the audio signal compression and conversion format. System Requ irementsComputer IBM PC/AT or compatible computer preinstalled with the following Windows operating systems* 1: Windows XP Home Edition (Service Pack 2 or later) / Windows XP Professional (Service Pack 2 or later) / Windows Vista Home Basic / Windows Vista Home Premium / Windows Vista Business / Windows Vista Ultimate Not supported by 64 bit version OS. Not supported by OSs other than above. * 1 Excluding OS Versions not supported by Microsoft.CPU: P entium 4 1.0 GHz or higherRAM: 512 MB or moreHard Disk drive: 380 MB or more of available spaceDisplay: Screen Resolution: 800 × 600 pixels (or higher) (recommended 1,024 × 768 or higher) Colors: 8 bit or higher (16 bit recommended) CD-R OM drive (supporting Digital Music CD playback capabilities using WDM) To create original CDs, a CD-R/RW drive is required. S ound boardUSB port (Hi-Speed USB is recommended)Microsoft .NET Framework 2.0 or 3.0, QuickTime 7.2, Internet Explorer 6.0 or 7.0, Windows Media Player 10 or 11 (Windows Media Player 11 recommended. Some computers that already have Windows Media Player 10 installed may encounter file limitation (AAC, video files, etc.) that can be transferred by dragging and dropping.). A dobe Flash Player 8 or higher needs to be installed.Broadband Internet connection is required to use Electronic Music Distribution (EMD) or to visit the web site. We do not guarantee operation for all computers even if they meet the above System Requirements.Not supported by the following environments:Personally constructed computers or operating systemsA n environment that is an upgrade of the original manufacturer-installed operating system M ulti-boot environmentMulti-monitor environmentM acintosh
