Sony nw hd 1 service manual
This is the 50 pages manual for sony nw hd 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony nw hd 1 service manual (Ocr-read)

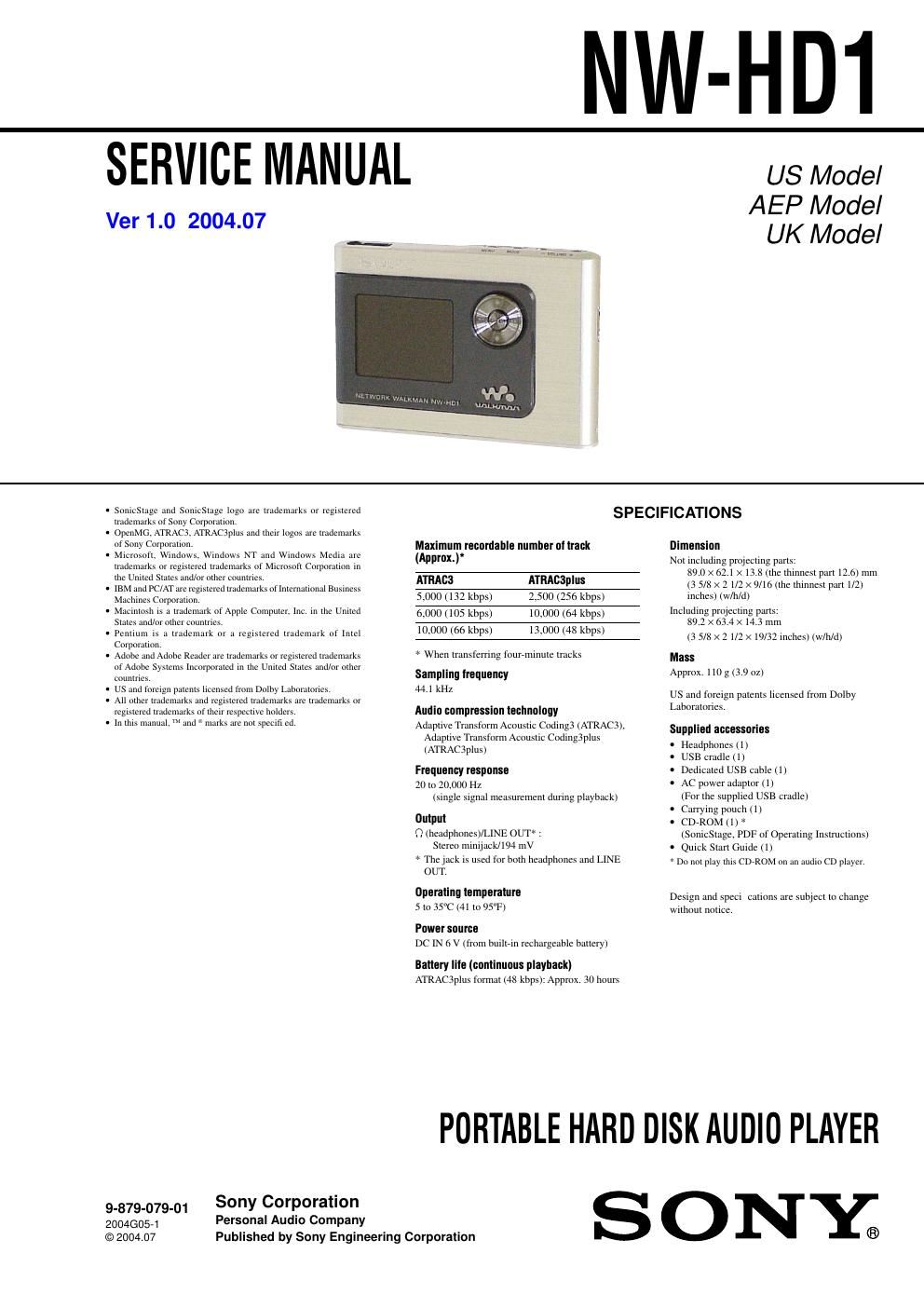

Page 1
2 NW-HD1 TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 5 3-2. Cabinet (Upper) Sub Assy ............................................... 5 3-3. Cabinet (Lower) Assy ...................................................... 6 3-4. Battery Block Sub Assy ................................................... 6 3-5. MAIN Board .................................................................... 7 3-6. LCD Block Sub Assy ...................................................... 7 3-7. HDD Unit, HDD Board ................................................... 8 4. TEST MODE .............................................................. 9 5. DIAGRAMS 5-1. Block Diagram –MAIN Section (1/2) – .......................... 16 5-2. Block Diagram –MAIN Section (2/2) – .......................... 17 5-3. Block Diagram –KEY/POWER SUPPLY Section – ....... 18 5-4. Printed Wiring Board – MAIN Section (Component Side) – ............................. 20 5-5. Printed Wiring Board – MAIN Section (Conductor Side) – ............................... 21 5-6. Schematic Diagram –MAIN Section (1/7) – ................... 22 5-7. Schematic Diagram –MAIN Section (2/7) – ................... 23 5-8. Schematic Diagram –MAIN Section (3/7) – ................... 24 5-9. Schematic Diagram –MAIN Section (4/7) – ................... 25 5-10. Schematic Diagram –MAIN Section (5/7) – ................... 26 5-11. Schematic Diagram –MAIN Section (6/7) – ................... 27 5-12. Schematic Diagram –MAIN Section (7/7) – ................... 28 5-13. Printed Wiring Board – HDD Section – ......................... 29 5-14. Schematic Diagram – HDD Section – ............................ 29 6. EXPLODED VIEW ................................................... 42 7. ELECTRICAL PARTS LIST ................................ 43 Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 ˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Notes on the AC power adaptor Use only the AC power adaptor and USB cradle supplied with the player. Do not use any other AC power adaptor since this may cause the player to malfunction. The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off. If you are not going to use the player for a long time, be sure to disconnect the power supply. To remove the AC power adaptor from the wall outlet, grasp the adaptor plug itself; never pull the cord.
Page 2
3 NW-HD1 SECTION 1 SERVICING NOTES -Replacement of CXR704060-201GA (IC1003), MBM29SL800BE-90PBT (IC1101), S1R72003BOOA100 (IC2001), CXR710160-211GH (IC3001), CXD1616GH (IC7001) and EDL1216CASA-10L-E (IC7002) used in this set requires a special tool. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. System requirements Computer IBM PC/AT or Compatible- CPU: Pentium II 400 MHz or higher (Pentium III 450 MHz or higher is recommended.) - Hard disk drive space: 200 MB or more (1.5 GB or more is recommended.) (The amount of space will vary according to the Windows version and the number of music les stored on the hard disk.) - RAM: 64 MB or more (128 MB or more is recommended.) Others- CD drive (capable of digital playback by WDM) - Sound Board - USB port (Hi-Speed USB is supported.) Operating System Factory installed: Windows XP Media Center Edition 2004/Windows XP Media Center Edition/ Windows XP Professional/Windows XP Home Edition/Windows 2000 Professional/ Windows Millennium Edition/Windows 98 Second Edition Display High Color (16 bit) or higher, 800 600 dots or better (1024 × 768 dots or better is recommended.) Others - Internet access: for Web registration, EMD services and CDDB - Windows Media Player (version 7.0 or higher) installed for playing WMA les Notes- SonicStage is not supported by the following environments: – Operating systems other than those the indicated above – Personally constructed PCs or operating systems – An environment that is an upgrade of the original manufacturer-installed operating system – Multi-boot environment – Multi-monitor environment – Macintosh - We do not guarantee trouble-free operation on all computers that satisfy the system requirement.- The NTFS format of Windows XP/Windows 2000 Professional can be used only with the standard (factory) settings. - For Windows 2000 Professional users, install Service Pack 3 or later version before using the software.- We do not guarantee trouble-free operation of the system suspend, sleep, or hibernation function on the computers.
