Extracted text from sony nw a 1000 service manual (Ocr-read)

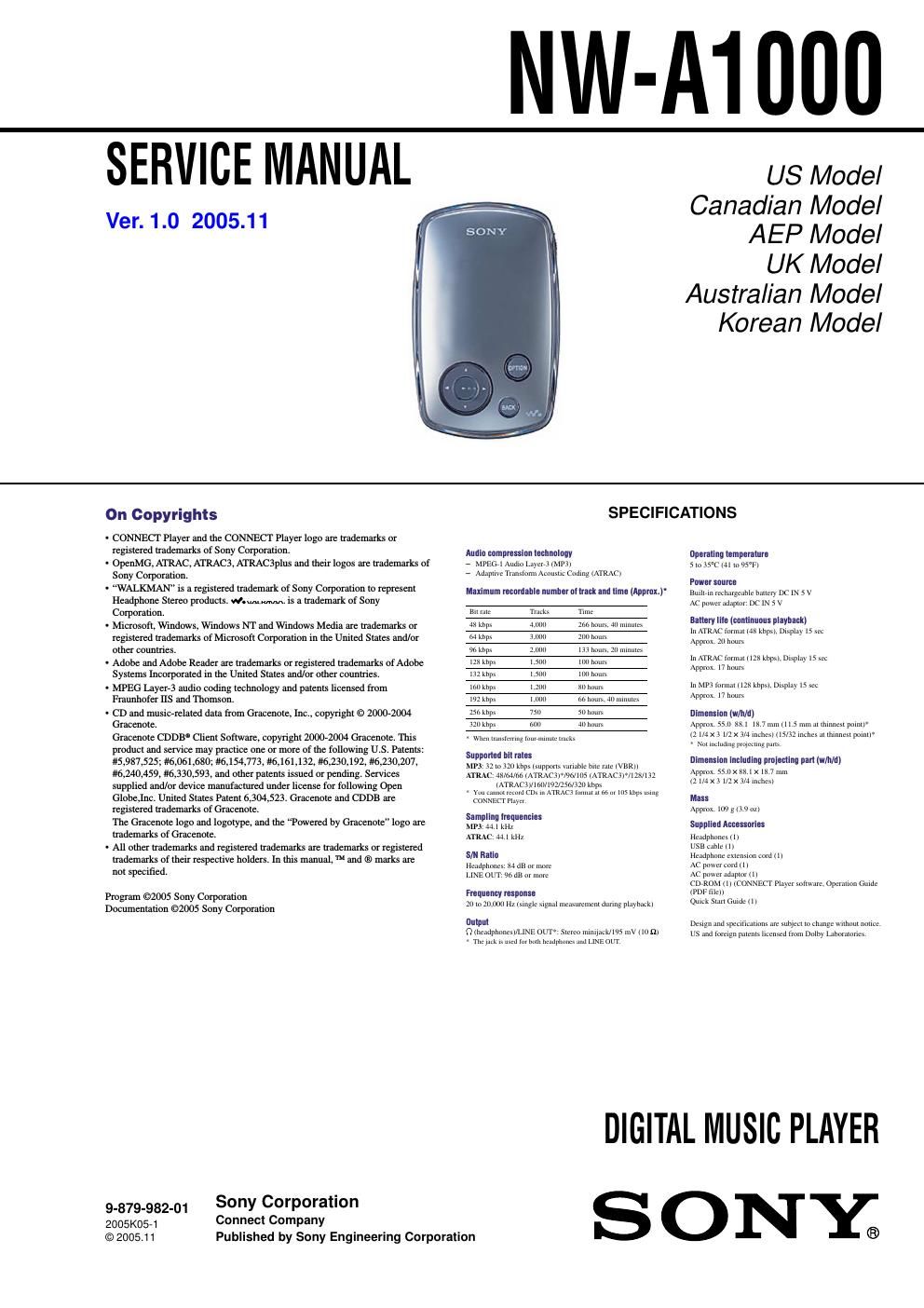

Page 1
2 NW-A1000 TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 5 3-2. Cabinet (Lower) ............................................................... 5 3-3. Lithium Ion Battery ......................................................... 6 3-4. Cabinet (Inner) ................................................................ 6 3-5. EL Block Sub Assy .......................................................... 7 3-6. MAIN Board .................................................................... 7 3-7. Position of Ferrite Core ................................................... 8 4. TEST MODE .............................................................. 9 5. DIAGRAMS 5-1. Block Diagram – MAIN Section (1/2) – ......................... 20 5-2. Block Diagram – MAIN Section (2/2) – ......................... 21 5-3. Block Diagram – POWER SUPPLY Section – ............... 22 5-4. Printed Wiring Board – MAIN Board (Component Side) – ............................... 24 5-5. Printed Wiring Board – MAIN Board (Conductor Side) – ................................. 25 5-6. Schematic Diagram – MAIN Board (1/8) – .................... 26 5-7. Schematic Diagram – MAIN Board (2/8) – .................... 27 5-8. Schematic Diagram – MAIN Board (3/8) – .................... 28 5-9. Schematic Diagram – MAIN Board (4/8) – .................... 29 5-10. Schematic Diagram – MAIN Board (5/8) – .................... 30 5-11. Schematic Diagram – MAIN Board (6/8) – .................... 31 5-12. Schematic Diagram – MAIN Board (7/8) – .................... 32 5-13. Schematic Diagram – MAIN Board (8/8) – .................... 33 6. EXPLODED VIEW 6-1. Cabinet Section ................................................................ 48 6-2. MAIN Section ................................................................. 49 7. ELECTRICAL PARTS LIST ................................ 50 Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 ˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS Q UE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Page 2
3 NW-A1000 NOTES ON REPLACEMENT OF HDD UNIT In this set, there are two kinds of HDD unit. (Refer to the figure below) Though either of parts for the repair is supplied, there is no problem on the function even if which HDD unit is installed in the set. – HITACHI type – – Seagate type – SECTION 1 SERVICING NOTES UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. NOTES ON REPLACEMENT OF CSP (CHIP SIZE PA CKAGE) IC Replacement of CXR710160-215GH (IC3101), S1R72003BOOA100 (IC5001), SCF5250 (IC6005) , EDS1216AABH-75-E/KM (IC7001), LC4128ZC-75MN132C (IC8001) and µPD68855 (IC9001) used in this set requires a special tool. COLOR VARIATION VIOLET SILVER BLUE PINK BLACK GOLD US zz zzzz Canadianzz zz AEPzz zzzz UKzz zzzz Australianzz zz Kor ean zz zz
