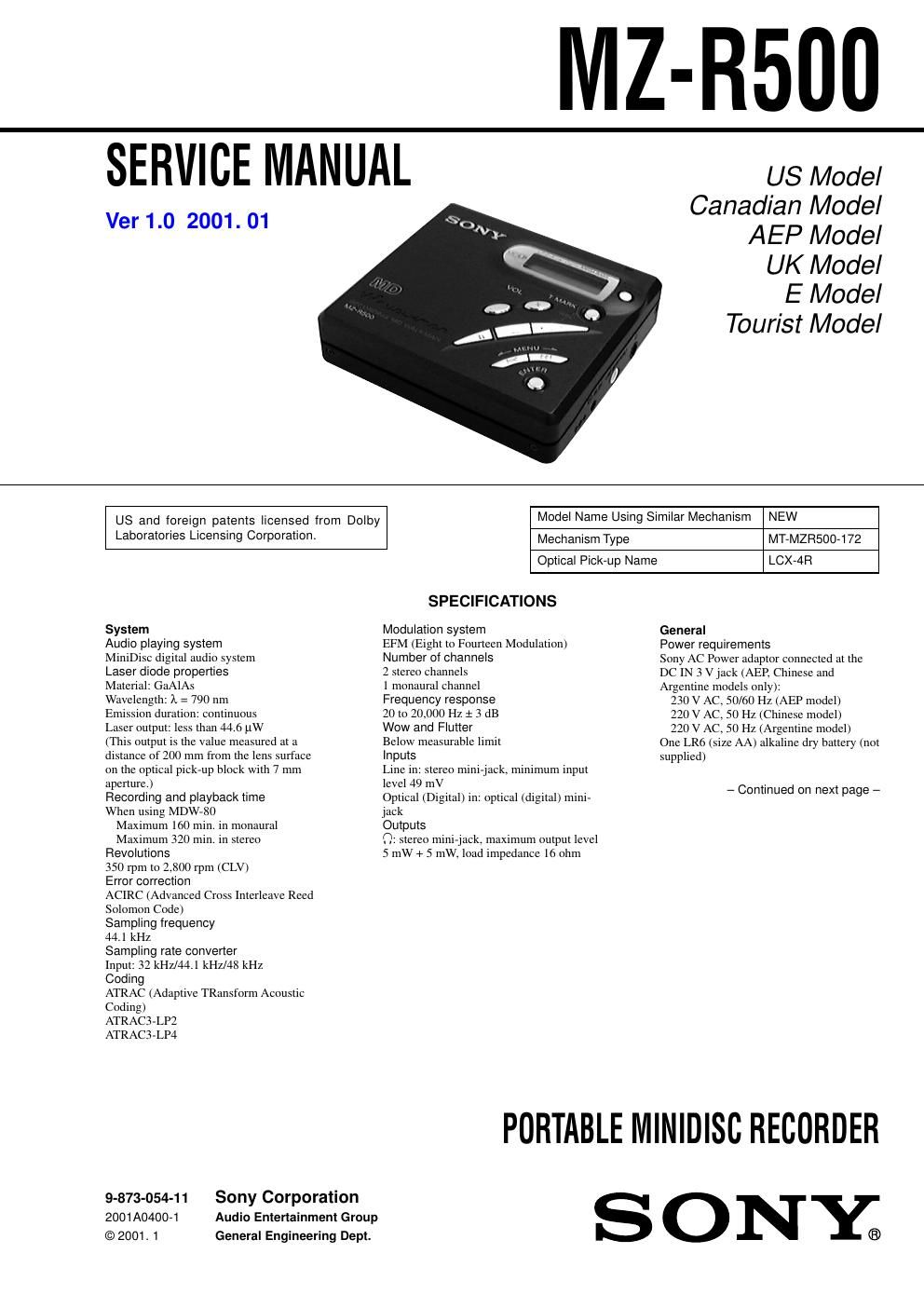

Sony mz r 500 ver 1 0

Page 1

2 Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270°C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Battery operation time Battery life 1) (Unit: approx.hours) (EIAJ 2)) LR6 (SG) alkaline dry battery 3) Normal LP2 LP4 Recording 4) 7.5 10 13.5 Playback 36 42 48 1)The battery life may be shorter due to operating conditions, the temperature of the location, and varieties of batteries. 2)Measured in accordance with the EIAJ (Electronic Industries Association of Japan) standard. 3)When using a Sony LR6 (SG) STAMINA alkaline dry battery (produced in Japan). 4)To prevent interrupted recording due to drained battery, use new battery for recording operations. Dimensions Approx. 83.0 × 27.8 × 75.8 mm (w/h/d) (3 3/8 × 1 1/8 × 3 in.) without projections. Mass Approx. 113 g (4.0 oz) the recorder only Supplied accessories AC power adaptor (AEP, Chinese and Argentine models only) (1) Headphones/earphones (1) Optical cable (AEP, Chinese and Argentine models only) (1) Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. MZ-R500 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
