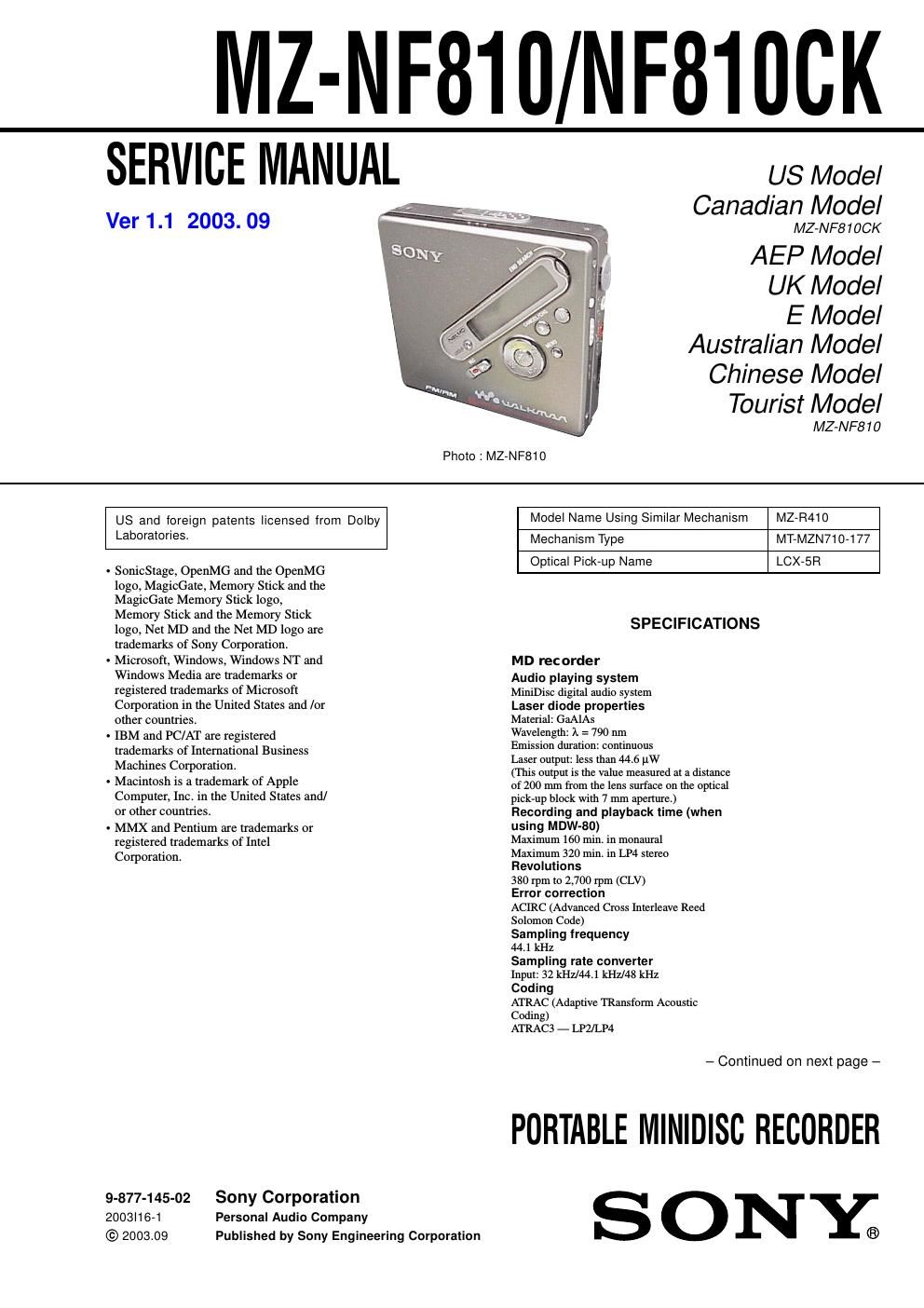

Page 1
2 MZ-NF810/NF810CK Radio Frequency rangeUSA model:FM: 87.5 - 108.0 MHz AM: 530 - 1,710 kHz (10 kHz step) 531 - 1,710 kHz (9 kHz step) TV: 2 - 13 CH WEAT HER: 1 - 7 CH Canadian model: FM: 87.5 - 108.0 MHz AM: 530 - 1,710 kHz (10 kHz step) 531 - 1,710 kHz (9 kHz step) AntennaFM/TV/WEATHER:Headphones/earphones cord antenna AM: Built-in fe rrite bar antenna General Po wer requirementsSony AC Power Adaptor connected at the DC IN 3V jack: 120 V AC, 60 Hz (Models for USA, Canada, Mexico, and Taiwan) 230 V AC, 50/60 Hz (Models for continental Europe and Chili) 240 V AC, 50 Hz (Model for Australia) 220 V AC, 50 Hz (Model for China) 230 V AC, 50 Hz (Models for U.K. and Hong Kong) 220 V AC, 60 Hz (Model for Korea) 100 - 120 V/220 - 240 V AC, 50/60 Hz (Other m odels) The r ecorder: Nickel metal hydride rechargeable battery NH-10WM 1.2V 900 mAh (MIN) Ni-MH LR6 (size AA) alkaline battery Ba tter y charging stand: AC power ad aptor DC 3V DimensionsApprox. 81.0 × 74.4 × 20.0 mm (w/h/d) (31/4 × 3 × 13/16 in.) MassApprox. 108 g (3.8 oz) the recorder only 1)The LI NE IN (OPTICAL) jack is used to connect either a digital (optical) cable or a line (anal og) cable. 2)The i jack connects either headphones/ ear phones or a line cable. 3)Me asured in accordance with JEITA. Car kit Car connecting packFr equency response: 50 to 20,000Hz (Differs dependi ng on your car cassette deck) Dimensions: Approx. 102.4 × 12.1 × 63.8 mm (w/h/d) (4 1/8 × 1/2 × 2 5/8 in.) Mass: Approx. 42 g (1.5 oz) Co rd length: Approx. 1.5 m Car battery cordInput vo ltage: DC 12 V/24 V (only for negative # ground cars) Rated output voltage: DC 3.0 V Rated output current: 1,000 mA Dimensions: Approx. 36.0 × 26.2 × 101.1 mm (w/h/d) (1 7/16 × 1 1/16 × 4 in.) including projecting parts Mass: Approx. 60 g (2.2 oz) Co rd length: Approx. 1.5 m US and foreign patents licensed from Dolby Laborato ries. Design and specifications are subject to change wi thout notice. When playing (Unit: approx.hours)(JEITA) When using the radio (Unit: approx.hours)(JEITA) NoteWhen you use the radio, it is recommended that yo u us e a fully charged rechargeable battery or a new dry battery since more power is c onsumed by the radio than by MD playback. When to replace the batteries When the dry battery or rechargeable battery is we ak, flashing r or L OW BATT a ppears in the display. Replace the dr y ba ttery or charge the rechargeable ba ttery. The battery leve l indicator is approximate. It may be more or less than the indication dependi ng on the operating condition. NoteStop the recorder before replacing battery. Ba Supplied accessories ttery life The battery life may be shorter due to operating conditions, the temperature of the location , or alkaline dry battery you use. Wh en recording (Unit: approx.hours)(JEITA 1)) 1)Measured in accordance with the JEITA (Japan Electronics and Information Technolo gy Industries Asso ciation) standard. Batteries SP StereoLP2 Stereo LP4 Stereo Nick el metal hydride rechargeable ba ttery 2) 2)Wh en us ing a 100% fully charged nickel metal hydride rechargeable battery (NH-10WM). 79 12 LR6 Sony alkaline dry ba ttery 3) 3)When usin g a Sony LR6 (SG) STAMINA al kaline dry battery (produced in Japan). 12 15 18.5 Nick el metal hydride rechargeable ba ttery + One LR6 22 30 35 Batteries SP StereoLP2 Stereo LP4 Stereo Nick el metal hydride rechargeable ba ttery 17 21 23.5 LR6 Sony alkaline dry ba ttery 38 44 50.5 Nick el metal hydride rechargeable ba ttery + One LR6 57 66.5 73.5 Batt eries FM/ AMTV/Wb (wea ther) (USA mode l only) Nickel metal hydride rechargeable battery 99 LR6 (SG) Sony alkaline dry battery 18.5 17 Nickel metal hydride rechargeable battery + One LR6 (SG) 29 23 M odulation systemEFM (Eight to Fourteen Modulation)Fr equency response20 to 20,000 Hz ± 3 dBInputs 1) MIC: st ereo mini-jack (m inimum input level 0.12 mV) Line in: stereo mini-jack for analog input (minim um input level 49 mV) optical (digital) mini-jack for optical (digital) input Outputsi : stereo mini-jackMaximum output level5 mW + 5 mW; load impedance 16 Ω Optical cable (1) CD-ROM (SonicStage Ver. 1.5) (1) ∗ Car battery cord (1) Car connecting pack (1) Carryi ng case with Velcro strips (1) Carrying case wi th a belt clip (1) (Canadian model only) ∗ Do not play a CD-ROM on an audio CD player. AC p ower ad aptor (1) Battery charging stand (1) Headphones with a remote control (1) (for USA model) NH-10 WM Nickel metal hydride rechargeable battery (1) Dedi cated USB cable (1) Battery ca rrying case (1) Dry batter y case (1) Rota ry commander (1) Earphones with a remote control (1) (for Ca nadian model)
Page 2
3 MZ-NF810/NF810CK TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow........................................................... 6 3-2. Case (Lower) ................................................................... 7 3-3. MAIN Board, Battery Case............................................ 7 3-4. Panel (Upper) Section..................................................... 8 3-5. LCD Module, Panel Upper Block.................................. 8 3-6. Mechanism Deck (MT-MZN710-177)........................... 9 3-7. OP Service Assy (LCX-5R)............................................ 10 3-8. Holder Assy ..................................................................... 11 3-9. DC Motor (Sled) (M602)................................................ 11 3-10. DC Motor (Over Write Head Up/Down) (M603), DC SSM18B Motor (Spindle) (M601)........................... 12 4. TEST MODE ............................................................... 13 5. ELECTRICAL ADJUSTMENTS .......................... 18 6. DIAGRAMS 6-1. Block Diagram ................................................................ 37 6-2. Note for Printed Wiring Board and Schematic Diagrams ....................................................... 38 6-3. Printed Wiring Board – MAIN Board (Side A) –............................................. 39 6-4. Printed Wiring Board – MAIN Board (Side B) –............................................. 40 6-5. Schematic Diagram – MAIN Board (1/4) –.................. 41 6-6. Schematic Diagram – MAIN Board (2/4) –.................. 42 6-7. Schematic Diagram – MAIN Board (3/4) –.................. 43 6-8. Schematic Diagram – MAIN Board (4/4) –.................. 44 6-9. IC Pin Function Description........................................... 50 7. EXPLODED VIEWS 7-1. Case Section .................................................................... 56 7-2. Chassis Section ............................................................... 57 7-3. MAIN Board Section...................................................... 58 7-4. Mechanism Deck Section-1 (MT-MZN710-177) ........... 59 7-5. Mechanism Deck Section-2 (MT-MZN710-177) ........... 60 8. ELECTRICAL PARTS LIST .................................. 61 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement -N ever reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing -K eep the temperature of the soldering iron around 270 ˚C dur- ing repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C . Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. On power sources -Use house current, nickel metal hydride rechargeable battery, LR6 (size AA) battery, or car battery. - For use in your house: For the supplied battery charging stand, use the AC power adaptor s upplied with this recorder. Do not use any other AC power adaptor since it may cause the recorder to ma lfunction. -C onnect the AC power adaptor to an easily accessible AC outlet. Should you notice an abnormality in the AC power adaptor, disc onnect it from the AC outlet immediately. - The recorder is not disconnected from the AC power s ource (mains) as long as it is connected to the wall outlet, even if the recorder itself has been turned off. - If you are not going to use this recorder for a l ong time, be sure to disconnect the power s upply (AC power adaptor, dry battery, rechargeable battery, or car battery cord). To remove the AC power adaptor from the wall outlet, grasp the adaptor plug itself; never pull the cord. Polarity of the plug SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PA RTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUM- BERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLE- MENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
