Sony mz n 710 service manual
This is the 66 pages manual for sony mz n 710 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mz n 710 service manual (Ocr-read)

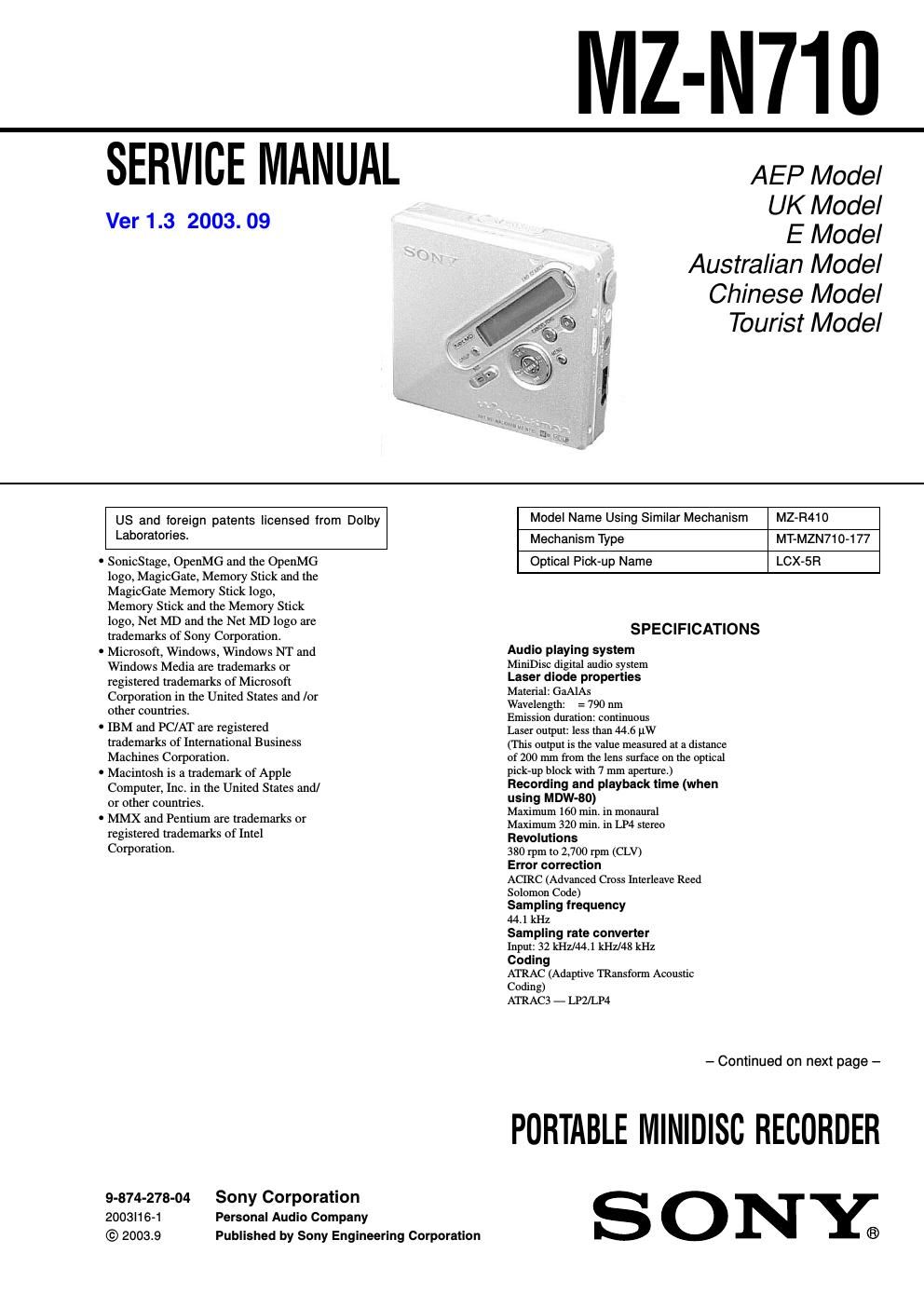

Page 1
2 MZ-N710 Modulation systemEFM (Eight to Fourteen Modulation)Frequency response20 to 20,000 Hz ± 3 dBInputs 1) MIC: stereo mini-jack (minimum input level 0.12 mV) Line in: stereo mini-jack for analog input (minimum input level 49 mV) optical (digital) mini-jack for optical (digital) input Outputsi: stereo mini-jackMaximum output level1.2 mW + 1.2 mW; load impedance 16 Ω (European models) 5 mW + 5 mW; load impedance 16 Ω (Other models) The recorder: Nickel metal hydride rechargeable battery NH-10WM 1.2V 900 mAh (MIN) Ni-MH LR6 (size AA) alkaline battery Battery charging stand: AC power adaptor DC 3V DimensionsApprox. 81.0 × 74.4 × 20.0 mm (w/h/d) (31/4 × 3 × 13/16 in.) Mas Supplied accessoriessApprox. 108 g (3.8 oz) the recorder only1)The LINE IN (OPTICAL) jack is used to connect either a digital (optical) cable or a line (analog) cable. 2)The i jack connects either headphones/ earphones or a line cable. 3)Measured in accordance with JEITA. US and foreign patents licensed from Dolby Laboratories. Design and specifications are subject to change without notice. Optical cable (1) CD-ROM (SonicStage Ver. 1.5) (1)* Carrying pouch or carrying case with a belt clip (1) ∗Do Design and apecifications are subject to change without notice. not play a CD-ROM on an audio CD play AC p ower a daptor (1) Battery charging stand (1) Headphones/earphones with a remote control (1)NH-10WM Nickel metal hydride rechargeable battery (1) Dedicated USB cable (1) Battery carrying case (1) Dry battery case (1)When to replace the batteries When the dry battery or rechargeable battery is weak, flashing r or LOW BATT appears in the display. Replace the dry battery or charge the rechargeable battery. The battery level indicator is approximate. It may be more or less than the indication depending on the operating condition. NoteStop the recorder before replacing battery. Battery life The battery life may be shorter due to operating conditions, the temperature of the location, or alkaline dry battery you use. When recording (Unit: approx.hours)(JEITA 1)) 1)Measured in accordance with the JEITA (Japan Electronics and Information Technology Industries Association) standard. Batteries SP StereoLP2 StereoLP4 Stereo Nickel metal hydride rechargeable battery 2) 2)When using a 100% fully charged nickel metal hydride rechargeable battery (NH-10WM). 7.5 9.5 13 LR6 Sony alkaline dry battery 3) 3)When using a Sony LR6 (SG) STAMINA alkaline dry battery (produced in Japan). 12.5 16 19 Nickel metal hydride rechargeable battery + One LR626 34 41 When playing (Unit: approx.hours)(JEITA) Batteries SP StereoLP2 StereoLP4 Stereo Nickel metal hydride rechargeable battery19.5 23 27 LR6 Sony alkaline dry battery42 48 56 Nickel metal hydride rechargeable battery + One LR663 70 85 Power requirementsSony AC Power Adaptor connected at the DC IN 3V jack: 120 V AC, 60 Hz (Models forMexico, Taiwan) 230 V AC, 50/60 Hz (Models for continental Europe, Singapore and Thailand) 240 V AC, 50 Hz (Model for Australia) 220 V AC, 50 Hz (Model for China) 230 - 240 V AC, 50 Hz (Models for U.K. and Hong Kong) 220 V AC, 50 Hz (Model for Argentine) 100 - 240 V AC, 50/60 Hz (Other models) and SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Ver 1.1 2003.02
Page 2
