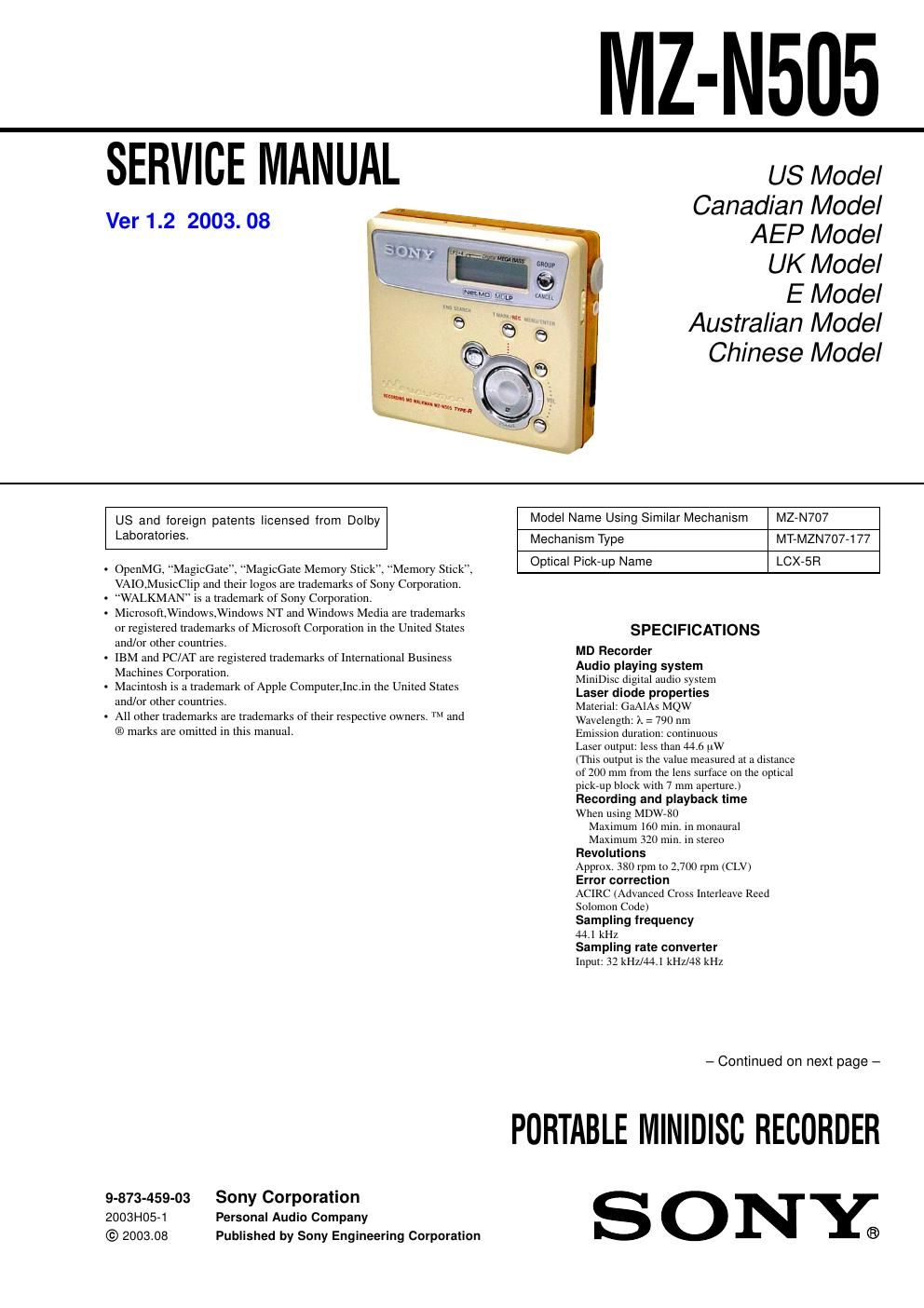

Sony mz n 505 service manual
This is the 66 pages manual for sony mz n 505 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mz n 505 service manual (Ocr-read)
Page 1
2 MZ-N505 General Power requirements Sony AC Po wer Adaptor (supplied) connected at the DC IN 3 V jack (country model in parentheses): Nickel Cadmium rechargeable battery NC- WM AA (except US and Canadian models supplied) LR6 (size AA) alkaline battery (not supplied) DimensionsApprox. 81 × 27.9 × 74.4 mm (w/h/d) (3 1/4 × 1 1/8 × 3 in.) without projections. MassApprox. 104 g (3.7 oz) the recorder only Design and specifications are subject to change without notice. Supplied accessories NC-WMAA Nickel Cadmium rechargeable ba (except US and Canadian models) (1) ttery AC power ad aptor (1) Headph ones/earphones (1) Op Remote control (except US and Canadian models) (1) tical cable (except US and Canadian models) (1) USB cabl e (1) Ba ttery carrying case (except US and Canadian models) (1) Carrying case with a belt clip (European model only) (1) C Minidisc (blank) (US and Canadian models only) (1) D-ROM (1)* ∗Do not play a CD-ROM on an audio CD player. Battery life 1) When recording 2) (Unit: approx.hours)(JEITA 3)) 1)The battery life may be shorter due to operating conditions, the temperature of the location, and va rieties of batteries. 2)When you record, use a fully charged re chargeable battery. Recording time may diff er according to the alkaline batteries. 3)Measur ed in accordance with the JEITA (Japan Electronics and Information Technology I ndustries Association) standard. Batteries SP StereoLP2 Stereo LP4 Stereo NC-WMAA Nickel Cadmium rechargeable battery 4) 4)Wh en us ing a 100% fully charged rechargeable battery. 46 7.5 LR6 (SG) Sony al kaline dry battery 5) 5)When using a Sony LR6 (SG) STAMINA alkaline dry battery (produced in Japan). 91316 When playing (Unit: ap prox.hours)(JEITA 1)) Batteries SP StereoLP2 Stereo LP4 Stereo NC-WMAA Nickel Cadmium rechargeable battery 2) 15 16 20 LR6 (SG) Sony alkaline dry battery 3) 42 48 56 1)Measur ed in accordance with the JEITA (Japan Electronics and Information Te chnology Industries Association) standard. 2)When using a 100% fully charged rech argeable battery. 3)When using a Sony LR6 (SG) STAMINA alkali ne dry battery (produced in Japan). Coding AT R A C ( A d a ptive TRansform Acoustic Coding) AT R A C 3 - LP2/LP4 Modulation systemEFM (Eight to Fourteen Modulation)Number of channels2 stereo channels 1 monaural channel Fr equency response20 to 20,000 Hz ± 3 dBWo w and FlutterBelow measurable limitInputsLine in: stereo mini-jack, minimum input level 49 mV Opti cal (Digital) in: optical (digital) mini-jack Outputsi: stereo mini-jack, maximum output level 5 mW + 5 mW, load impedance 24 ohm (US model only) 5 mW + 5 mW, load impedance 16 ohm (except US model) 120 V AC, 60 Hz (USA, Canada and Ta i w a n ) 230 V AC, 50/60 Hz (Continental Europe) 240 V AC, 50 Hz (Australia) 220 V AC, 50 Hz (China) 230 - 240 V AC, 50 Hz (UK and Hong Kong) 110/220 V AC, 60 Hz (Korea) 100 - 240 V AC, 50/60 Hz (Other countries) SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. A TTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU D ANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. Ver 1.1
Page 2
3 MZ-N505 TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 4 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Case (Lower) ................................................................... 7 3-3. Case (Upper) Section ...................................................... 7 3-4. LCD Module, Case (Upper) Sub Assy ........................... 8 3-5. Mechanism Deck (MT-MZN707-177) ........................... 8 3-6. Set Chassis (5188) Assy .................................................. 9 3-7. MAIN Board ................................................................... 9 3-8. OP Service Assy (LCX-5R) ............................................ 10 3-9. Holder Assy ..................................................................... 11 3-10. DC Motor (Sled) (M602) ................................................ 11 3-11. DC SSM18B Motor (Spindle) (M601), DC Motor (Over Write Head Up/Down) (M603) .......... 12 4. TEST MODE .............................................................. 13 5. ELECTRICAL ADJUSTMENTS ......................... 19 6. DIAGRAMS 6-1. Block Diagram – SERVO/USB Section – ...................... 32 6-2. Block Diagram – AUDIO Section – ............................... 33 6-3. Block Diagram – DISPLAY/KEY CONTROL/ POWER SUPPLY Section – ........................................... 34 6-4. Note for Printed Wiring Board and Schematic Diagrams ....................................................... 35 6-5. Printed Wiring Board – MAIN Board (Component Side) – ............................. 36 6-6. Printed Wiring Board – MAIN Board (Conductor Side) – ............................... 37 6-7. Schematic Diagram – MAIN Board (1/4) – .................. 38 6-8. Schematic Diagram – MAIN Board (2/4) – .................. 39 6-9. Schematic Diagram – MAIN Board (3/4) – .................. 40 6-10. Schematic Diagram – MAIN Board (4/4) – .................. 41 6-11. IC Pin Function Description ........................................... 48 7. EXPLODED VIEWS 7-1. Case Section .................................................................... 55 7-2. Chassis Section ............................................................... 56 7-3. MAIN Board Section ...................................................... 57 7-4. Mechanism Deck Section-1 (MT-MZN707-177) ........... 58 7-5. Mechanism Deck Section-2 (MT-MZN707-177) ........... 59 8. ELECTRICAL PARTS LIST ............................... 60 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C . Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. On power sources -Use house current, Nickel Cadmium rechargeable battery, LR6 (size AA) battery, or car battery. -For use in your house: Use the AC power adaptor supplied with this recorder. Do not use any other AC power adaptor since it may cause the recorder to malfunction. Polarity of the plug
