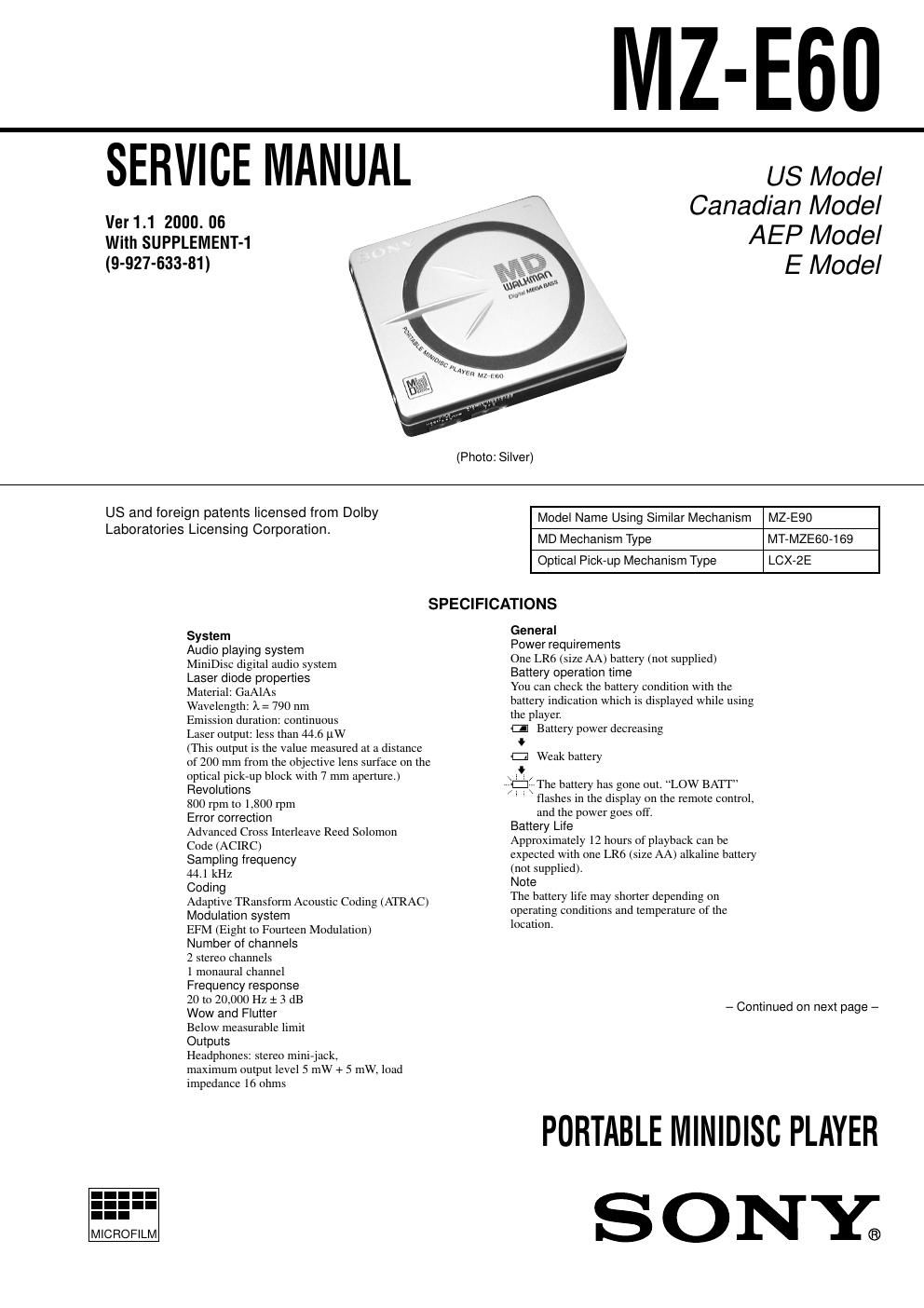

Sony mz e 60 service manual

Page 1

– 2 – SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270°C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Precautions for Laser Diode Emission Check When checking the emission of the laser diode during adjust- ments, never view directly downwards as this may lead to blindness. Precautions for Using Optical Pick-up (LCX-2E) As the laser diode inside the optical pick-up damages by static electricity easily, solder the laser tap of the Optical pick-up flexible board when handling. Also take the necessary measures to prevent damages by static electricity. Handle the Optical pick- up flexible board with care as it breaks easily. Laser tap Optical Pick-up flexible boardCAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT. MD WALKMAN is a trademark of Sony Corporation.This MiniDisc player is classi- fied as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the bottom exterior. Dimensions Approx. 81 × 25 × 74 mm (w/h/d) (3 1/4 × 1 × 3 in.) not including projecting parts and controls Mass Approx. 95 g (3.4 oz.) the player only Approx. 136 g (4.8 oz.) incl. a premastered MD and a LR6 (size AA) alkaline battery Supplied accessories Headphones with a remote control (1) Carrying pouch (1) Design and specifications are subject to change without notice. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
