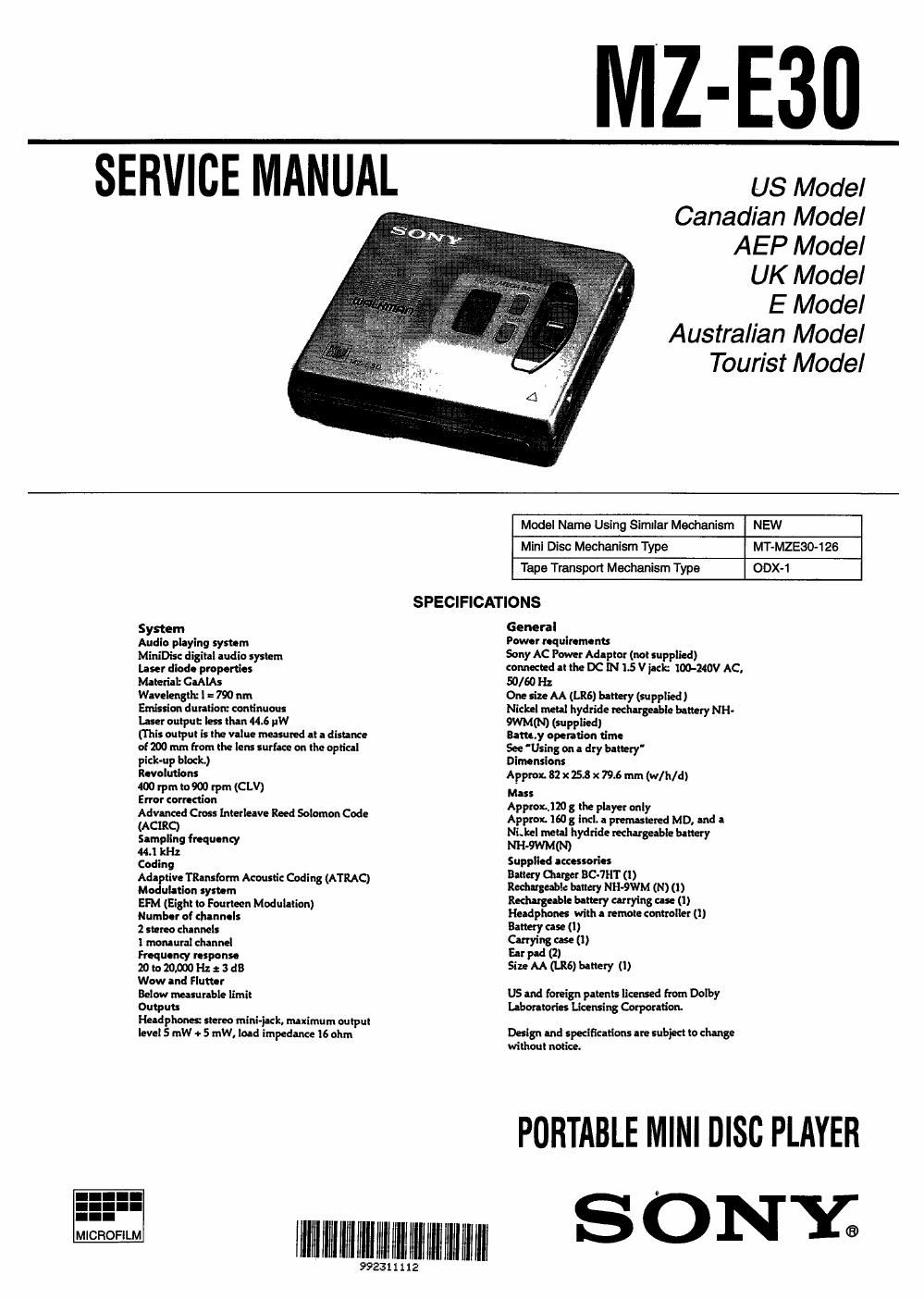

Page 1

EERVICE MANUAL

_ MZ-|_530

US Model

Canadian Model
AEP Model

UK Model
E Model

Australian Model
Tourist Model

System

Audio playing system

MiniDisc digital audio system

laser diode properties

Material: CaAlAs

Wavelength: l = 790 nm

Emission duration: continuous

Laser output: less than 44.6 "W

(This output the value mauled at a distance
of 200 mm from the lens surface on the optical
pick-up block.)

Revolutions

an rpm to rpm (CLV)

Error correction

Advanced Cross interleave Reed Solomon Code
(ACIRC)

Sampling frequency

«.1 kHz

Coding

Adaptive TRanstorm Acoustic Coding (ATRAQ
Modulation system

EFM (Eight to Fourteen Modulation)

Number of Channels

2 stereo channels

I monaurai channel

Frequency response

20 to mono Hz a 3 dB

Wow and Flutter

Below measurable limit

Outputs

Heade stereo miniiack. maximum output
level 5 mW + 5 mW, load impedance 16 ohm

lllllllll

iillililllllllmm

Model Name Using Similar Mechanism NEW
Mini Disc Mechanism Type MT-MZE30-1 26
Tape Transport Mechanism Type ODX-1
SPECIFICATIONS
General

Power nqulmmenu

Sony AC Power Adaptor (not supplied)
connected at the DC IN is V jack: IOU-MW AC.
50/60 Hz

One size M (LEG) battery (supplied)

Nickel metal hydride rechargeable battery NH-
9WM(N) (supplied)

Bailey operation time

See 'Using on a dry battery

Dimensions

Approx 82 at 25.8 x 79.6 mm (w/h/d)

Mass

ApproLJN g the player only

Approx. 1605 incl. a premnstcred MD, and a
NiJnel metal hydride rechargeable battery
NH-9WM(N)

Supplied accessories

Battery Glamor BC-lllT (I)

Rechargeable battery Nil-9W (N) (l)
Rechargeable battery carrying case (I)
Headphones with a remote controller (1)
Battery case (i)

Carrying use (1)

Far pad (2)

Size M (1116) battery (II

US and foreign patents licensed from Dolby
laboratories Licensing Corporation.

Design and specifications are subject to change
without notice.

PORTABLE MINI DISC PLAYER

SONY;
