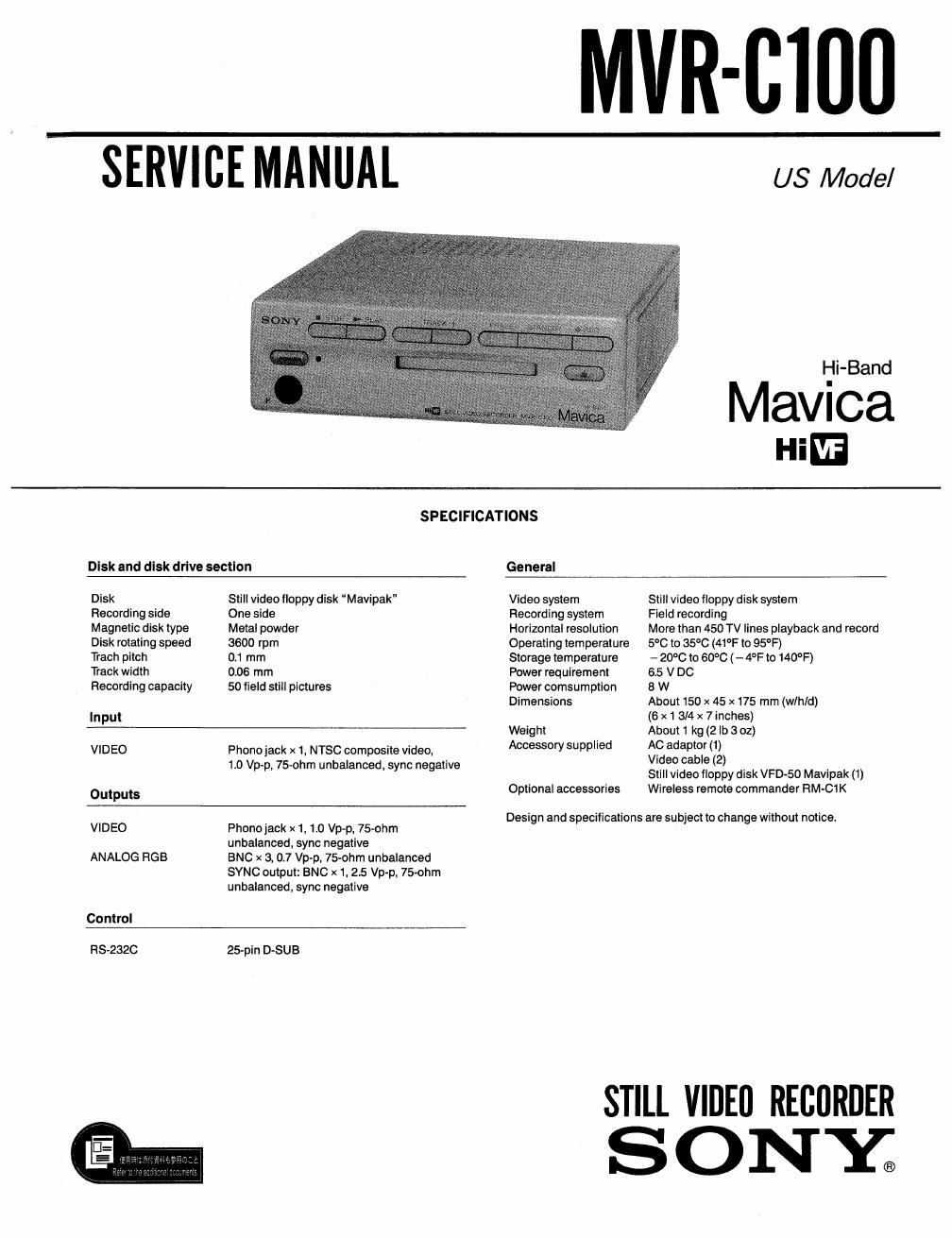

Page 1
MVR-CIIIII
SERVICE MANUAL
US Model
Hi-Band
Mavica
Him
SPECIFICATIONS
Disk and disk drive section General
Disk Still video Iloppy disk Mavipak Video system Still video floppy disk system
Recording side One side Recording system Field recording
Magnetic disk type Metal powder Horizontal resolution More than 450TV lines playback and record
Disk rotating speed 3600 rpm Operating temperature 5°C to 35°C (41°F to 95°F)
Trach pitch 0.1 mm Storage temperature - 20°C to 60°C ( - 4°F to 140°F)
Track width 0.06 mm Power requirement 65 V DC
Recordlng capacity 50 field still pictures Power comsumption 8 W
Dimensions About 150 x 45 x175 mm (w/h/d)
Input (6 x1 3/4 x 7 inches)
Weight About 1 kg (2 lb 3 oz)
VIDEO Phonoiack x 1, NTSC composite video, Access PPM: $332332)
10 V ,75-ohm nbalanced, 5 nc ne at' e
W u y g 'V Still video floppy disk VFD-SO Mavipak (1)
Outputs Optional accessories Wireless remote commander RM-C1K
Design and specifications are subject to change without notice.
VIDEO Phonojack x 1, 1.0 Vp-p, 75-ohm
unbalanced, sync negative
ANALOG FIGB BNC x 3, 0.7 Vp-p, 75-ohm unbalanced
SYNC output: ENC x 1. 25 Vp-p, 75-ohm
unbalanced, sync negative
Control
IRS-2320 25pm D-SUB
STILL vau RECORDER
SONE
