Sony mv 101 service manual
This is the 31 pages manual for sony mv 101 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mv 101 service manual (Ocr-read)

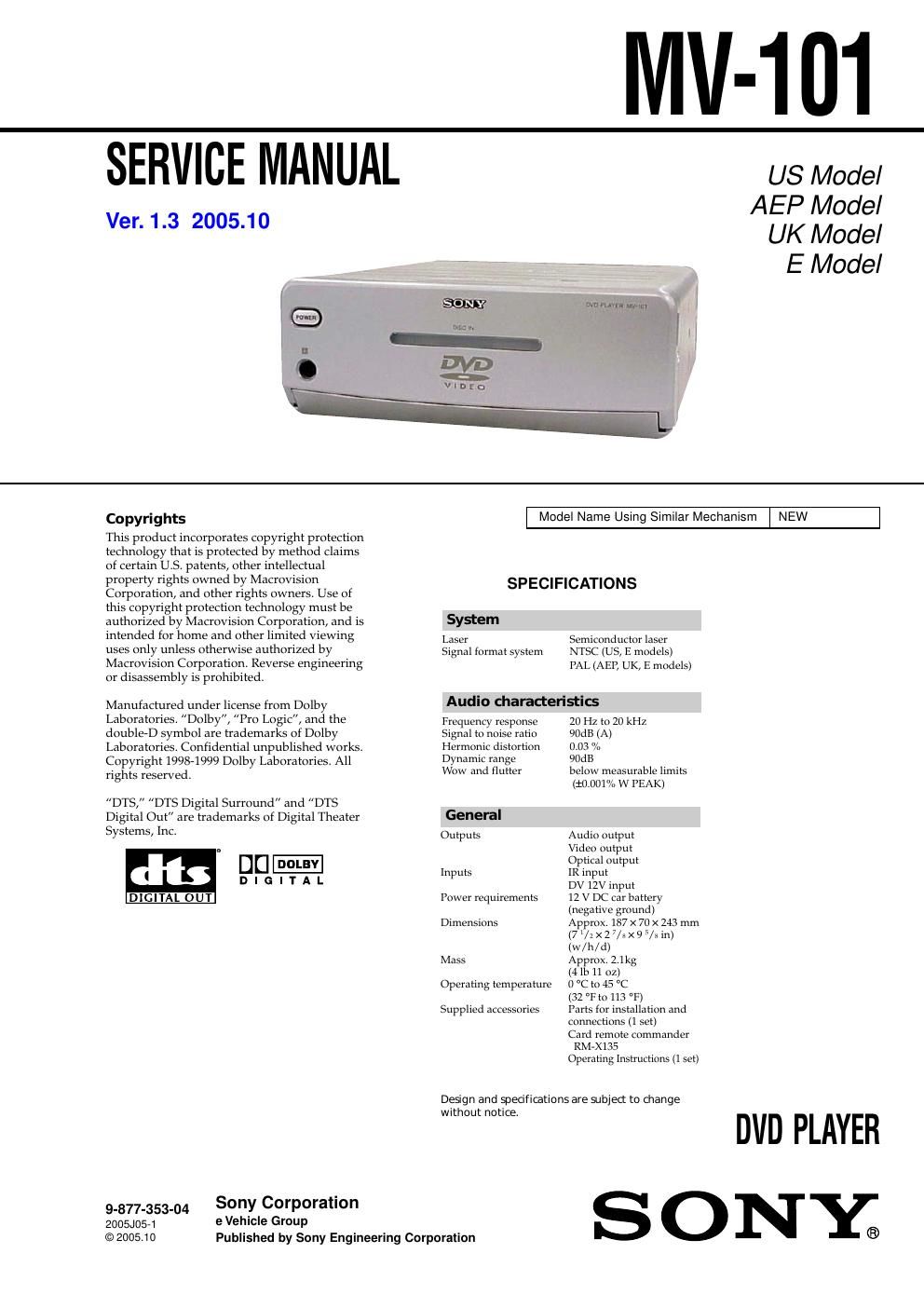

Page 1
2 MV-101 TABLE OF CONTENTS SERVICING NOTES ............................................... 3 1. GENERAL ................................................................... 4 Location of Controls ....................................................... 4 2. DISASSEMBLY 2-1. Disassembly Flow........................................................... 8 2-2. Cabinet Fr ont Assy.......................................................... 8 2-3. Cabinet (Rear) ................................................................. 9 2-4. Case (Upper) ................................................................... 9 2-5. DVD MD Assy................................................................ 10 2-6. Chassis (MD) Assy......................................................... 10 2-7. SERVO Board, Mechanism Deck................................... 11 2-8. TD-S-TOP-CO VER........................................................ 11 2-9. Loading Mechanism Assy............................................... 12 2-10. Traverse Mechanism Assy .............................................. 12 3. DIAGRAMS 3-1. Note for Printed Wiring Boards and Schematic Diagrams ................................................ 13 3-2. Printed Wiring Boards – KEY Section –....................... 14 3-3. Schematic Diagrams – KEY Section –.......................... 15 3-4. Printed Wiring Board – POWER Section –................... 16 3-5. Schematic Diagram – POWER Section –..................... 17 4. EXPLODED VIEWS 4-1. Overall Section................................................................ 18 4-2. Cabinet Front Assy Section............................................ 19 4-3. Case (Lower) Assy Section............................................. 20 4-4. DVD MD Assy Section................................................... 21 4-5. Mechanism Deck Section-1............................................ 22 4-6. Mechanism Deck Section-2............................................ 23 4-7. Mechanism Deck Section-3............................................ 24 5. ELECTRICAL PARTS LIST ............................... 25 Notes on chip component replacement -Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing -K eep the temperature of the soldering iron around 270 ˚C dur- ing repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. T he laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. T he flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK Never look into the laser diode emission from right above when checking it for adjustment. It is feared that you will lose your sight. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges oc- cur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Ver 1.2
Page 2
3 MV-101 About discs this player can play This player can play 12 cm (4 7/10 in) disc only. -DVD -V ideo CD -A udio CD -C D-R/CD-RW Disc type Label on the disc DVD Videos Video CDs Audio CDs MP3 files Notes on CD-Rs (recordable CDs)/ CD-RWs (rewritable CDs) - Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit. -You cannot play a CD-R/CD-RW that is not finalized *. -You can play MP3 files recorded on CD- ROMs, CD-Rs, and CD-RWs. * A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player. Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable CDs) Ver 1.2 SERVICING NOTES For E model NTSC type and PAL type. T he type of an NTSC system and the type of a PAL system exist in E model. Please refer to the following figure about how to recognize. MODEL NO. DV D PLAYER DC:12 X NTSC: NTSC TYPE P AL: PAL TYPE – BACK VIEW –
