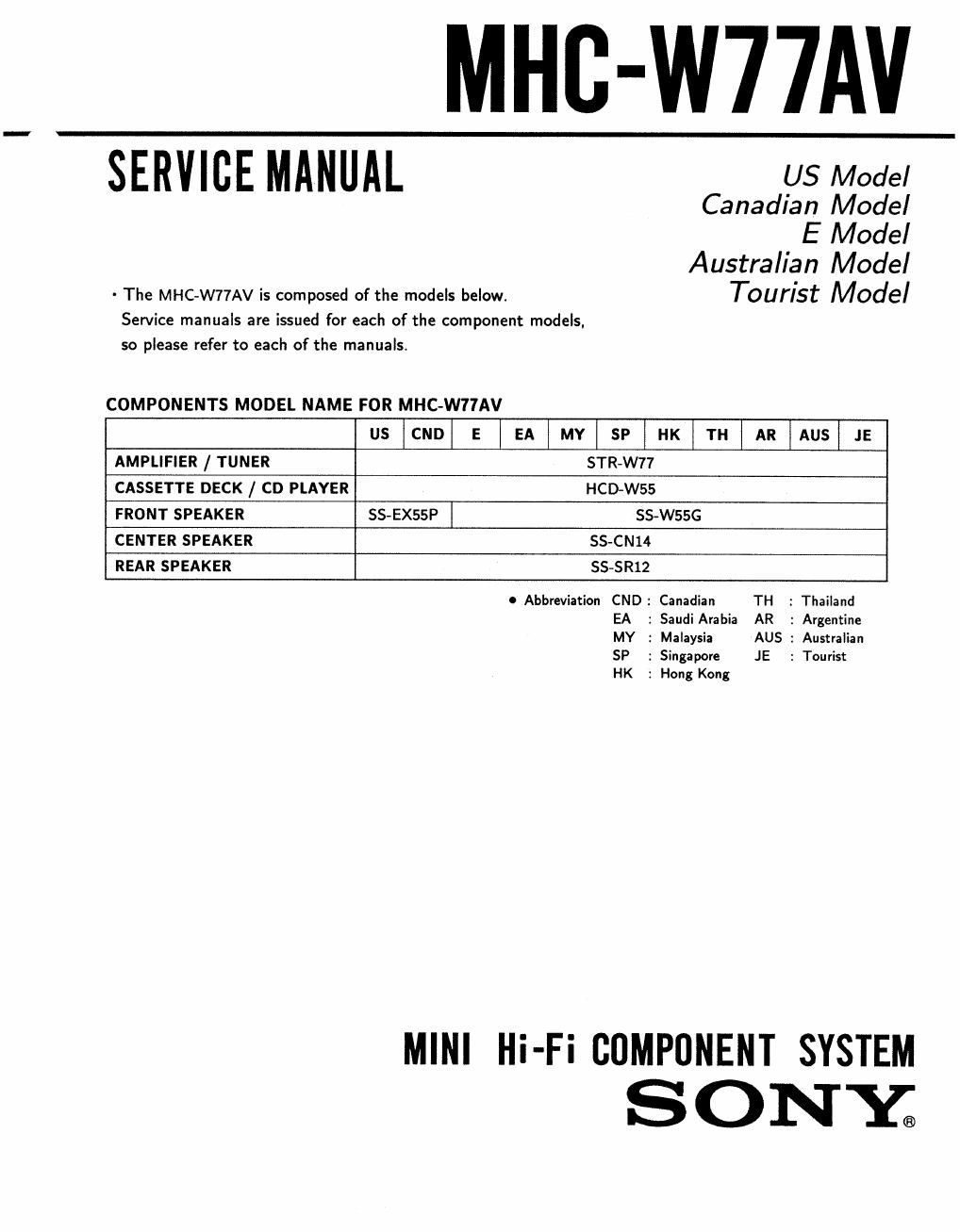

Page 1

MHC-W77AV

SERVICE MANUAL

US Model
Canadian Model
E Model
Australian Model

- The MHC-W77AV is composed of the models below. Tourist Model
Service manuals are issued for each of the component models,
so please refer to each of the manuaIs.

COMPONENTS MODEL NAME FOR MHC-W77AV

US CND E EA MY SP HK TH AR AUS JE
AMPLIFIER / TUNER STR-W77
CASSETTE DECK / CD PLAYER HCD-W55
FRONT SPEAKER SS~EX55P SS-WSSG
CENTER SPEAKER SS-CN14
REAR SPEAKER SS-SR12

O Abbreviation CND: Canadian TH : ThaiIand
EA : Saudi Arabia AR : Argentine
MY : Malaysia AUS : AustraIian
SP : Singapore JE : Tourist
HK : Hong Kong

MINI Hi-Fi COMPONENT SYSTEM
SONE

Page 2

PARTS LIST 0 Abbreviation

CND :Canadian TH :ThaiIand
EA :Saudi Arabia AR :Argentine
NOTE : MY : Malaysia AUS :AustraIian
0 Items marked " t " are not stocked since they are SP :Singapore JE :Tourist
seldom required for routine service. Some delay HK :Hong Kong
should be anticipated when ordering those items.
Part No. DescriEtion Remark

ACCESSORIES 84 PACKING MATERIALS

t::-IIttctxcttxtttttttttttttlttttttxxt

1-473-628-11 REMOTE COMMANDER (RM-5E3Av)
14301-59541 ANTENNA, FM

1.501-721-11 ANTENNA (LOOP)

1-751-347-11 CORD. CONNECTION (10m) (SS-SR12: us, CND)
1-769-307-11 CORD. SPEAKER (2m) (SS-EX55P)

1-769-433-11 CORD, SPEAKER (10m) (EXCEPT SS-SR122US, CND)
1~769~433~21 CORD. SPEAKER (2.5m) (SS-CNN)

1-775512-21 CORD, SPEAKER CONNECTION (SS-W556)
1-776-017-11 CORD (WITH CONNECTOR) (17p)

1.776.018-11 CORD (WITH CONNECTOR) (7P)

3-810-82341 MANUAL, INSTRUCTION (ENGLISH) (US, CND)

$810-$341 MANUAL, INSTRUCTION (FRENCH) (CND)

menu MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH. CHINESE) (E,EA,MY,SP,HK,AR,AUS)
3-810»823-41 MANUAL. INSTRUCTION (ARABIC) (E. EA)

3-810-823-51 MANUAL, INSTRUCTION (ENGLISH, CHINESE, PORTUGUESE, KOREAN) (JE)

3-856-52241 MANUAL. INSTRUCTION (ENGLISH. THAI) (TH)
+972-322-01 FOOT (Y)

4-979-069-01 CUSHION (STR) (FRONT)

4.979.070.01 CUSHION (STR) (REAR)

4-979071-01 CUSHION (HTC) (FRONT)

4.979.072.01 CUSHION (HTC) (REAR)
4-979-076-01 CUSHION (SW) (UPPER) (SS-W556)
44379-07101 CUSHION (SW) (LOWER) (SS-W55G)
4-981-643-01 COVER. BATTERY (for RM-SE3AV)

. 4-981-794~01 CUSHION (SN) (UPPER) (ss-CN14/SR12)

. 4981-795-01 CUSHION (SN) (LOWER) (ss-CN14/SR12)
A 4-981-796-01 CUSHION (sx5A) (UPPER) (SS~EX55P)
* 4-981-797-01 CUSHION (SXSA) (LOWER) (SS~EX55P)
* 44381-80001 INDIVIDUAL CARTON (US, CND)
* 4-981-801-01 INDIVIDUAL CARTON (E, EA, MY, SP, HK, AR, JE)
* 4-982-180-01 INDIVIDUAL CARTON (AUS)
#1 4-983-31501 INDIVIDUAL CARTON (TH)
Sony Corporation
Consumer A&V Products Company 96mg???
9-960-630-11 °'° V "Mum DV- Printed in Japan
©1996.3

-2- Published by Home AhV Products Div. Quality Engineering Dept.
