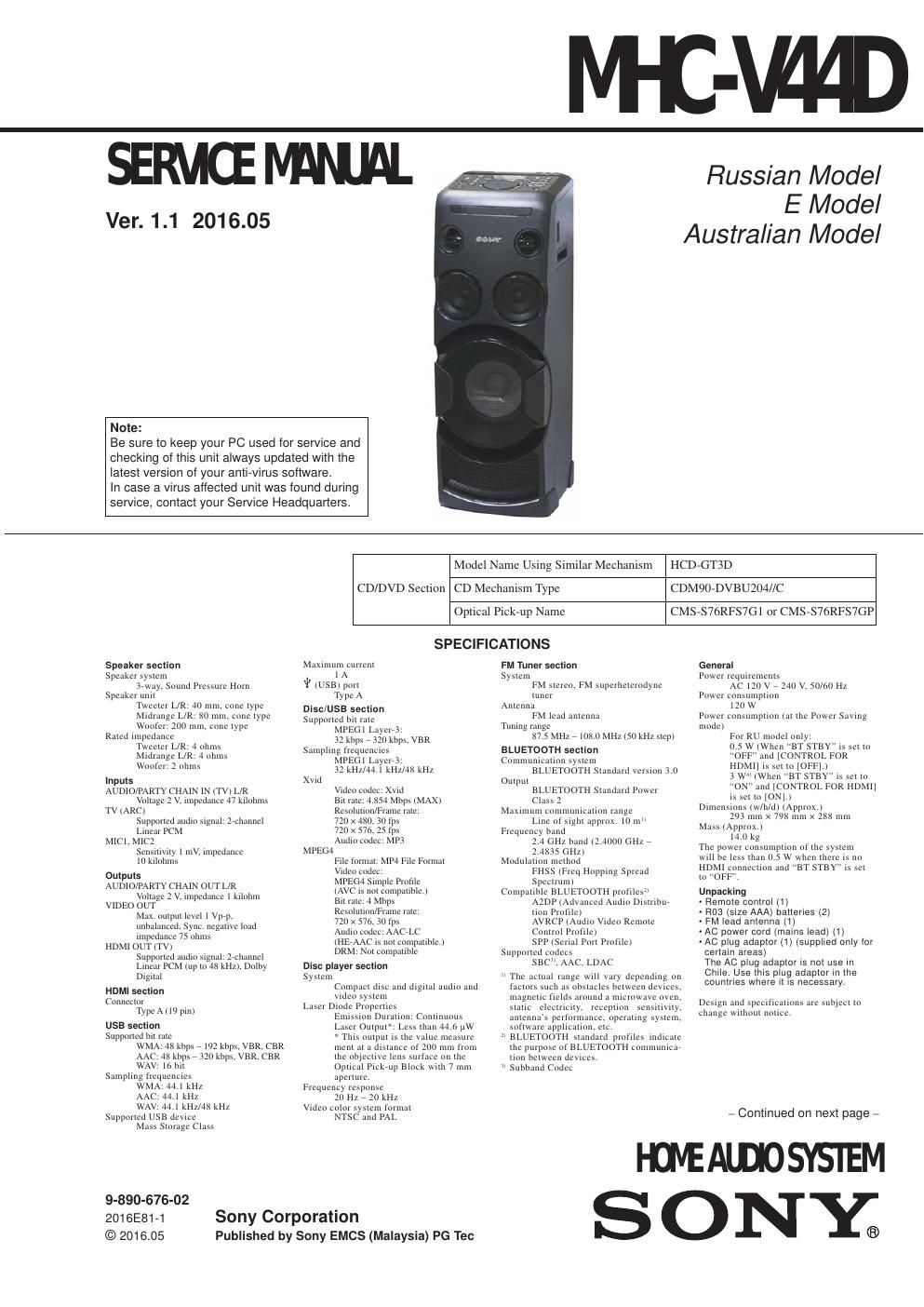

Sony mhc v 44d
This is the 62 pages manual for sony mhc v 44d.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mhc v 44d (Ocr-read)
Page 1
MHC-V44D 2 SAFETY-RELATED COMPONENT WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. NOTES ON CHIP COMPONENT REPLACEMENT - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. FLEXIBLE CIRCUIT BOARD REPAIRING - Keep the temperature of the soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) 1.5 kΩ 0.15 μF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. License and Trademark Notice - is a trademark of DVD Format/Logo Licensing Corporation. - DVD+RW, DVD-RW, DVD+R, DVD-R, DVD VIDEO, and the CD logos are trademarks. - MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. - Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. - This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. - WALKMAN and WALKMAN logo are registered trade- marks of Sony Corporation. - This system incorporates Dolby* Digital. * Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. - This system incorporates High-Definition Multimedia Interface (HDMI™) technology. The terms HDMI and HDMI High- Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - BRAVIA is a trademark of Sony Corporation. - LDAC™ and LDAC logo are trademarks of Sony Corporation. - The BLUETOOTH ® word mark and logos are registered trade- marks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. - The N Mark is a trademark or registered trademark of NFC Fo- rum, Inc. in the United States and in other countries. - Android™ is a trademark of Google Inc. - Google Play™ is a trademark of Google Inc. - Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. - Made for iPod and Made for iPhone mean that an electroni\ c accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. - THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (MPEG-4 VIDEO) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON- COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMER- CIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C. HTTP://WWW.MPEGLA.COM - All other trademarks are trademarks of their respective owners. - In this manual, ™ and ® marks are not specified. - Abbreviation AR : Argentina model AUS : Australian model E4 : African model E12 : 220-240 V AC area in E model E93 : 240 V AC area in E model LA9 : Latin-American model MY : Malaysia model RU : Russian model TH : Thai model Ve r. 1 . 1
Page 2
MHC-V44D 3 1. SERVICING NOTES ............................................. 4 2. DISASSEMBLY 2-1. Disassembly Flow ........................................................... 10 2-2. Side (L) Panel, Side (R) Panel ........................................ 11 2-3. Top Panel Section ........................................................... 11 2-4. Loading Panel Assy ........................................................ 12 2-5. CDM Section .................................................................. 13 2-6. Back Panel Section ......................................................... 14 2-7. DAMP Board .................................................................. 15 2-8. Bracket Chassis ............................................................... 16 2-9. MOTHERBOARD Board ............................................... 17 2-10. SMPS Board ................................................................... 18 2-11. Chassis ........................................................................\ .... 18 2-12. Front Panel Section ......................................................... 19 2-13. Loudspeaker (200 mm)-157-11 ...................................... 20 2-14. Loudspeaker (69 mm)-155-11 ........................................ 21 2-15. Service Optical Device (7G), Wire (Flat Type) .............. 22 3. TEST MODE ............................................................ 23 4. ELECTRICAL CHECK ......................................... 25 5. TROUBLESHOOTING .......................................... 26 6. DIAGRAMS ............................................................... 32 6-1. Block Diagram - CD/USB/HDMI Section - ................... 33 6-2. Block Diagram - MAIN Section - ................................... 34 6-3. Block Diagram - DAMP Section - .................................. 35 6-4. Block Diagram - PANEL/POWER SUPPLY Section - ............................ 36 6-5. Printed Wiring Board - MOTHERBOARD Board - ....... 38 6-6. Printed Wiring Board - DAMP Board - .......................... 39 6-7. Printed Wiring Board - STR Board - .............................. 40 6-8. Schematic Diagram - STR Board (1/2) - ........................ 41 6-9. Schematic Diagram - STR Board (2/2) - ........................ 42 6-10. Printed Wiring Board - SMPS Board - ........................... 43 6-11. Printed Wiring Board - MIC Board - .............................. 44 6-12. Schematic Diagram - MIC Board - ................................. 44 6-13. Printed Wiring Board - PARTY LED Board - ................ 45 6-14. Schematic Diagram - PARTY LED Board - ................... 45 6-15. Printed Wiring Board - IR Board - ................................. 45 6-16. Schematic Diagram - IR Board - .................................... 45 6-17. Printed Wiring Board - SPEAKER LED_R Board - ...... 46 6-18. Schematic Diagram - SPEAKER LED_R Board - ......... 46 6-19. Printed Wiring Board - SPEAKER LED_L Board -....... 46 6-20. Schematic Diagram - SPEAKER LED_L Board - ......... 46 TABLE OF CONTENTS 7. EXPLODED VIEWS 7-1. Side Panel Section .......................................................... 49 7-2. Loading Panel Section .................................................... 50 7-3. Back Panel Section ......................................................... 51 7-4. MOTHERBOARD Board Section .................................. 52 7-5. Chassis Section ............................................................... 53 7-6. Front Panel Section ......................................................... 54 7-7. Speaker Cabinet Section ................................................. 55 7-8. Top Panel Section ........................................................... 56 7-9. CDM Section .................................................................. 57 7-10. CD Mechanism Section(CDM90-DVBU204//C) ................................................. 58 8. ELECTRICAL PARTS LIST .............................. 59 Accessories are listed in the last part of the electrical parts list.
