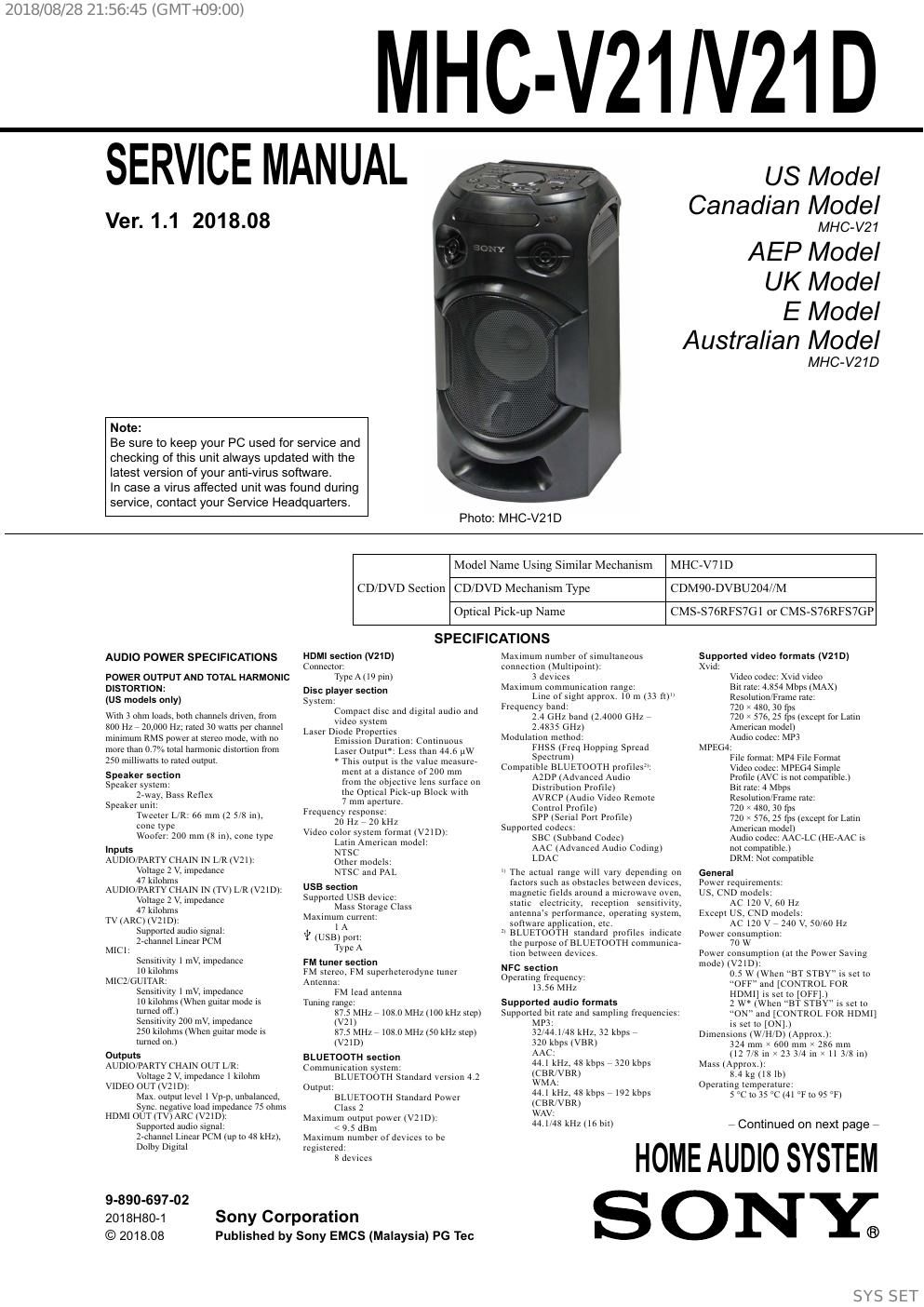

Sony mhc v 21 v 21d v 1 1
This is the 62 pages manual for sony mhc v 21 v 21d v 1 1.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mhc v 21 v 21d v 1 1 (Ocr-read)
Page 1
MHC-V21/V21D 2 SAFETY-RELATED COMPONENT WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. 1.5 kΩ 0.15 μF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. NOTES ON CHIP COMPONENT REPLACEMENT - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. FLEXIBLE CIRCUIT BOARD REPAIRING - Keep the temperature of the soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Ver. 1.1 * The power consumption of the system will be less than 0.5 W when there is no HDMI connection and BT STBY is set to OFF. Design and specifications are subject to change without notice. Unpacking - This unit (MHC-V21/V21D) (1) - Remote control (1) - R03 (size AAA) batteries (2) - FM lead antenna (1) - AC power cord (mains lead) (1) - AC plug adaptor* (1) (supplied only for certain areas) (V21D ) * This plug adaptor is not for the use in Chile, Paraguay and Uruguay. Use this plug adaptor in the countries where it is necessary. License and Trademark Notice - CD logo is trademark. - is a trademark of DVD Format/Logo Licensing Corporation. - DVD+RW, DVD-RW, DVD+R, DVD-R, DVD VIDEO, and the CD logos are trademarks. - WALKMAN ® and WALKMAN ® logo are registered trademarks of Sony Corporation. - MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. - Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. - This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technolog y outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. - This system incorporates Dolby* Digital. * Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. - This system incorporates High-Definition Multimedia Interfac e (HDMI™) technology. The terms HDMI and HDMI High- Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. - BRAVIA is a trademark of Sony Corporation. - LDAC™ and LDAC logo are trademarks of Sony Corporation. - The BLUETOOTH ® word mark and logos are registered trade- marks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. - The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. - Android is a trademark of Google LLC. - Google Play and the Google Play logo are trademarks of Google LLC. - Apple, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. - Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the develope r to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. - THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (MPEG-4 VIDEO) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON- COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMER- CIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C. HTTP://WWW.MPEGLA.COM - All other trademarks are trademarks of their respective owners. - In this manual, ™ and ® marks are not specified. S Y S S E T 2 0 1 8 / 0 8 / 2 8 2 1 : 5 6 : 4 5 ( G M T + 0 9 : 0 0 )
Page 2
MHC-V21/V21D 3 1. SERVICING NOTES ............................................. 4 2. DISASSEMBLY 2-1. Disassembly Flow ........................................................... 10 2-2. Side Panel L, R ............................................................... 11 2-3. Top Panel Section ........................................................... 12 2-4. Loading Panel Assy ........................................................ 13 2-5. CDM Section .................................................................. 14 2-6. CDM90-DVBU204//M ................................................... 15 2-7. Service, Optical Device (7G), Flexible Flat Cable ......... 16 2-8. Back Panel ...................................................................... 17 2-9. MOTHERBOARD Board ............................................... 18 2-10. SMPS Board, Chassis Section ........................................ 19 2-11. Front Panel Section ......................................................... 20 2-12. Loudspeaker (20CM) (Woofer) (SP3) ............................ 21 3. TEST MODE ............................................................ 22 4. ELECTRICAL CHECK ......................................... 23 5. TROUBLESHOOTING .......................................... 24 6. DIAGRAMS 6-1. Block Diagram - RS SERVO, USB, HDMI Section - .............................. 31 6-2. Block Diagram - MAIN Section - ................................... 32 6-3. Block Diagram - AMP Section - ..................................... 33 6-4. Block Diagram - PANEL, POWER SUPPLY Section - ........................... 34 6-5. Block Diagram - SMPS Section - ................................... 35 6-6. Printed Wiring Board - MOTHERBOARD Board (Component Side) - ......................................................... 37 6-7. Printed Wiring Board - MOTHERBOARD Board (Conductor Side) - .......................................................... 38 6-8. Printed Wiring Board - PANEL Board - ......................... 39 6-9. Schematic Diagram - PANEL Board - ............................ 40 6-10. Printed Wiring Board - SMPS Board - ........................... 41 6-11. Printed Wiring Board - MIC USB Board - ..................... 42 6-12. Schematic Diagram - MIC USB Board - ........................ 43 6-13. Printed Wiring Board - IR Board - .................................. 44 6-14. Schematic Diagram - IR Board - .................................... 44 6-15. Printed Wiring Board - SPK LED Board - ..................... 44 6-16. Schematic Diagram - SPK LED Board - ........................ 44 6-17. Printed Wiring Board - NFC Board - .............................. 45 TABLE OF CONTENTS 7. EXPLODED VIEWS 7-1. Side Panel Section .......................................................... 46 7-2. Panel Loading Section .................................................... 47 7-3. MOTHERBOARD Board Section .................................. 48 7-4. Chassis Section ............................................................... 49 7-5. Front Panel Section ......................................................... 50 7-6. Speaker Cabinet Section ................................................. 51 7-7. Top Panel Section ........................................................... 52 7-8. CDM Section .................................................................. 53 7-9. DVD Mechanism Section(CDM90-DVBU204//M) ................................................ 54 8. ELECTRICAL PARTS LIST .............................. 55 Accessories are listed in the last part of the electrical parts list. Ver. 1.1 S Y S S E T 2 0 1 8 / 0 8 / 2 8 2 1 : 5 6 : 4 5 ( G M T + 0 9 : 0 0 )
