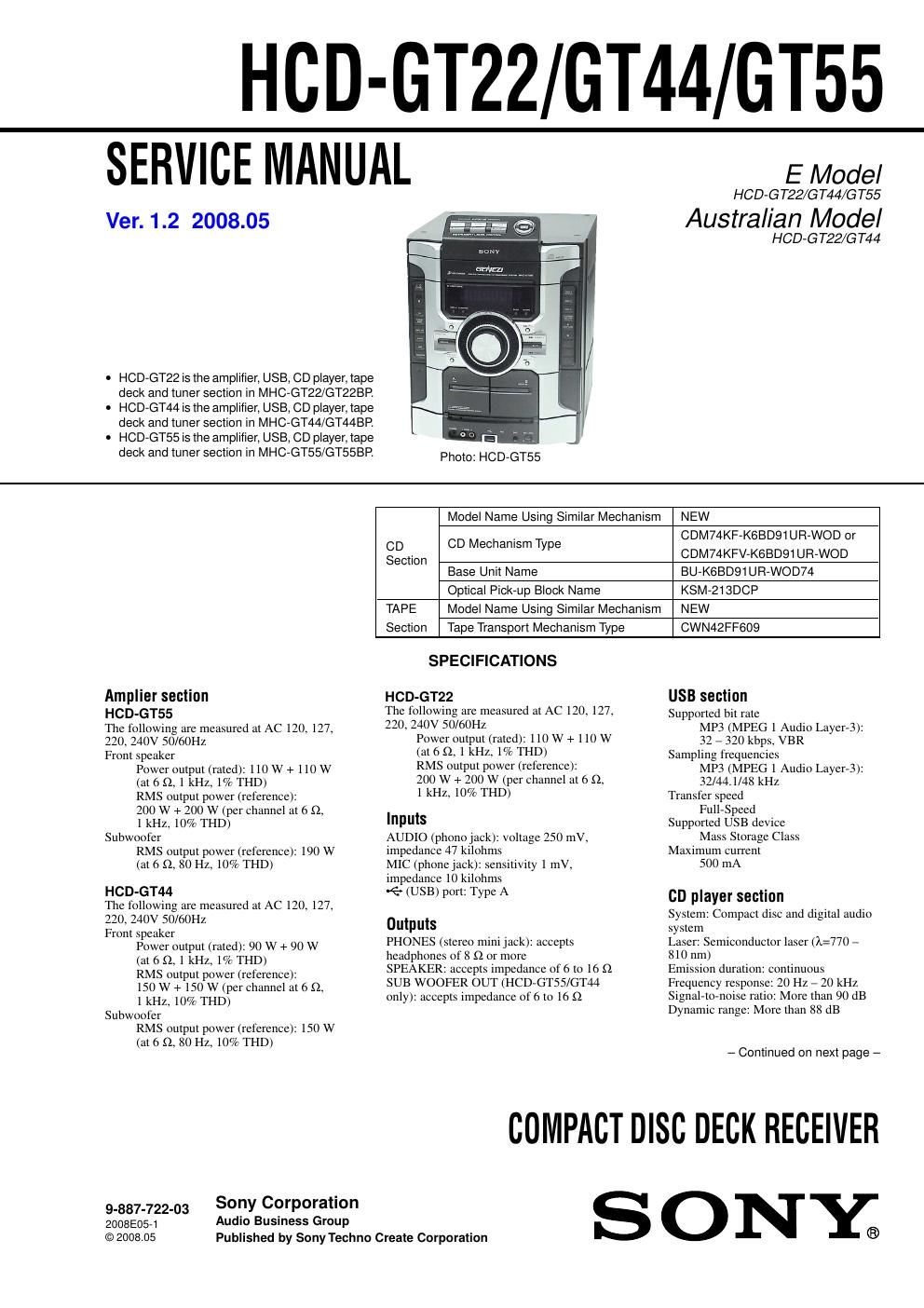

HCD-GT22/GT44/GT55

Tape deck section

Recording system: 4-track Z-channel, stereo
Frequency response: 50 r 13,000 Hz (:3
dB), using Sony TYPE I cassettes

interval)

interval)

Tuner section , 1 I V 1
FM stereo, FM/AM superheterodyne tuner A enna ertntna
FM tuner section:
Tuning range:

87.5 7 108.0 MHZ (50 kHz step)
Antenna: FM lead antenna
Antenna terminals: 75 ohms unbalanced
Intermediate frequency: 107 MHL
AM tuner section:
Tuning range

Latin American and Oceanian

General

Power requirements

50/60 Hz

Other models:
5307 1,610 kHz (with 10 kHL tuning

531 7 1,602 kHz (with 9 kHz tuning
Antenna: AM loop antenna, external

Intermediate frequency: 450 kHz

Dimensions (w/h/d) (excl. speakers)
HCD-GT55:
Approx. 280 X 365 X 425 mm
HCD-GT44/GT22:
Approx. 280 X 325 X 425 min
Mass (excl. speakers)
HCD-GT55: 10.5 kg
HCD-GT44/GT22: 10.0 kg

Design and specifications are subject to
change without notice.

Oceanian model: AC 230 r 240 V.

Mexican model: AC 127 V, min
Argentine model: AC 220 V, 50/60 Hz
Other models: AC 120, 220 or

230 - 240 V, 50/60 Hz, Adjustable
with voltage selector

models: .
530 s 1,710 kHz (with 10 kHz tuning Power Cunsmnplwn

interval) HCD-GTSS: 225 w
531 , 1,710 kHz (with 9 kHz tuning HCD-GT44: 250 W
interval) HCD-GT22: 150 w

Notes on chip component replacement
0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing
0 Keep the temperature of the soldering iron around 270 °C
during repairing.
0 Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
0 Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.

This appliance

is classified

as a CLASS 1
LASER product.
This marking is
located on the rear
exterior.

CLA531 use»: pnooucr
LUOKANl assume

KLASSt LASERAPPARAY

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
