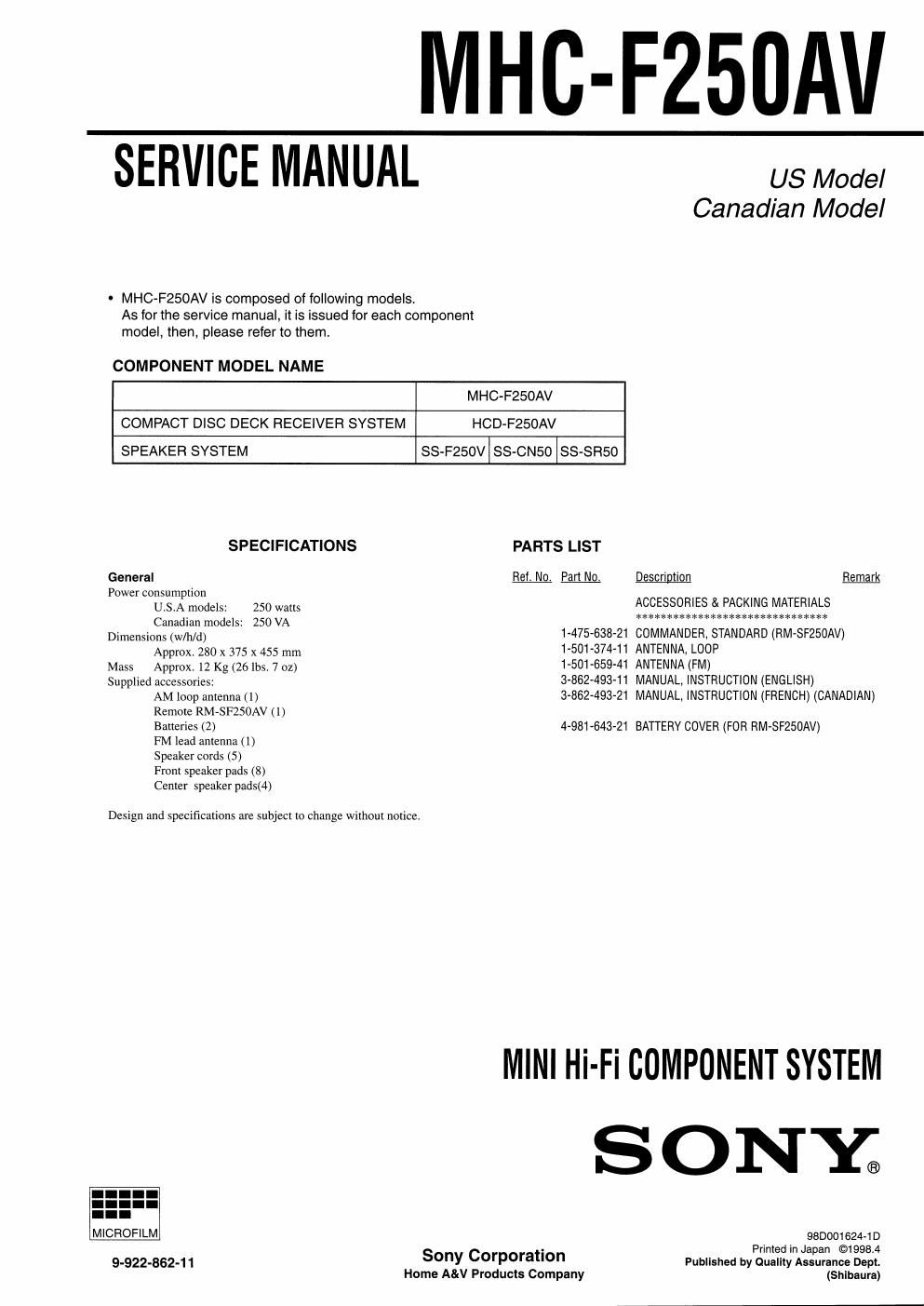

Page 1
MHC-F250AV
SERVICE MANUAL us Model
Canadian Model
- MHC-F250AV is composed of following models.
As for the service manual, it is issued for each component
model, then, please refer to them.
COMPONENT MODEL NAME
MHC-F250AV
COMPACT DISC DECK RECEIVER SYSTEM HCD-F250AV
SPEAKER SYSTEM SS-F250V SS-CN50 SS-SRSO
SPECIFICATIONS PARTS LIST
General M PALM mm Remark
P . .
W mmffldels, 250 Wm ACCESSORIES & PACKING MATERIALS
cnnadian mode. 250 VA *IIIMWHMWWMMMMXMM
Dimensions (mm " 1-475-638-21 COMMANDER, STANDARD (RM-SFZSOAV)
APPFOX- 280 x 375 x 455 mm 1-501-37441 ANTENNA, LOOP
Mass Approx. 12 Kg (26 lbs. 702) 1-501-659-41 ANTENNAIFMI
Supplied accessories: 3-862-493-11 MANUAL, INSTRUCTION (ENGLISH)
AM loop antenna (1) 3-862-493-21 MANUAL, INSTRUCTION (FRENCH) (CANADIAN)
Remote RM-SFZSOAV (1)
Batteries (2) 4-981-643-21 BATTERY COVER (FOR RM-SFZSOAV)
FM lead antenna (1)
Speaker cords (5)
Front speaker pads (8)
Center speaker pads(4)
Design and specifications are subject to change without notice.
MINI Hi-Fi COMPONENT SYSTEM
S ONY®
98D001624-1 D
. Printed in Japan ©1998.4
9.922.352. Sony corporatlon Published by Quality Assurance Dept.
Home A&V Products Company (Shibaura)
