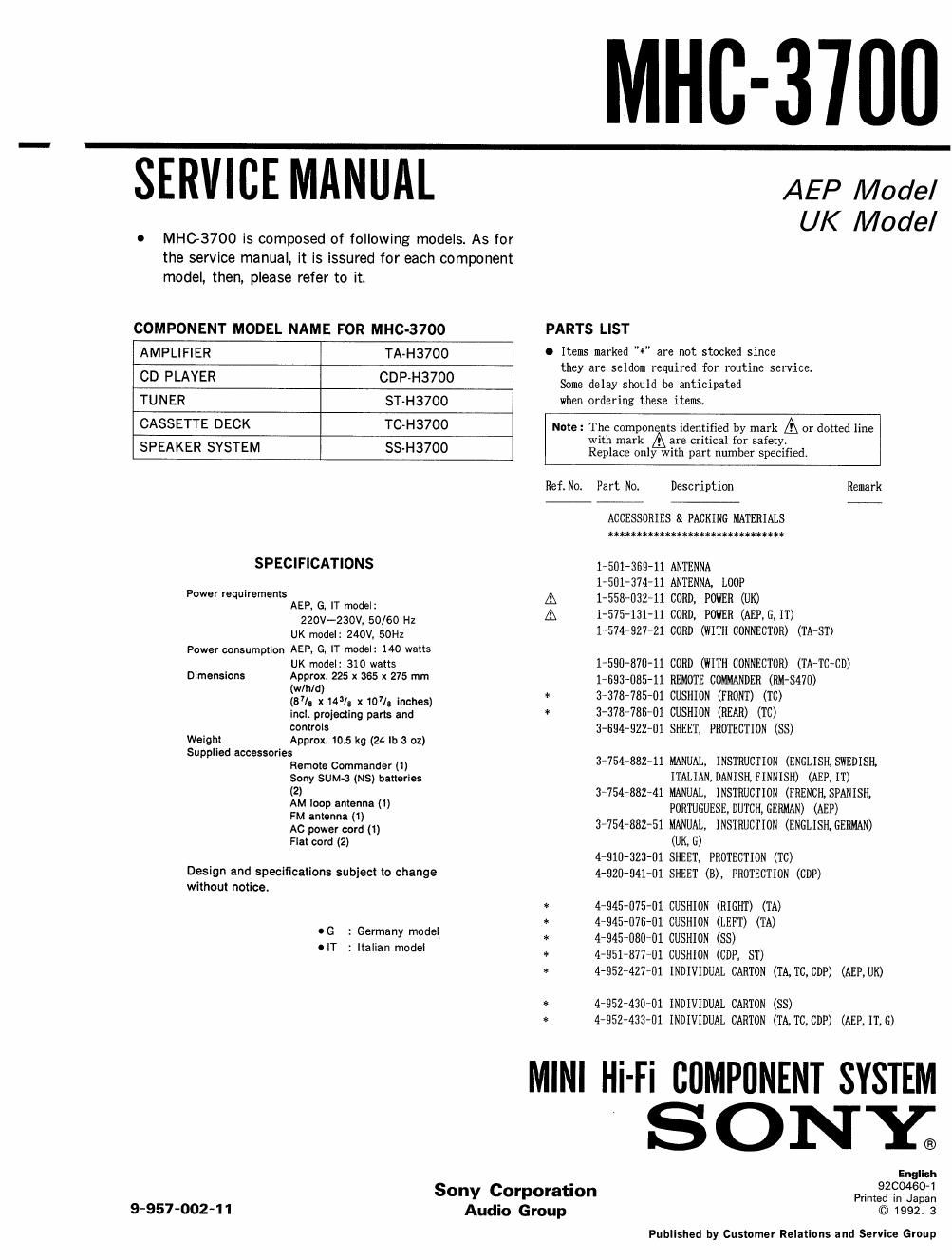

SERVICE MANUAL

0 MHC-3700 is composed of following models. As for
the service manual, it is issured for each component
model, then, please refer to it.

COMPONENT MODEL NAME FOR MHC-3700

MHC-3IOO

AEP Model
UK Model

PARTS LIST

SPECIFICATIONS

Power requirements

AEP, G, |T model:

220V-230V, 50/60 Hz

UK model: 240V, 50Hz
Power consumption AEP, G, [T model: 140 watts
UK model: 310 watts
Approx. 225 x 365 x 275 mm
(wlh/d)
(87/; x 143/. x 107/, inches)
incl. projecting parts and
controls
Weight Approx, 105 kg (24 lb 3 oz)
Supplied accessories

Remote Commander (1)

Sony SUM»3 (NS) batteries

(2)

AM loop antenna (1)

FM antenna (1)

AC power cord (1)

Flat cord (2)

Dimenslons

Design and specifications subject to change
without notice.

06 : Germany model
olT : Italian model

Sony Corporation
Audio Group

9-957-002-11

AMPLIFIER TA.H3700 0 Items marked r are not stocked since
they are seldom required for routine service
CD PLAYER CDP'H3700 Some delay should be anticipated
TUNER ST-H3700 when ordering these items
CASSETTE DECK TC-H3700 Note: The components identified by mark A or dotted line
with mark are critical for safety
SPEAKER SYSTEM SS'H3700 Replace only with part number specified.

Ref. No. Part No. Description Remark

ACCESSORIES 81 PACKING MATERIALS

i1*1*iim4*444**+***********i**t

1-501-36941 ANTENNA

1'501-374-11 ANTENNA, LOOP

1-558-032-11 CORD, POWER (UK)
157513141 CORD, POWER (AEP,G. IT)
1*574-927-21 CORD (WITH CONNECTOR) (TAST)

BB

1590-870-11 CORD (WITH CONNECTOR) (TATCCD)
17593~085~11 REMOTE COMMANDER (RMS470)

* 3~378-785-Ol CUSHION (FRONT) (TC)

* 3-378-786-01 CUSHION (REAR) (TC)
3-694-922-01 SHEET. PROTECTION (SS)

3454458241 MANUAL, INSTRUCTION (ENGLISH, SWEDISH,
ITALIAN, DANISH FINNISH) (AEP, IT)

3*754~882-41 MANUAL, INSTRUCTION (FRENCH. SPANISH,
PORTUGUESE, DUTCH, GERMAN) (AEP)

34544182451 MANUAL, INSTRUCTION (ENGLISH, GERMAN)
(UK, G)

4-910>3Z3>OI SHEET, PROTECTION (TC)

4*920-941-01 SHEET (D), PROTECTION (GDP)

479457075-01 CUSHION (RIGHT) (TA)

4*945-076-01 CUSHION (LEFT) (TA)

4945-080-01 CUSHION (SS)

4-351-877701 CUSHION (CDP, ST)

495242701 INDIVIDUAL CARTON (TA TC, CDP) (AEP,UK)

*rx-i-i-vl-

a.

4-952-430-01 INDIVIDUAL CARTON (SS)
* 4'952-433-01 INDIVIDUAL CARTON (TA, TC, CDP) (AEP, IT, G)

MINI Hi-Fi COMPONENT SYSTEM

SONY®

Engllsh
92604604
Printed in Japan
© 1992. 3

Published by Customer Relations and Service Group
