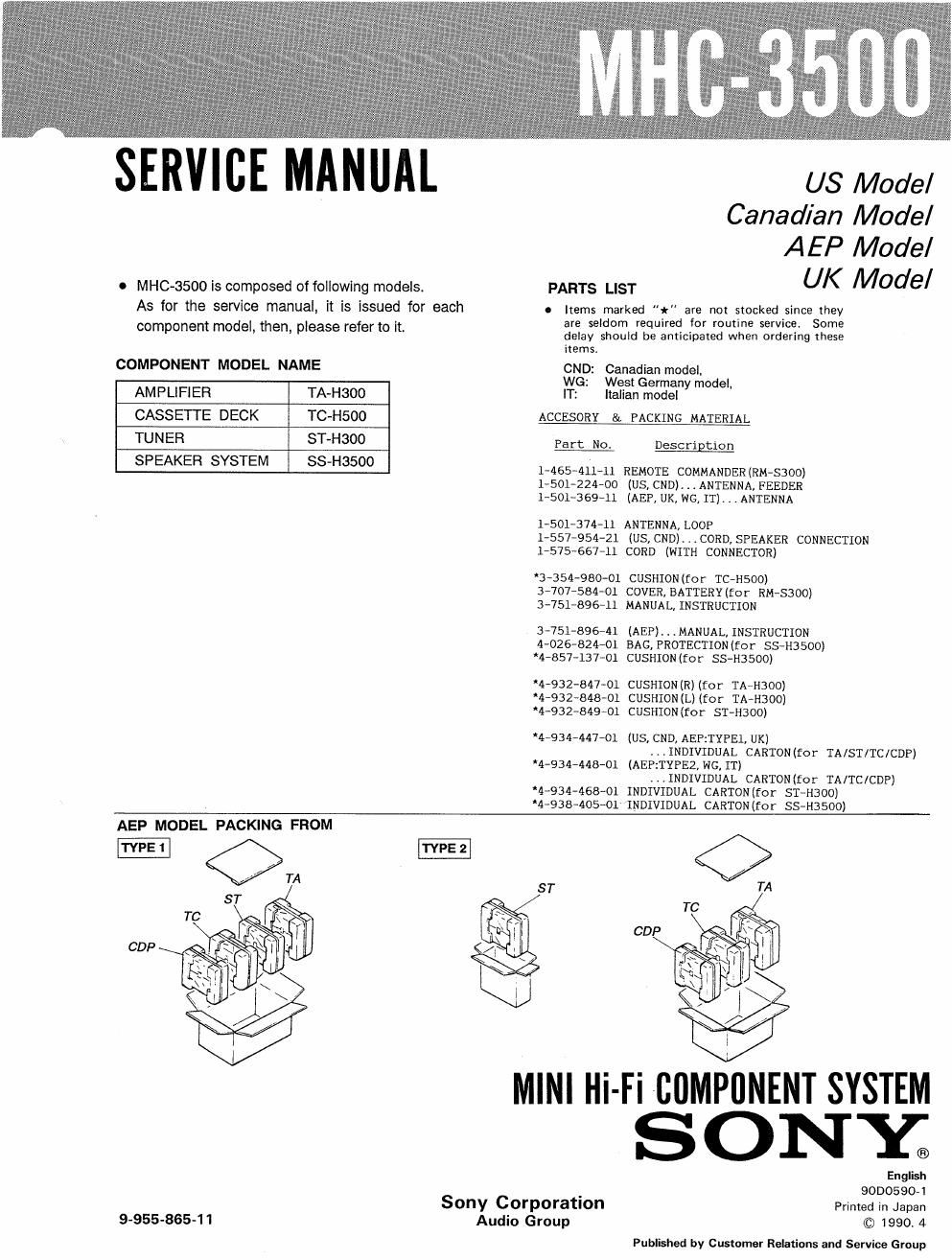

Page 1

SERVICE MANUAL us Model

Canadian Model
A EP Model

o MHC-3500 is composed of following models. PARTS LIST UK M Ode,
As for the service manual, it is issued for each a Items marked * are not stocked'since they
component model, then, please refer to it- SLeiaie'siiTiJfiL'ESJXJQSW;53:35:}59 Eggs:
items,
COMPONENT MODEL NAME CND: Canadian model,
WG: West Germany model.
AMPLIFIER TA-H300 IT: Italian model
CASSETTE DECK TC-H500 ACCESORY 8:. PACKING MATERIAL
TUNER ST'H300 Part No. Descrigtion
SPEAKER SYSTEM SS-H3500

1-465A411-Il REMOTE COMMANDER (RM-S300)
1~501-224-OO (US. CND). I .ANTENNA, FEEDER
17501-36941 (AEP, UK, WG, IT) , . . ANTENNA

1-501-374-11 ANTENNA, LOOP
1-557_954_21 (US, CND) . . CORD, SPEAKER CONNECTION
1-575-667-11 CORD (WITH CONNECTOR)

3~354-980-01 CUSHION(for TC-HSOO)
3-707-584>Ol COVER, BATTERY(for RM-S300)
3-7514896-11 MANUAL, INSTRUCTION

3751-896-41 (AEP) . . . MANUAL, INSTRUCTION
4-026-824~01 BAG,PROTECTION(for SS-H3500)
'4-857-13701 CUSHION (for SS-HBSOO)

4A932-847-01 CUSHION(R) (for TA-H300)
4-932-848-01 CUSHION(L) (for TAAH300)
"4-932-849-01 CUSHIONKOI ST-H300)

4-934-447-01 (US, CND, AEP2TYPE1, UK)

..INDIVIDUAL CARTON(for TA/ST/TC/CDP)
4-934-448-01 (AEPtTYPEZ, WG. IT)

.I.INDIVIDUAL CARTON(for TA/TC/CDP)
4-934-468401 INDIVIDUAL CARTON(f0r ST~H300)
4-938~405-Ol INDIVIDUAL CARTON(for SS-H3500)

AEP MODEL PACKING FROM

MINI Hi-Fi BflMPllNENT SYSTEM
SONY9

English

_ 90005904

Sony Corporatlon Printed in Japan

9-955-865-11 Audio Group © 1990. 4

Published by Customer Relations and Service Group
