Sony mhc 2300 service manual

This is the 1 pages manual for sony mhc 2300 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 1

Extracted text from sony mhc 2300 service manual (Ocr-read)

Page 1

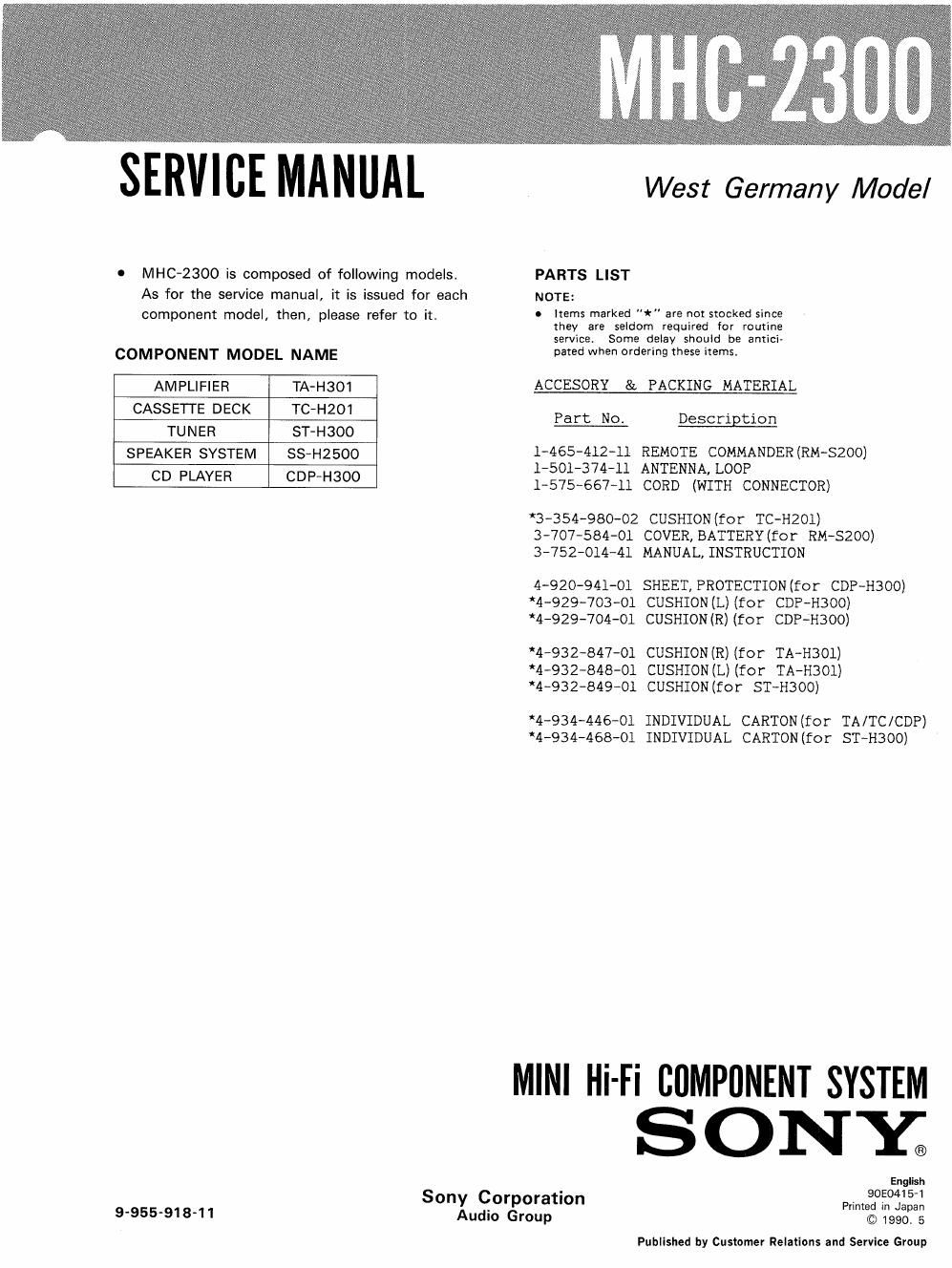

SEVICE MANUAL

0 MHC-2300 is composed of following models.
As for the sen/ice manual, it is issued for each
component model, then, please refer to it.

COMPONENT MODEL NAME

AMPLIFIER TA-H301
CASSETTE DECK TC-HZOI
TUNER ST-H300
SPEAKER SYSTEM SS-H2500
CD PLAYER CDP-H300
9-955-918-11

West Germany Model

PARTS LIST

NOTE:

0 Items marked "*" are not stocked since
they are seldom required for routine
service Some delay should be antici»
Dated when ordering these ixems,

ACCESORY & PACKING MATERIAL

Part No Description

1-465-412-11 REMOTE COMMANDER(RM-SZOO)
1-501-374-11 ANTENNA, LOOP
1-575-667-11 CORD (WITH CONNECTOR)

*3-354-980-02 CUSHION(for TC-HZOl)
3-707-584-01 COVER, BATTERY(for RM-SZOO)
3-752-014-41 MANUAL, INSTRUCTION

4-920-941-01 SHEET, PROTECTION (for CDP-H300)
"4-929-703-01 CUSHION(L) (for CDP-H300)
*4-929-704-01 CUSHION(R)(for CDP-HBOO)

*4-932-847-01 CUSHION(R)(for TA-H30l)
*4-932-848-01 CUSHION(L)(for TA-HBOl)
*4-932-849-01 CUSHION(for ST-H300)

*4-934-446-01 INDIVIDUAL CARTON(for TA/TC/CDF)
"4-934-468-01 INDIVIDUAL CARTON(f0r ST-H300)

MINI Hi-Fi CUMPIJNENT SYSTEM

SONY;

English

Sony Corporation 9050415"
Audio Group

Published by Customer Relations and Service Group
