Sony mex dv 1000 dv2000 cd car audio
This is the 92 pages manual for sony mex dv 1000 dv2000 cd car audio.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mex dv 1000 dv2000 cd car audio (Ocr-read)

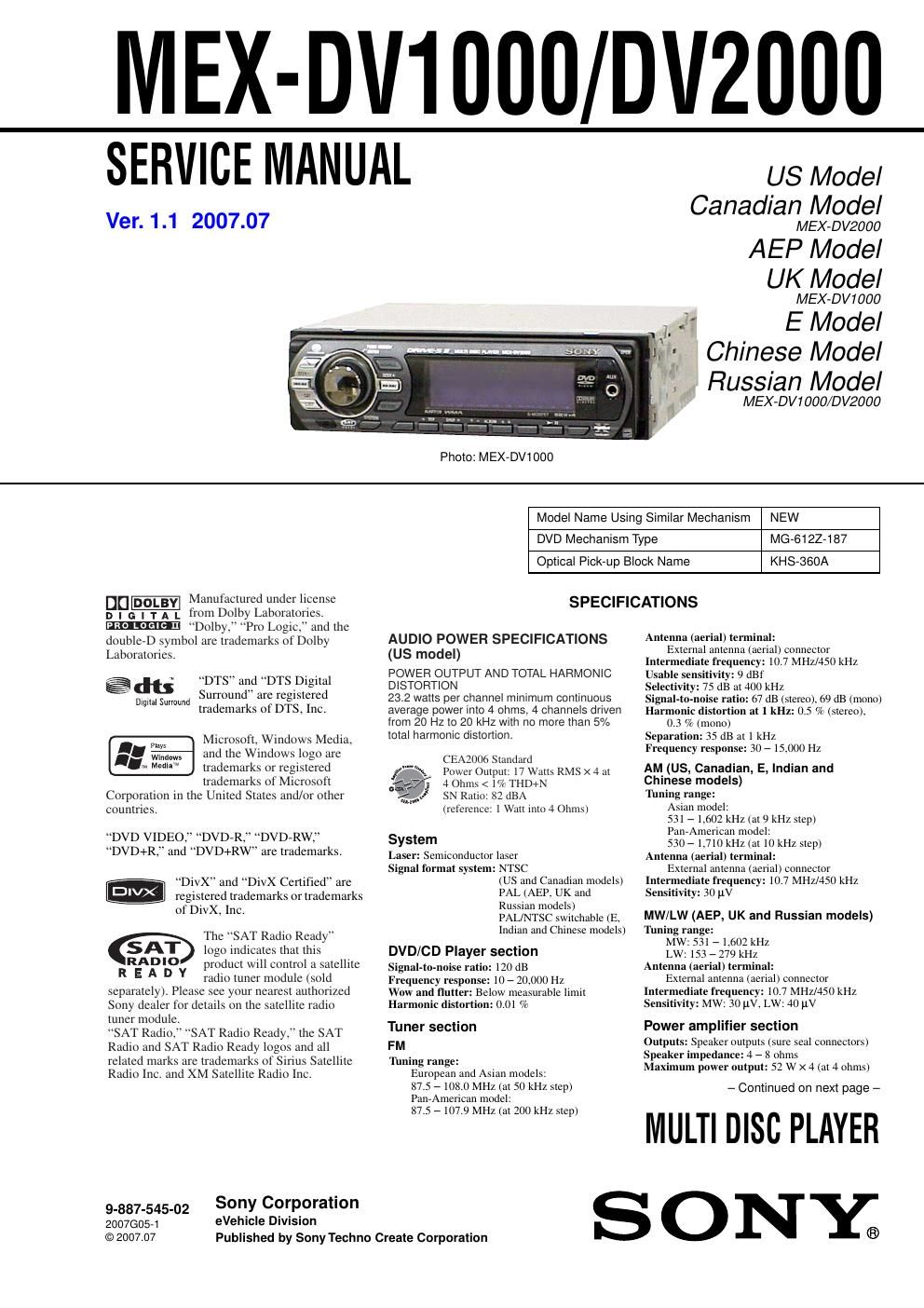

Page 1
2 MEX-DV1000/DV2000 General Outputs: Video output terminals (front/rear) (DV2000) Video output terminal (DV1000) Audio output terminals (front/rear) (DV2000) Rear audio output terminals (DV1000) Center output terminal (DV2000) Subwoofer output terminal (DV 2000) Power ante nna (aerial) relay control terminal Power am plifier control terminal In puts: Telephone ATT control terminal (DV2000) Illumination control terminal (DV2000) BUS audio input terminals BUS control input terminal Re mote controller input terminal An tenna (aerial) input terminal Parking br eak control terminal Mi crophone input terminal AUX input jack (stereo mini jack) Power requirements: 12 V DC car battery (n eg ativ e ground (earth)) Dimensions: Approx. 178 × 50 × 181 mm (7 1/8 × 2 × 7 1/4 in) (w/h/d) Mounting dimensions: Approx. 182 × 53 × 181 mm (7 1/4 × 2 1/8 × 7 1/4 in) (w/h/d) Ma ss: Approx. 1.4 kg (3 lb 2 oz) Supplied accessories: Card remote commander: RM-X161 (DV2000: US and Canadian models) Parts fo r installation and connections (1 set) Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information. RM-X162 (DV2000: Russian model) RM-X163 (DV2000: E, Indian and Chinese models) RM-X167 (DV1000: E, Indian and Chinese models) RM-X166 (DV1000: AEP, UK and Russian models) DivX, Di vX Certified, and associated logos are trademarks of DivX, Inc. and are used under license. Note This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS system compatible. Desi gn and specifications are subject to change witho ut notice. US and foreign patents licensed from Dolby Laboratories. MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 ˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation e xposure. CAUTION :CLASS 1M VISIBLE/INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. T his label is located on the drive unit's internal chassis This label is located on the bottom of the chassis. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. A TTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS Q UE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. CAUTIONLaser radiation when open. DO NOT STARE INTO BEAM. - This label is located on the drive units internal chassis.
Page 2
3 MEX-DV1000/DV2000 TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 4 2. GENERAL ................................................................... 8 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 13 3-2. SUB Panel Complete Assy .............................................. 13 3-3. DVD Mechanism Deck Block ......................................... 14 3-4. MAIN Board, DC Fan (25X25) (M901) ......................... 14 3-5. Chassis (T612Z) SUB Assy, Sensor Board ..................... 15 3-6. Chassis (OP, Z) Complete Assy ....................................... 15 3-7. SERVO Board .................................................................. 16 4. ELECTRICAL ADJUSTMENTS ......................... 17 5. DIAGRAMS 5-1. Block Diagram – SERVO/VIDEO Section – .................. 18 5-2. Block Diagram – TUNER/AUDIO Section – ................. 19 5-3. Block Diagram – PANEL/POWER SUPPLY Section – ........................... 20 5-4. Printed Wiring Board – SERVO Section (1/2) – ............. 22 5-5. Printed Wiring Boards – SERVO Section (2/2) – ............ 23 5-6. Schematic Diagram – SERVO Section (1/4) – ................ 24 5-7. Schematic Diagram – SERVO Section (2/4) – ................ 25 5-8. Schematic Diagram – SERVO Section (3/4) – ................ 26 5-9. Schematic Diagram – SERVO Section (4/4) – ................ 27 5-10. Printed Wiring Board – MAIN Section (1/2) – ............... 28 5-11. Printed Wiring Boards – MAIN Section (2/2) – .............. 29 5-12. Schematic Diagram – MAIN Section (1/6) – .................. 30 5-13. Schematic Diagram – MAIN Section (2/6) – .................. 31 5-14. Schematic Diagram – MAIN Section (3/6) – .................. 32 5-15. Schematic Diagram – MAIN Section (4/6) – .................. 33 5-16. Schematic Diagram – MAIN Section (5/6) – .................. 34 5-17. Schematic Diagram – MAIN Section (6/6) – .................. 35 5-18. Printed Wiring Board – SUB Board – ............................. 36 5-19. Schematic Diagram – SUB Board – ................................ 37 5-20. Printed Wiring Board – KEY Board – ............................. 38 5-21. Schematic Diagram – KEY Board – ............................... 39 6. EXPLODED VIEWS 6-1. MAIN Section ................................................................. 54 6-2. Front Panel Section ......................................................... 55 6-3. DVD Mechanism Deck Section (MG-612Z-187) ........... 56 7. ELECTRICAL PARTS LIST ................................ 57
