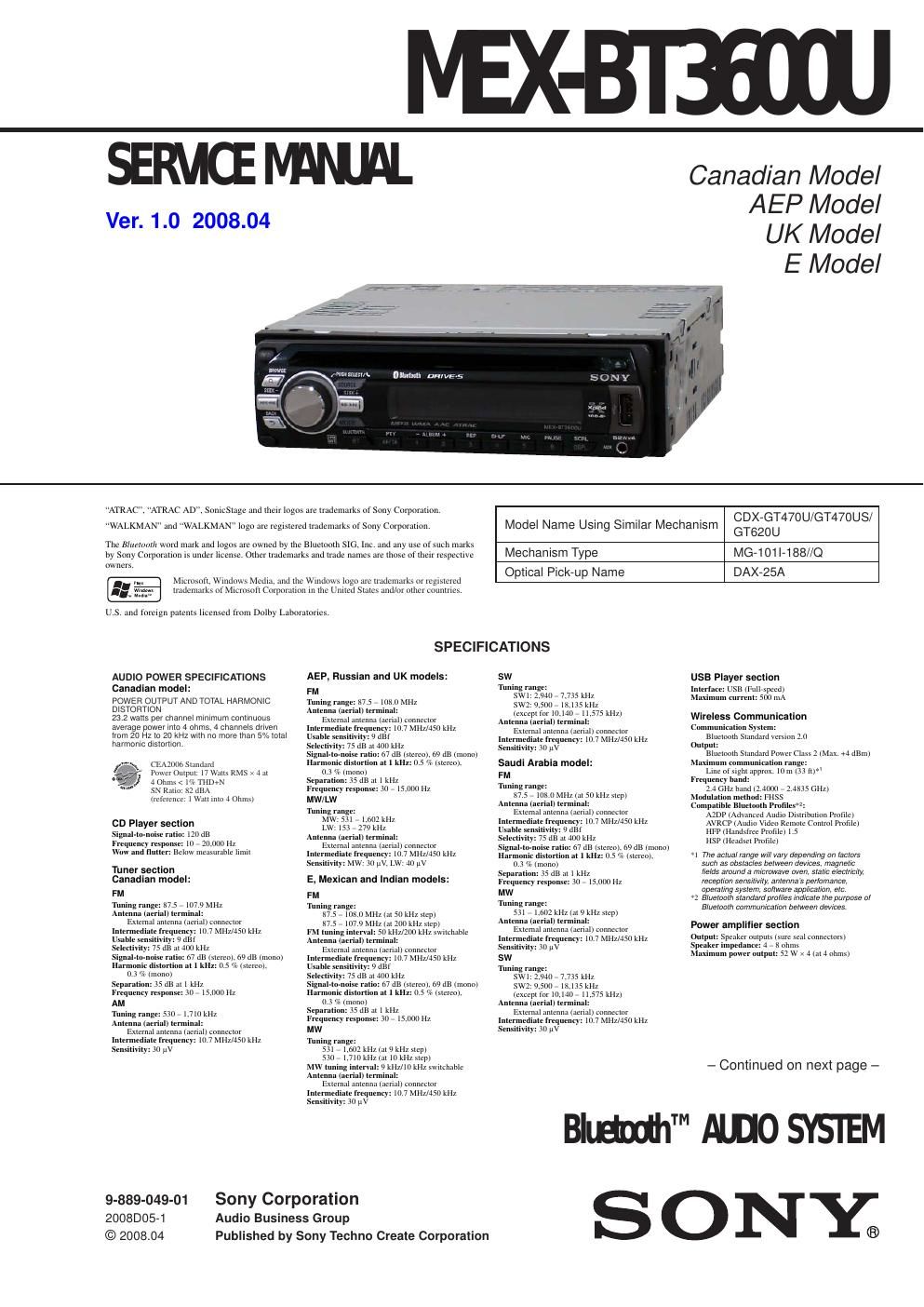

Sony mex bt 3600u service manual
This is the 46 pages manual for sony mex bt 3600u service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mex bt 3600u service manual (Ocr-read)
Page 1
MEX-BT3600U 2 Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam-aged by heat. Flexible Circuit Board Repairing - Keep the temperature of soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONET WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. CAUTION Use of controls or adjustments or performance of procedures other than those speci fi ed herein may result in hazardous radiation exposure. - Canadian model: CAUTION The use of optical instruments with this product will increase eye hazard. This product is classified as a CLASS - Except Canadian model: 1 LASER PRODUCT. This label is located on the bottom of the chassis. GeneralOutputs: Audio outputs terminal (front/rear) Subwoofer output terminal (mono) Power antenna (aerial) relay control terminal Power amplifier control terminal Inputs: Telephone ATT control terminal Remote controller input terminal Antenna (aerial) input terminal AUX input jack (stereo mini jack) Tone controls: Low: ±10 dB at 60 Hz (XPLOD) Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD) Power requirements: 12 V DC car battery (negative ground (earth)) Dimensions: Approx. 178×50 ×179 mm (7 1/8× 2× 7 1/8in) (w/h/d) Mounting dimensions: Approx. 182×53 ×162 mm (7 1/4× 21/8×61/2in) (w/h/d) Mass: Approx. 1.2 kg (2 lb 11 oz) Supplied accessories: Card remote commander: RM-X304 Partsforinstallationandconnections(1set) Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information. Design and specifications are subject to change without notice. MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. Content providers are using the digital rights management technology for Windows Media contained in this device (WM-DRM) to protect the integrity of their content (Secure Content) so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM software to play Secure Content (WM-DRM Software). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (Secure Content Owners) may request that Microsoft revoke the WM-DRM Softwares right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Softwares ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.
Page 2
MEX-BT3600U 3 1. SERVICING NOTES ............................................. 4 2. GENERAL .................................................................. 7 3. DISASSEMBLY 3-1. Disassembly Flow .......................................................... 14 3-2. Cover ........................................................................\ ....... 14 3-3. CD Mechanism Deck Block (MG-101I-188//Q) ............ 15 3-4. ANTENNA Board .......................................................... 15 3-5. MAIN Board ................................................................... 16 3-6. SERVO Board ................................................................. 16 3-7. Chassis (T) Sub Assy ..................................................... 17 3-8. Roller Arm Assy .............................................................. 17 3-9. Chassis (OP) Assy .......................................................... 18 3-10. Chucking Arm Sub Assy ................................................. 18 3-11. Sled Motor Assy ............................................................. 19 3-12. Optical Pick-Up Section ................................................. 20 3-13. OP Service Assy (DAX-25A) ........................................ 20 4. DIAGNOSIS FUNCTION ..................................... 21 5. DIAGRAMS 5-1. Printed Wiring Boards - MAIN Section - ....................... 26 5-2. Schematic Diagram - MAIN Section (1/3) - ................... 27 5-3. Schematic Diagram - MAIN Section (2/3) - ................... 28 5-4. Schematic Diagram - MAIN Section (3/3) - ................... 29 5-5. Printed Wiring Boards - KEY Section - .......................... 30 5-6. Schematic Diagram - KEY Section - .............................. 31 6. EXPLODED VIEWS 6-1. Main Section ................................................................... 36 6-2. Front Panel Section ......................................................... 37 6-3. CD Mechanism Deck Section (MG-101I-188//Q) .......... 38 7. ELECTRICAL PARTS LIST .............................. 39 TABLE OF CONTENTS
