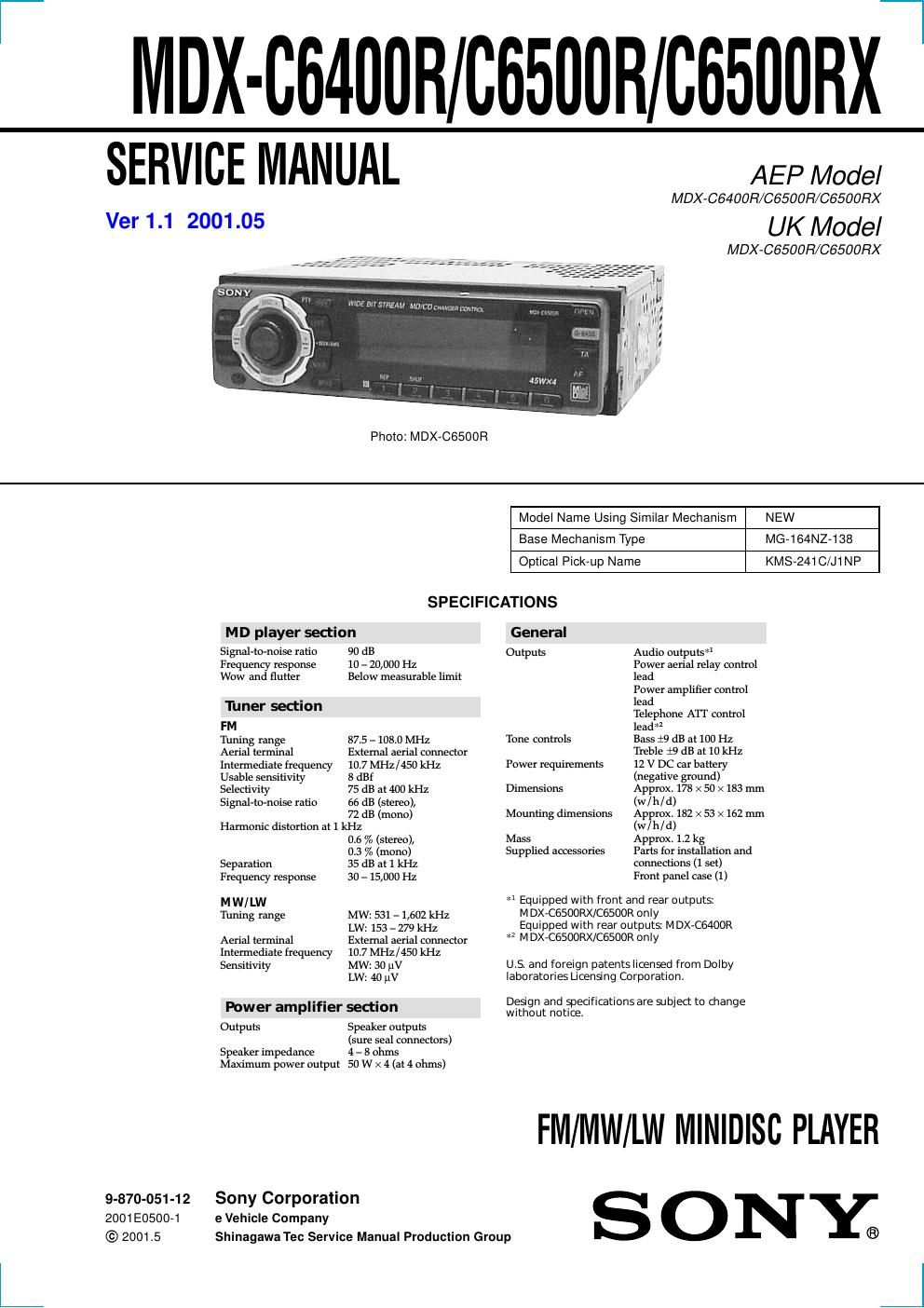

Sony mdx c 6400 r service manual

Page 2

3 SECTION 1 GENERAL This section is extracted from instruction manual. Location of controls Refer to the pages listed for details. 1Volume control dial 19 2MENU button 8, 10, 12, 13, 14, 15, 16, 18, 19, 21, 24 3DISC/PRST +/– (cursor up/down) buttons 8, 10, 12, 13, 14, 15, 16, 18, 19, 20, 21, 24 During CD/MD playback: Disc change 10, 13 During radio reception: Preset stations select 16 4 Z (eject) button (located on the front side of the unit behind the front panel) 9 5DSPL/PTY (display mode change/ programme type) button 9, 10, 12, 17, 20 6LIST button 12 List-up 13 7SOURCE (TUNER/CD/MD) button 8, 9, 10, 13, 15, 16, 19 8Display window 9OPEN button 7, 9, 26 q;D-BASS button 25 qaSOUND button 23 qsReset button (located on the front side of the unit behind the front panel) 7 qdOFF button* 7, 8, 9qfSEEK/AMS –/+ (cursor left/right) buttons 8, 10, 12, 14, 16, 18, 19, 21, 23, 24 Automatic Music Sensor 10, 14 Manual Search 10 Seek 15, 16, 18 qgENTER button 8, 10, 12, 13, 14, 15, 16, 18, 19, 20, 21, 24 qhMODE button 19 During CD or MD playback: CD/MD unit select 9, 13 During radio reception: BAND select 15, 16 qjReceptor for the card remote commander qkNumber buttons During radio reception: Preset number select 15, 16, 18, 19 During CD/MD playback: (1)REP 11 (2)SHUF 11 qlAF button 17, 18, 19 w;TA button 18, 19 *Warning when installing in a car without ACC (accessory) position on the ignition key switch Be sure to press (OFF) on the unit for two seconds to turn off the clock display after turning off the engine. When you press (OFF) only momentarily, the clock display does not turn off and this causes battery wear. MDX-C6500RX/C6500R /C6400R DISC+PRST+- DISC– PRST-- LISTDSPL AF OFF PTY ENTER MENU SOUND 1 2 3 4 56 SOURCE -SEEK/AMS REP SHUF TA OPEN D-BASS MODE Setting the clock The clock uses a 24-hour digital indication. Example: To set the clock to 10:08 1 Press (MENU), then press either side of (DISC/PRST) repeatedly until CLOCK appears. 1Press (ENTER). The hour indication flashes. 2Press either side of (DISC/PRST) to set the hour. 3Press the (+) side of (SEEK/AMS). The minute indication flashes. 4Press either side of (DISC/PRST) to set the minute. 2 Press (ENTER). The clock starts. After the clock setting is completed, the display returns to normal play mode. Tip You can set the clock automatically with the RDS feature (see page 17). Note In the initial setting, the clock indication appears while the unit is turned off. When the D.INFO mode is set to ON, the time is always displayed (page 24).
