Sony mdx 61 service manual
This is the 38 pages manual for sony mdx 61 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdx 61 service manual (Ocr-read)

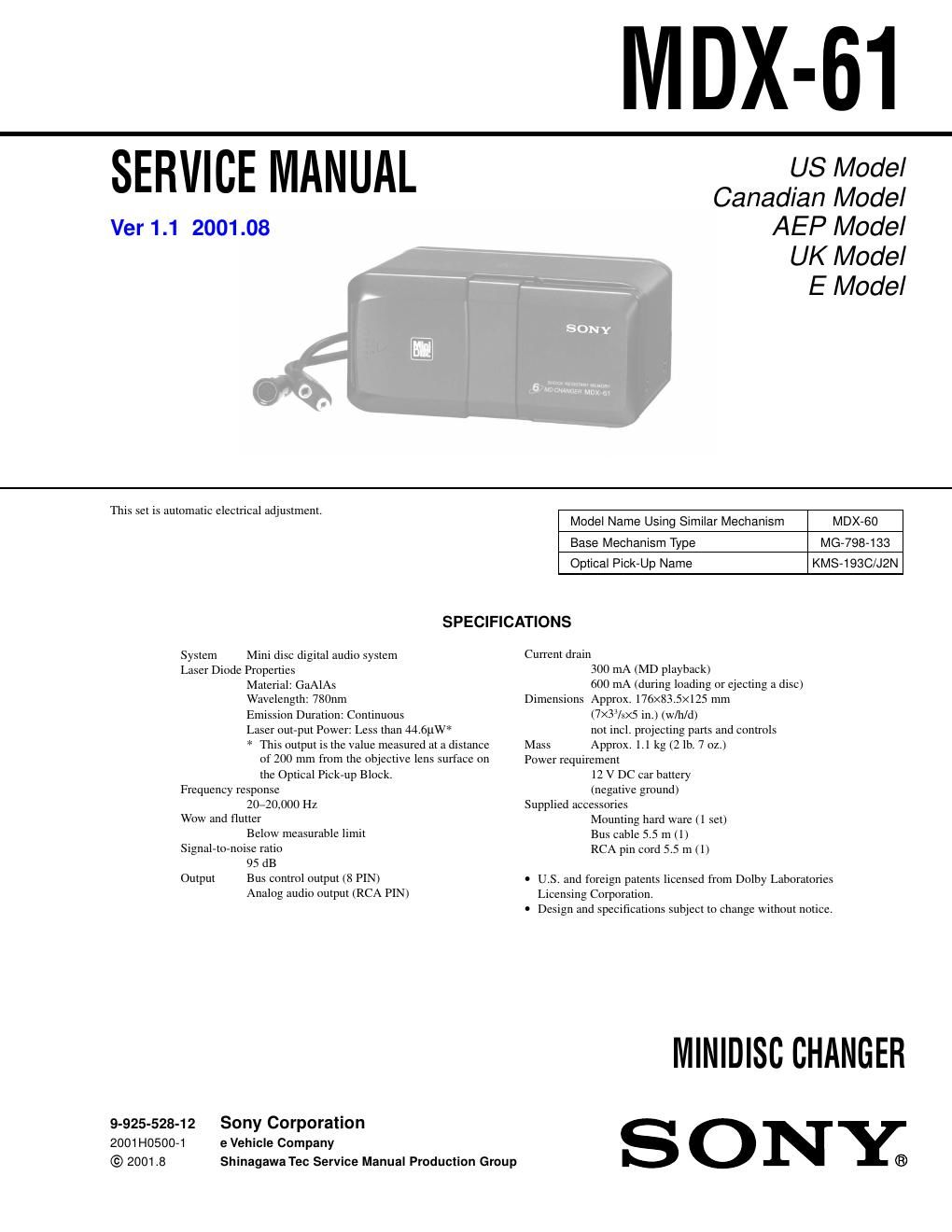

Page 1
– 2 – ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. TABLE OF CONTENTS 1. GENERAL ..................................................................... 3 2. DISASSEMBLY ............................................................ 7 3. DIAGRAMS 3-1. Block Diagram ................................................................... 11 3-2. Printed Wiring Boards - Servo Section – ........................... 13 3-3. Schematic Diagram – Servo Section – .............................. 15 3-4. Schematic Diagram – Main Section – ............................... 20 3-5. Printed Wiring Boards – Main Section – ........................... 23 3-6. Schematic Diagram – Power Section – ............................. 26 3-7. Printed Wiring Board – Power Section – ........................... 29 3-8. IC Pin Function Description .............................................. 33 4. EXPLODED VIEWS ................................................... 41 5. ELECTRICAL PARTS LIST .................................... 45SERVICING NOTE [To place this set in the play mode] This set does not have the key control function, and therefore it cannot activate the play mode by itself. Also, the key control to this set is done through a serial communication with the master unit (SONY Bus System compatible car audio, TV tuner, source selector, etc.). Accordingly, if repairing this set, connect as shown below: MDX-61Master unit (MDX-C150/ C150RDS, etc.) Bus control input terminal Bus control output terminal SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CAUTION Use of controls or adjustments or performance of pro- cedures other than those specified herein may result in hazardous radiation exposure.
Page 2
– 3 – SECTION 1 GENERAL This section is extracted from instruction manual.
