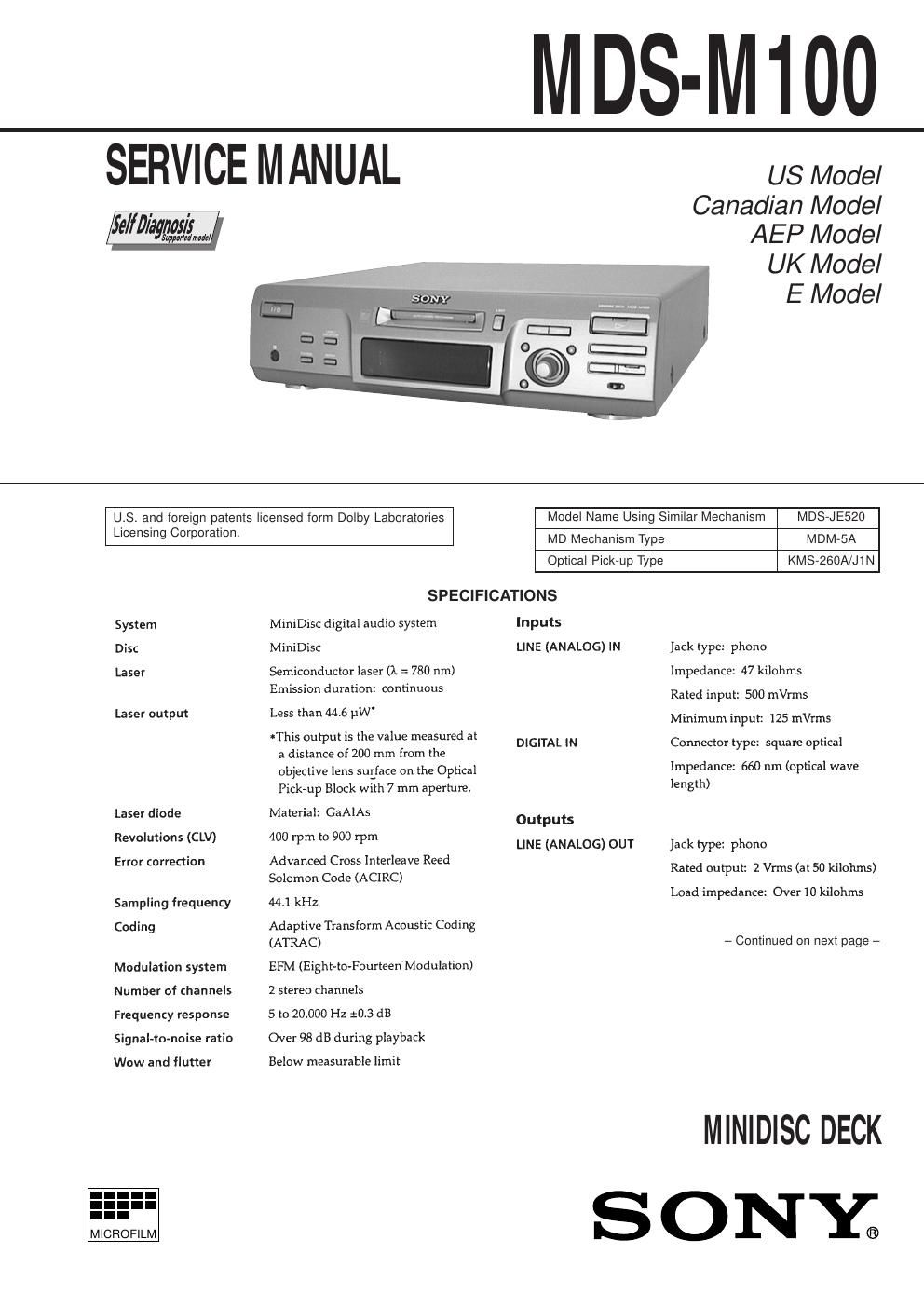

Sony mds m 100 service manual

Page 2

Ð 3 Ð Items of Error History Mode Items and Contents Selecting the Test Mode Display Details of History E00 No error E01 Disc error. PTOC cannot be read (DISC ejected) E02 Disc error. UTOC error (DISC not ejected) E03 Loading error E04 Address cannot be read (Servo has deviated) Table of Error Codes Error Code Error Code Details of Error total rec Displays the recording time. Displayed as Òr¹¹¹¹¹¹hÓ. The displayed time is the total time the laser is set to the high power state. This is about 1/4 of the actual recording time. The time is displayed in decimal digits from 0h to 65535h. total play Displays the play time. Displayed as Òp¹¹¹¹¹¹hÓ. The time displayed is the total actual play time. Pauses are not counted. The time is displayed in decimal digits from 0h to 65535h. retry err Displays the total number of retries during recording and number of retry errors during play. Displayed as Òr¹¹ p¹¹Ó. ÒrÓ indicates the retries during recording while ÒpÓ indicates the retry errors during play. The number of retries and retry errors are displayed in hexadecimal digits from 00 to FF. total err Displays the total number of errors. Displayed as Òtotal ¹¹Ó. The number of errors is displayed in hexadecimal digits from 00 to FF. err history Displays the 10 latest errors. Displayed as Ò0¹ E@@Ó. ¹ indicates the history number. The smaller the number, the more recent is the error. (00 is the latest). @@ indicates the error code. Refer to the following table for the details. The error history can be switched by turning the = AMS + knob. er refresh Mode which erases the Òretry errÓ, Òtotal errÓ, and Òerr historyÓ histories. When returning the unit to the customer after completing repairs, perform this to erase the past error history. After pressing the = AMS +button and Òer refresh?Ó is displayed, press the [YES] button to erase the history. ÒComplete!Ó will be displayed momentarily. Be sure to check the following when this mode has been executed. ¥ The data has been erased. ¥ The mechanism operates normally when recording and play are performed. tm refresh Mode which erases the Òtotal recÓ and Òtotal playÓ histories. These histories serve as approximate indications of when to replace the optical pickup. If the optical pickup has been replaced, perform this operation and erase the history. After pressing the = AMS +button and Òtm refresh?Ó is displayed, press the [YES] button to erase the history. ÒComplete!Ó will be displayed momentarily. Be sure to check the following when this mode has been executed. ¥ The data has been erased. ¥ The mechanism operates normally when recording and play are performed. E05 FOK has deviated E06 Cannot focus (Servo has deviated) E07 Recording retry E08 Recording retry error E09 Playback retry error (Access error) E0A Playback retry error (C2 error) Details of Error
