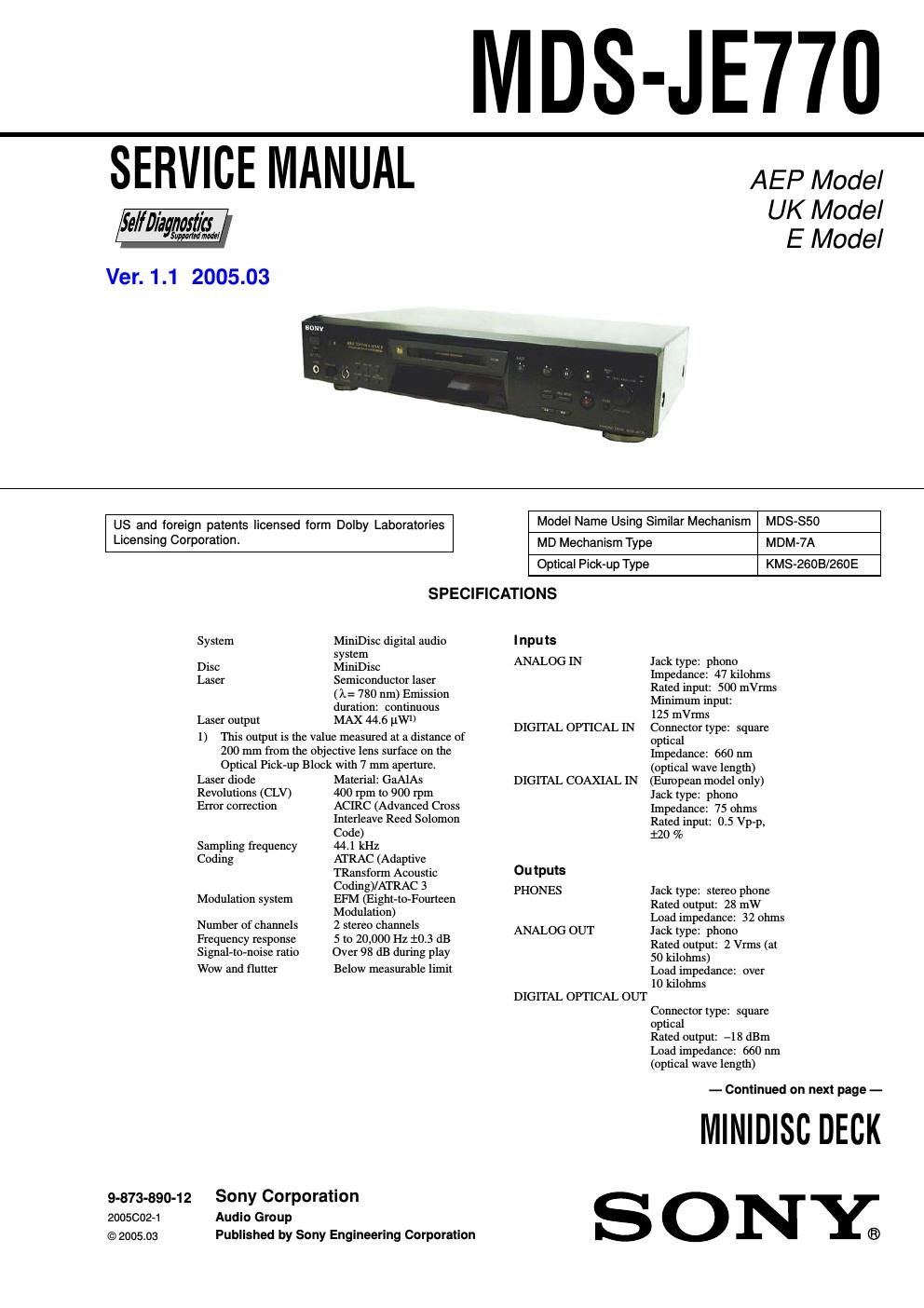

Sony mds je 770 service manual
This is the 72 pages manual for sony mds je 770 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mds je 770 service manual (Ocr-read)
Page 1
2 MDS-JE770 SELF-DIAGNOSIS FUNCTION The self-diagnosis function consists of error codes for customers which are displayed automatically when errors occur, and error codes which show the error history in the test mode during servicing. For details on how to view error codes for the customer, refer to the following box in the instruction manual. For details on how to check error codes during servicing, refer to the following Procedure for using the Self- Diagnosis Function (Error History Display Mode). Procedure for using the Self-Diagnosis Function (Error History Display Mode). Note:Perform the self-diagnosis function in the error history display mode in the test mode. The following describes the least required procedure. Be careful not to enter other modes by mistake. If you set other modes accidentally, press the MENU/NO button to exit the mode. Self-diagnosis function The decks self-diagnosis function automatically checks the condition of the MD deck when an error occurs, then issues a three- or five-digit code and an error message on the display. If the code and message alternate, find them in the following table and perform the indicated countermeasure. Should the problem persist, consult your nearest Sony dealer. Three- or five- digit code/ MessageCause/Remedy C11/ProtectedThe inserted MD is record-protected. ,Take out the MD and close the record- protect slot. C12/Cannot CopyYou tried to record a CD with a format that the external device connected to the deck does not support, such as CD-ROM or video CD. ,Remove the disc and insert a music CD. C13/REC ErrorThe recording was not made properly. ,Set the deck in a stable surface, and repeat the recording procedure. The inserted MD is dirty (with smudges, fingerprints, etc.), scratched, or substandard in quality. ,Replace the disc and repeat the recording procedure. C13/Read ErrorThe deck could not read the TOC on the MD properly. ,Take out the MD and insert it again.C14/Toc ErrorThe deck could not read the TOC on the MD properly. ,Insert another disc. ,If possible, erase all the tracks on the MD . C41/Cannot CopyThe sound source is a copy of commercially available music software, or you tried to record a CD-R (Recordable CD). ,The Serial Copy Management System prevents making a digital copy . You cannot record a CD-R. C71/Din UnlockThe sporadic appearance of this message is caused by the digital signal being recorded. This will not affect the recording. While recording from a digital component connected through the DIGITAL IN connector, the digital connecting cable was unplugged or the digital component turned off. ,Connect the cable or turn the digital component back on. E0001/ MEMORY NGThere is an error in the internal data that the deck needs in order to operate. ,Consult your nearest Sony dealer. E0101/ LASER NGThere is a problem with the optical pickup. ,The optical pick-up may have failed. Consult your nearest Sony dealer. Three- or five- digit code/ MessageCause/Remedy Genera l Power requirements European model: 230 V AC, 50/60Hz Other models: 110 – 120/220 – 240 V AC, 50/60Hz Adjustable with voltage selector Power consumption 15 W (0.5 W in standby mode) Dimensions (approx.) 430 95 285 mm (w/h/d) incl. projecting parts and controls Mass (approx.) 3.1 kg Suppli e d accessorie s Audio connecting cords (2) Optical cable (1) Remote commander (remote) (1) R6 (size-AA) batteries (2) XX
Page 2
3 MDS-JE770 ITEMS OF ERROR HISTORY MODE ITEMS AND CONTENTS Selecting the Test Mode Display op rec tm op play tm spdl rp tm retry err total err err history retry adrs er refresh tm change op changeHistory Displays the total recording time. When the total recording time is more than 1 minute, displays the hour and minute When less than 1 minute, displays Under 1 min The display time is the time the laser is set to high power, which is about 1/4 of the actual recording time. Displays the total playback time. When the total playback time is more than 1 minute, displays the hour and minute When less than 1 minute, displays Under 1 min Displays the total rotating time of the spindle motor. When the total rotating time is more than 1 minute, displays the hour and minute When less than 1 minute, displays Under 1 min Displays the total number of retry errors during recording and playback Displays r xx p yy. xx is the number of errors during recording. yy is the number of errors during playback. This is displayed in hexadecimal from 00 to FF. Displays the total number of errors Displays total xx. This is displayed in hexadecimal from 00 to FF. Displays the past ten errors. Displays 0x ErrCd@@. X is the history number. The younger the number, the more recent is the history (00 is the latest). @@ is the error code. Select the error history number using the lAMSL knob. Displays the past five retry addresses. Displays xx ADRS yyyy, xx is the history number, yyyy is the cluster with the retry error. Select the error history number using the lAMSL knob. Mode for erasing the error and retry address histories Procedure 1. Press the lAMSL knob when displayed as er refresh. 2. Press the YES button when the display changes to er refresh?. When complete! is displayed, it means erasure has completed. Be sure to check the following after executing this mode. *Data has been erased. *Perform recording and playback, and check that the mechanism is normal. Mode for erasing the total time of recording and playback Procedure 1. Press the lAMSL knob when displayed as tm refresh. 2. Press the YES button when the display changes to tm refresh?. When complete! is displayed, it means erasure has completed. Mode for erasing the total time of op rec tm, op play tm. These histories are based on the time of replacement of the optical pickup. If the optical pick-up has been replaced, perform this procedure and erase the history. Procedure 1. Press the lAMSL knob when displayed as op change. 2. Press the YES button when the display changes to op change?. When Complete! is displayed, it means erasure has completed. 1. While pressing the lAMSL knob and x button, connect the power plug to the outlet, and release the lAMSL knob and x button. When the test mode is set, [Check] will be displayed. 2. Rotate the lAMSL knob and when [Service] is displayed, press the YES button. 3. Rotate the lAMSL knob and display Err Display. 4. Pressing the YES button sets the error history mode and displays op rec tm. 5. Select the contents to be displayed or executed using the lAMSL knob. 6. Pressing the lAMSL knob will display or execute the contents selected. 7. Pressing the lAMSL knob another time returns to step 4. 8. Pressing the MENU/NO button displays Err Display and exits the error history mode. 9. To exit the test mode, press the REPEAT button. The unit sets into the STANDBY state, the disc is ejected, and the test mode ends.
