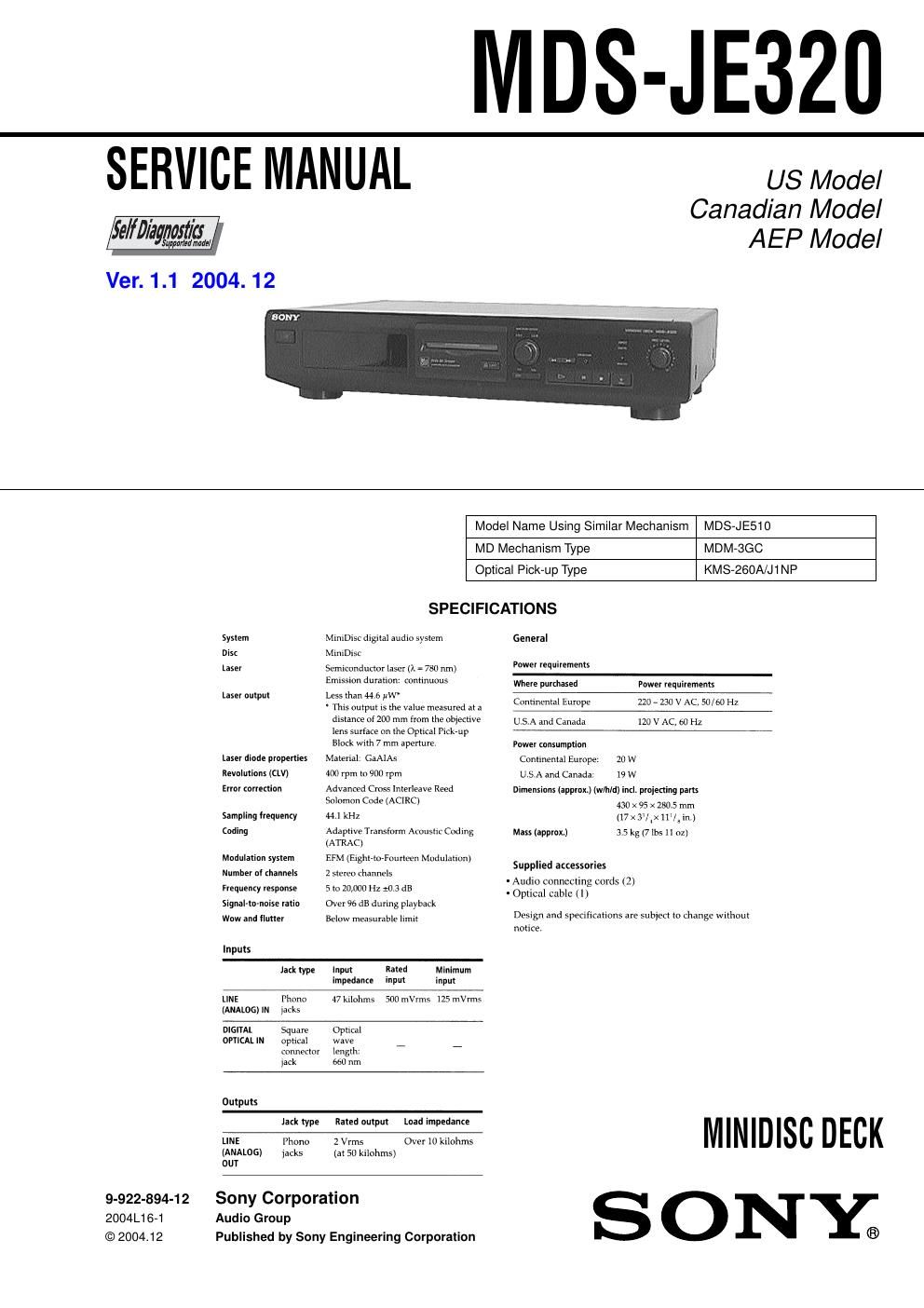

Sony mds je 320 service manual
This is the 58 pages manual for sony mds je 320 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mds je 320 service manual (Ocr-read)
Page 1
Ñ 2 Ñ CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufactureÕs instructions. ADVARSEL! Lithiumbatteri - Eksplosionsfare ved fejlagtig hŒndtering. Udskiftning mŒ kun ske med batteri af samme fabrikat og type. LevŽr det brugte batteri tilbage til leverand¿ren. ADVARSEL Eksplosjonsfare ved feilakting skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier katterier kasseres i henhold til fabrikantens VARNIG Explosionsfara vid felaktigt batteribyte. AnvŠnd samma batterityp eller en likvŠrdig typ som rekommenderas av apparattillverkaren. Kassera anvŠnt batteri enligt gŠllande fšreakrifter. VAROITUS Parist voi rŠjŠhtŠŠ, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. HŠvitŠ kŠytetty paristo valmistajan ohjeiden mukaisesti. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing ¥ Keep the temperature of soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. This caution label is located inside the unit. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ!! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY. SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Page 2
Ñ 3 Ñ SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Parts No. 4-990-651-1 4-990-651-4 4-990-651-5 Model US model Canadian model AEP model TABLE OF CONTENTS 1. SERVICING NOTE .......................................................... 5 2. GENERAL .......................................................................... 8 3. DISASSEMBLY 3-1. Case and Front Panel Assembly ...................................... 9 3-2. Bracket (T), (L) and (R) .................................................. 9 3-3. BD Board ...................................................................... 10 3-4. SUB Chassis ................................................................. 10 3-5. Shutter Assembly .......................................................... 11 3-6. Over Write Head ........................................................... 11 3-7. Slider Complete Assembly ............................................ 12 4. TEST MODE ..................................................................... 13 5. ELECTRICAL ADJUSTMENTS ............................... 16 6. DIAGRAMS 6-1. Brock Diagrams ¥ BD Section ....................................................................... 21 ¥ Main Section .................................................................... 23 6-2. Circuit Boards Location ................................................ 25 6-3. Printed Wiring Board Ñ BD Section Ñ ...................... 27 6-4. Schematic Diagram Ñ BD Section (1/2) Ñ ................ 29 6-5. Schematic Diagram Ñ BD Section (2/2) Ñ ................ 31 6-6. Printed Wiring Board Ñ Main Section Ñ .................... 33 6-7. Schematic Diagram Ñ Main Section (1/3) Ñ .............. 35 6-8. Schematic Diagram Ñ Main Section (2/3) Ñ .............. 37 6-9. Schematic Diagram Ñ Main Section (3/3) Ñ .............. 39 6-10. Printed Wiring Board Ñ Display Section Ñ .............. 41 6-11. Schematic Diagram Ñ Display Section Ñ ................ 43 6-12. Printed Wiring Board Ñ Switch Section Ñ ............... 45 6-13. Schematic Diagram Ñ Switch Section Ñ .................. 47 6-14. IC Brock Diagrams Ñ BD SectionÑ ......................... 49 6-15. IC Pin Functions ......................................................... 54 7. EXPLODED VIEWS 7-1. Main Section ................................................................. 63 7-2. Front Panel Section ....................................................... 64 7-3. Mechanism Deck Section (1) (MDM-3GC) ................. 65 7-4. Mechanism Deck Section (2) (MDM-3GC) ................. 66 8. ELECTRICAL PARTS LIST ........................................ 67 MODEL IDENTIFICATION Ñ BACK PANEL Ñ Parts No. To Exposed Metal Parts on Set 0.15 µF 1.5 k ½ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage.
