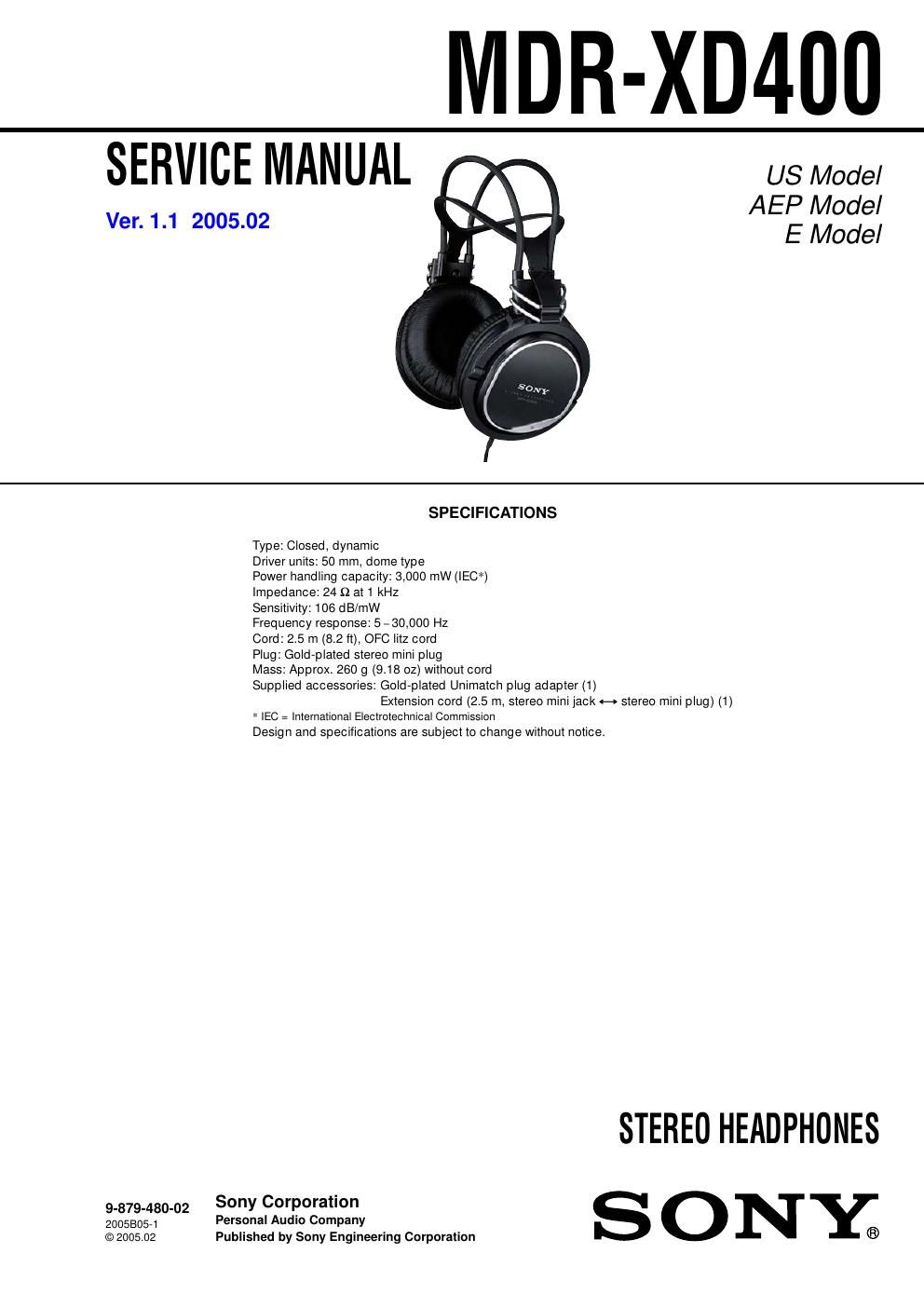

Sony mdr xd 400 service manual
This is the 6 pages manual for sony mdr xd 400 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr xd 400 service manual (Ocr-read)
Page 1
MDR-XD400 2 Note: Follow the disassembly procedure in the numerical order given. DRIVER (Lch/Rch) (For both left and right headphones, disassemble through the same procedure) SECTION 1 DISASSEMBLY 1 ear pad 2 four screws (B2.6) 3 Remove five solders of the head band cord and cord (with plug). 4 Rotate the driver (Lch/Rch) in the arrow direction to remove. 5 front plate assy cord (with plug) head band cord 3 Remove two solders of the head band cord. – DRIVER (Lch) – head band cord Connect a lead wire of the cord (with plug) (green) to the terminal with a marking. (The location of a marking may differ from the illustration.) Connect a lead wire of the head band cord (red) to the terminal with a marking. (The location of a marking may differ from the illustration.) – DRIVER (Rch) – Natural color lead wire connecting locations Natural color lead wire connecting locations Red color lead wire connecting locations
Page 2
3 MDR-XD400 SECTION 2 EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 12-320-280-01 PAD, EAR 33-254-151-01 SCREW (B2.6), (+) P TAPPING 42-342-965-01 SEAL, FLAP 52-320-283-01 FLAP 6X-2055-796-1 PLATE (R) ASSY, FRONT 72-342-964-01 LINK (R), FLAP 82-515-566-01 SCREEN 92-342-962-01 SPRING, FLAP 10 1-542-605-11 DRIVER (050F032) (Lch/Rch) 11 2-320-275-01 HOUSING (R)12 2-342-961-01 CAP (R), HOUSING 13 2-320-281-01 KNOB 14 2-320-277-01 RING (R), ORNAMENTAL 15 X-2055-795-1 PLATE (L) ASSY, FRONT 16 2-342-963-01 LINK (L), FLAP 17 2-320-274-01 HOUSING (L) 18 2-320-267-01 BUSHING 19 1-829-886-11 CORD (WITH PLUG) 20 2-342-960-01 CAP (L), HOUSING 21 2-320-276-01 RING (L), ORNAMENTAL 2-1. HOUSING SECTION -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. -The mechanical parts with no reference number in the exploded views are not supplied. -Accessories are given in the last of the parts list. NOTE: --XX and -X mean standardized parts, so they may have some difference from the original one. -Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color 1 head band section 1 12 13 13 3 3 14 4 4 15 5 5 16 6 17 7 18 8 8 19 9 9 20 10 10 21 11
